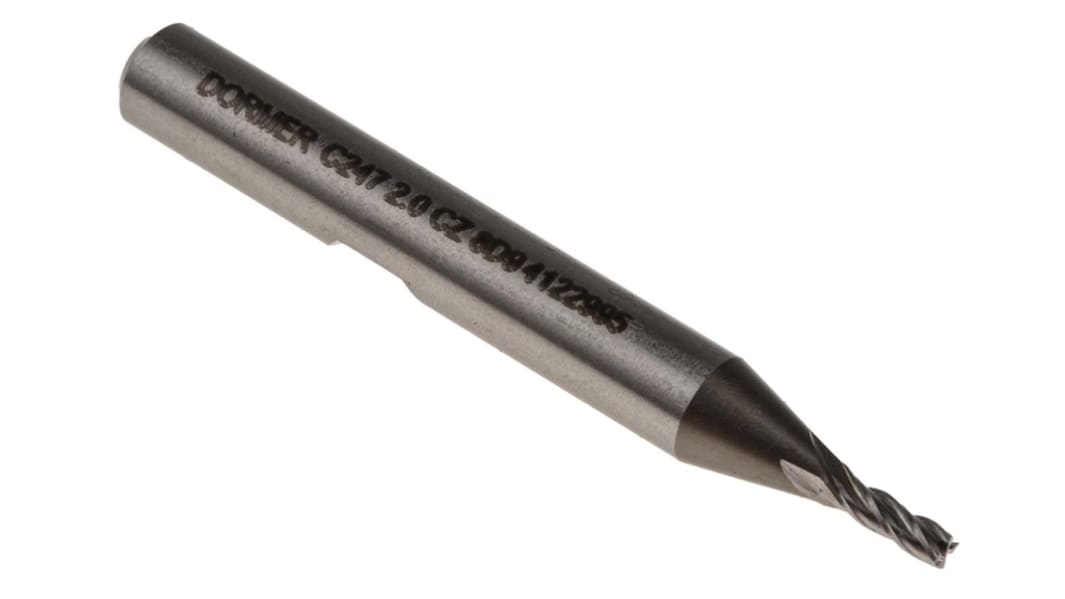

Dormer 51 mm HSCo End Mill, 7mm Cut Length, 2mm Cut Diameter, 4 Flutes

  • RS Stock No. 728-7829
  • Mfr. Part No. C2472.0
  • Manufacturer Dormer
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

HSCo-XP Flatted Shank End Mill, Standard Length (C247)

HSCo-XP flatted shank end mill for machining profiles and steps, as well as finishing operations in most materials.

Manufactured from Powder Metallurgy Cobalt Steel for increased wear resistance and tool life
Superior edge strength and rigidity resulting in improved surface finish and slot consistency
Manufactured to DIN 844K standards

Specifications
Attribute Value
Cutter Diameter 2mm
Cut Length 7mm
Number of Flutes 4
Material HSCo
Overall Length 51 mm
Shank Type Weldon
Shank Diameter 6 mm
Centre Cutting Yes
Diameter Tolerance K10
1 : Next working day (AU stock)
3 : 5 working days (Global stock)
Price (ex. GST) Each
$ 41.45
(exc. GST)
$ 45.59
(inc. GST)
units
Per unit
1 +
$41.45
