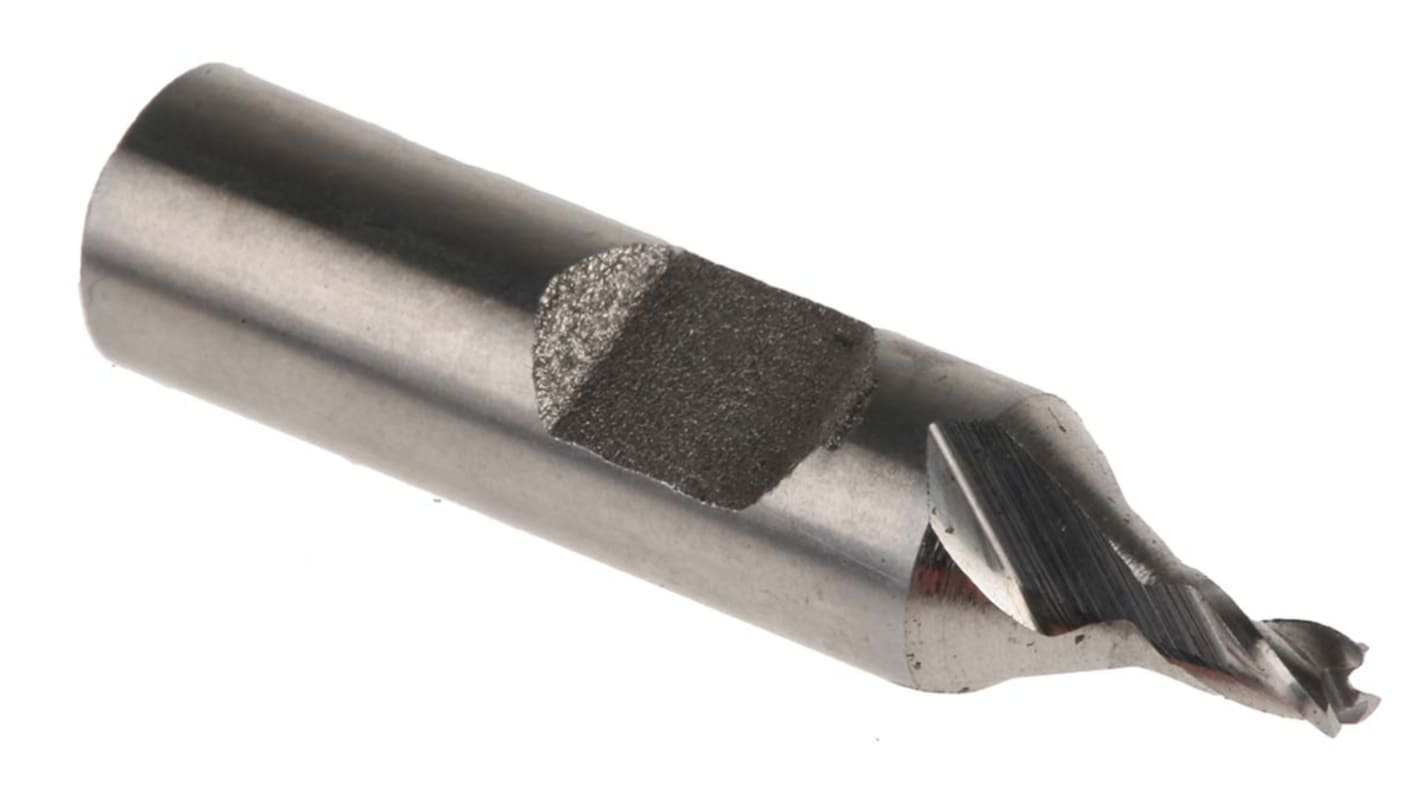

RS PRO 25.5 mm HSCo End Mill, 3mm Cut Length, 2mm Cut Diameter, 3 Flutes

  • RS Stock No. 523-0458
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): CN
Product Details

Standard Length FC3 Milling Cutters

A range of standard length and long series Clarkson Osborn FC3 throw-away milling cutters.

Manufactured from High Speed Cobalt steel (HSSE) and intended for use in Clarkson FC3 Holders and adaptors

Specifications
Attribute Value
Cutter Diameter 2mm
Cut Length 3mm
Number of Flutes 3
Material HSCo
Overall Length 25.5 mm
Shank Type Weldon
Shank Diameter 6 mm
48 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 16.99
(exc. GST)
$ 18.69
(inc. GST)
units
Per unit
1 +
$16.99
