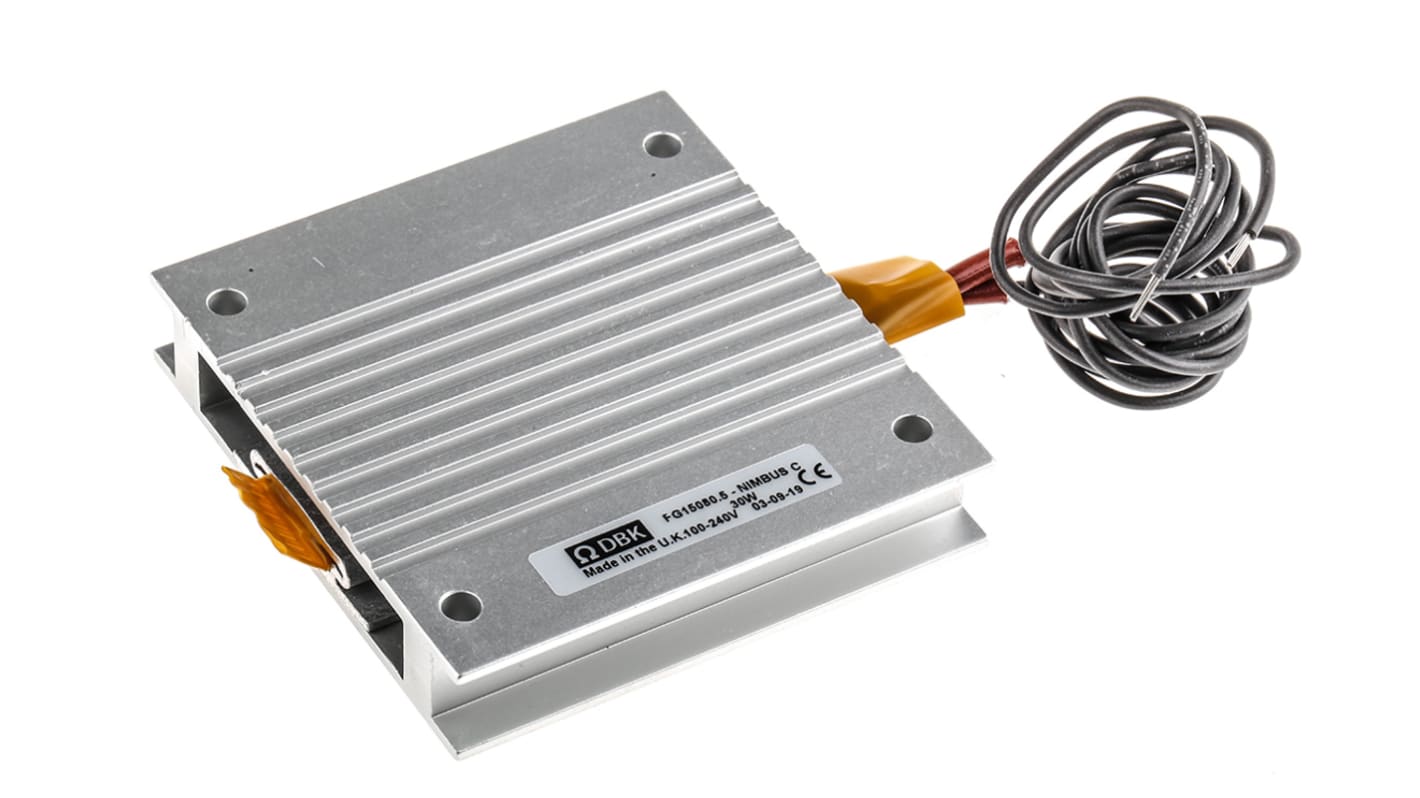

DBK Enclosures Enclosure Heater, 100 → 240V ac, 30W Output, 75mm x 80mm x 15mm
- RS Stock No.:
- 344-3696
- Mfr. Part No.:
- FG15080.5
- Brand:
- DBK Enclosures
59 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$70.52
(exc. GST)
$77.57
(inc. GST)
| Units | Per unit |
| 1 - 24 | $70.52 |
| 25 - 49 | $69.32 |
| 50 - 99 | $67.04 |
| 100 + | $64.53 |
- RS Stock No.:
- 344-3696
- Mfr. Part No.:
- FG15080.5
- Brand:
- DBK Enclosures
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Conduction/Convection
'Self-regulating' PTC cabinet heater, offers a wide range of power outputs from a single, compact footprint size
Can be operated without the aid of a thermostat/overload
Heater operating voltage range 100-240Vac/dc
Type 3a DIN (EN50022) rail mounting with clip supplied (344-3646,344-3652, and 344-3674)
Type 3b base/surface mounting (344-3680,344-3696,344-3703 and 344-3719)
Can be operated without the aid of a thermostat/overload
Heater operating voltage range 100-240Vac/dc
Type 3a DIN (EN50022) rail mounting with clip supplied (344-3646,344-3652, and 344-3674)
Type 3b base/surface mounting (344-3680,344-3696,344-3703 and 344-3719)
Approvals
VDE, UL, CSA
Specifications
Attribute | Value |
|---|---|
| Output Power | 30W |
| Supply Voltage | 100 → 240V ac |
| Depth | 15mm |
| Height | 75mm |
| Width | 80mm |
