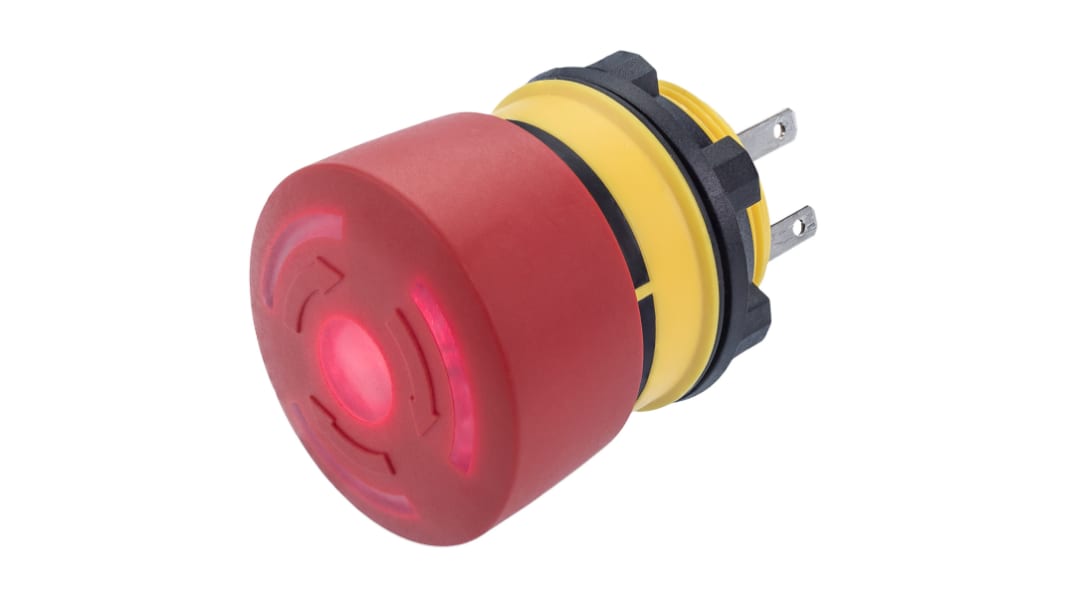

E-Stop Pushbutton, 2NC, illuminated LED

  • RS Stock No. 194-2036
  • Mfr. Part No. 84-5241.2B20
  • Manufacturer EAO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Industrial or process automation equipment
Machinery, in particular for handheld control units
Robotics
Material handling and lifting platforms
Medical devices
Robust mono-block with a foolproof and fail-safe design
Very low back panel depth
Attractive, modern design
Reliable and long service life
Clearly visible illumination
Mounting cut-out: 22.3 mm
Plug-in (2.8 mm x 0.5 mm) and 300 mm flat ribbon cable connection
Switch rating max. 250 V, max. 3 A

Specifications
Attribute Value
Mounting Type Panel Mount
Normal State Configuration 2NC
Cutout Diameter 22.3mm
Supply Current 1.5 A
Pole and Throw Configuration SPST
IP Rating IP65, IP67
Supply Voltage 240 V ac
Head Style Round
Illuminated Yes
Range Compact
Head Diameter 32mm
Push Button Material Plastic
Colour Black
Width 32 Dia.mm
Depth 26mm
Dimensions 32 Dia. x 26 mm
Series 84
4 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
Was $105.24
$ 91.21
(exc. GST)
$ 100.33
(inc. GST)
units
Per unit
1 +
$91.21
