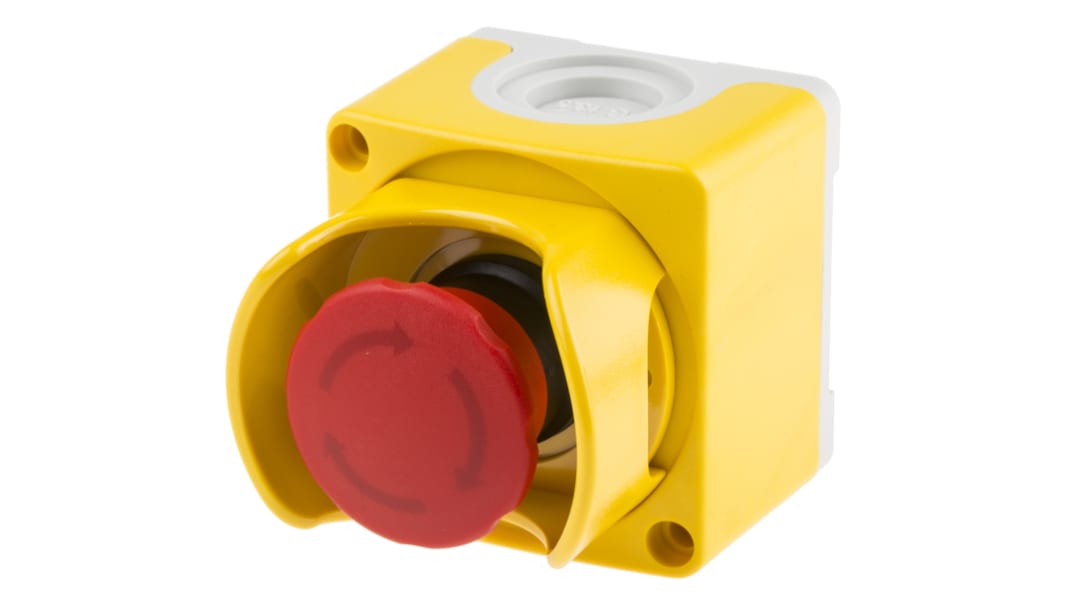

ABB Compact, Red/Yellow/Grey, Twist to Reset 40mm Mushroom Head Emergency Button

  • RS Stock No. 185-609
  • Mfr. Part No. CEPY1-2001
  • Manufacturer ABB
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): SE
Product Details

Emergency stop switch housing and combinations

Choosing the right Emergency Stop Device is vital in order to increase the safety for operators and equipment.
The range is very impressive, which fulfil the IEC 60947-5-5 standards for Emergency Stop Devices.
The Head Emergency Buttons can be used in the following areas:
•Food and Beverage
•Pharmaceutical Industry
•Rail and Transport Industry
•Automotive Industry
•Mining and Quarrying Industry
•Factory Automation Industry
The range has an IP67 and IP69K standards, which means:
•IP67 (rated as "dust tight" and protected against immersion)
•IP69K (rated as ’’complete assurance ’’provides the highest protection rating on the scale)

This CEPY1-2001 is engineered for total reliability. This unit was tested to extremes and proven in the toughest environments.
The protection degree of up to IP69K and 4X, guaranteeing reliability in extreme climate.
The installation process is easy and quick, which is essential for last-minute changes.
Has a high AC15 electrical ratings 6 A at 230 V and impressive resistance to water intrusion ranked under IP66.

Frequently asked questions & answers

What is the different between a push button switch for an emergency stop and a general-purpose push button switch? A general-purpose push button switch is used for controls, e.g. to start machine operation or simply to switch modes. An emergency stop push button switch however, is mainly used as a safety measure to stop hazardous events.

ABB 22.5mm Compact Range

A comprehensive range of components for the user who wants a reliable and cost-effective solution to meet their needs.

Specifications
Attribute Value
Mounting Type Surface Mount
Reset Method Twist to Reset
Normal State Configuration 2NC
Supply Current 1.5 (ac) A, 320 (dc) mA
Auxiliary Contacts No
Pole and Throw Configuration DPST
IP Rating IP66, IP67, IP69K
Supply Voltage 125 V dc, 240 V ac
Head Style Mushroom
Illuminated No
Range Compact
Head Diameter 40mm
Depth 60.5mm
Dimensions 101 x 74.4 x 60.5 mm
Housing Material Plastic
Length 101mm
Series 1SFA
Push Button Material Plastic
Colour Red/Yellow/Grey
Width 74.6mm
13 : Next working day (AU stock)
88 : 5 working days (Global stock)
Price (ex. GST) Each
$ 104.28
(exc. GST)
$ 114.71
(inc. GST)
units
Per unit
1 +
$104.28
