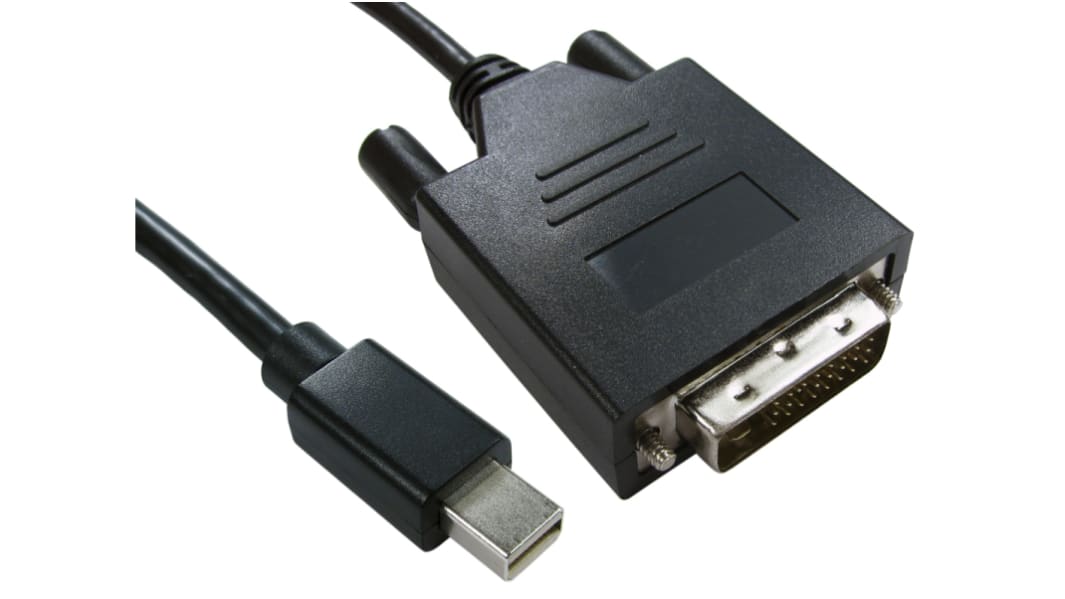

1mtr Mini Display Port M - DVI M Cable -

  • RS Stock No. 186-3047
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Mini Display port is simply a smaller version of the Display port, mini Display port is mainly used on MAC computers but other manufacturers may adopt this type of connector. The mini Display port to DVI adapter will allow you to connect a high definition monitor, Projector or LCD TV to a MacBook, MacBook Pro or a MacBook Air with a mini Display port connection.

Mini DisplayPort male to DVI-D male
Passive adapter
Supports mini DisplayPort 1.1a and DVI-D output
Single link
Supports DVI resolution of 1080p
Supports DVI 225Mhz/2.25Gbps per channel (6.75Gbps total)
Supports DVI 12-bit per channel (36-bit total) deep colour
Powered by DisplayPort

Specifications
Attribute Value
Cable Type DisplayPort to DVI-D
Connector A Gender Male
Connector A Type Mini DisplayPort
Connector B Gender Male
Connector B Type DVI-D
Length 1m
Maximum Resolution 4K
Outer Sheath Material PVC
Sheath Colour Black
Size of Strands 32 AWG
51 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 21.89
(exc. GST)
$ 24.08
(inc. GST)
units
Per unit
1 +
$21.89
