4D Systems MOTG MP3 Add-On Module for gen4 LCD Displays

  • RS Stock No. 136-9247
  • Mfr. Part No. MOTG-MP3
  • Manufacturer 4D Systems
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): AU
Product Details

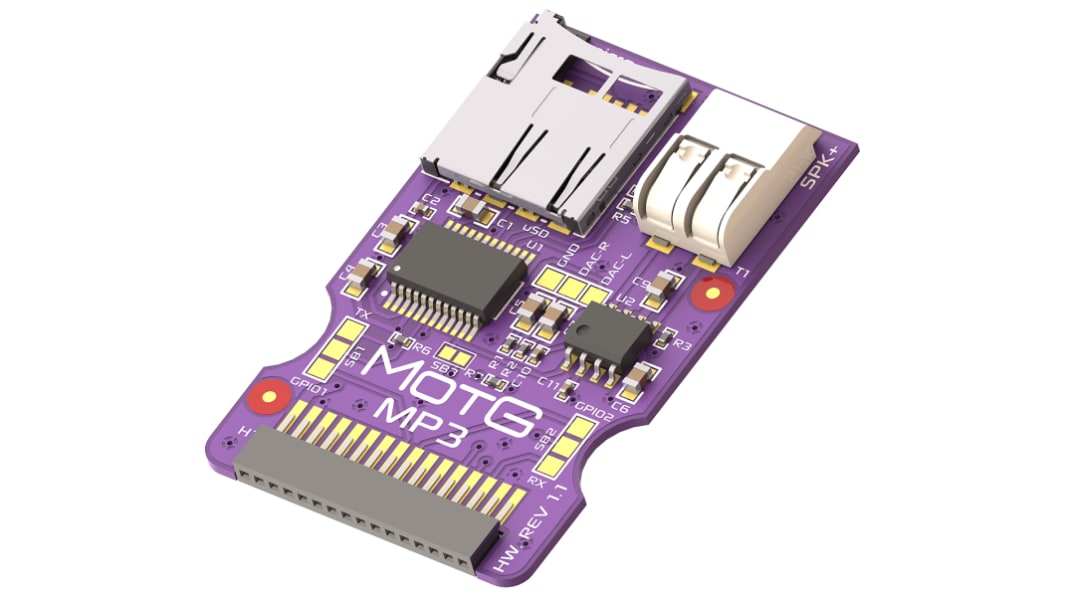

MOTG MP3 Audio Add-On Module

The 4D Systems MOTG (Modules on the Go) product family provides an innovative plug and play solution for adding key functionalities to 4D Systems gen4 LCD Display Modules.

Utilising a modular concept, the MOTG range provides a simple method for swift hardware expansion, allowing rapid design and maintenance of applications requiring a display. WiFi, Bluetooth, RS-232, RS-485 and enhanced audio can easily be added to an LCD display through simply plugging in the appropriate module into an installed MOTG interface board.

This MOTG MP3 Add-On Module provides a simple method of installing the required hardware to add audio capability to a gen4 LCD Module.

The module plays MP3 audio files, such as voice and music, from an inserted microSD card installed in the provided slot. The module can drive a 3W 3Ω external speaker, stereo headphones or connect to an external amplifier.

The MOTG MP3 Add-On Module utilises the 4D Systems SOMO-II (SOund MOdule 2) that integrates a dedicated 16-bit MCU for audio decoding.

Features

Adds audio capability to gen4 LCD Display Modules
Features the 4D Systems SOMO-II (SOund MOdule 2)
Supports bit rates 11172-3 & ISO1381303
Sample rates from 8 kHz to 48 kHz
24-bit DAC audio output
Mono amplified Speaker output
On-board micro-SD memory card connector
Supports 2-wire 3.3 V / 5 V TTL UART interface
5 V supply
Universal MOTG Interface (UMI) for plug and play functionality
Fits MOTG AC1, AC2 and AC3 Interface Boards
Compact – Fitment maintains slim module profile

Kit Contents

1 x MOTG MP3 Add-On Module

Note

A microSD card is not included.

4D Systems Display Accessories

Specifications
Attribute Value
For Use With Gen4 LCD Display Modules
Interface Type UART
Kit Contents MOTG MPQ Audio Add-On Module
Kit Name MOTG MP3 Add-On Module for gen4 LCD Displays
Series MOTG
71 In stock for delivery within 7 working day(s) (Global Stock)
Price (ex. GST) Each
$ 33.68
(exc. GST)
$ 37.05
(inc. GST)
units
Per unit
1 - 4
$33.68
5 - 9
$33.01
10 +
$31.51
