- RS Stock No.:
- 918-9972
- Mfr. Part No.:
- DBS 6104
- Brand:
- KNITTER-SWITCH
220 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Tube of 44)
$2.04
(exc. GST)
$2.24
(inc. GST)
Units | Per unit | Per Tube* |
44 - 44 | $2.04 | $89.76 |
88 - 176 | $1.979 | $87.076 |
220 - 396 | $1.918 | $84.392 |
440 - 836 | $1.877 | $82.588 |
880 + | $1.836 | $80.784 |
*price indicative |
- RS Stock No.:
- 918-9972
- Mfr. Part No.:
- DBS 6104
- Brand:
- KNITTER-SWITCH
Technical data sheets
Legislation and Compliance
Product Details

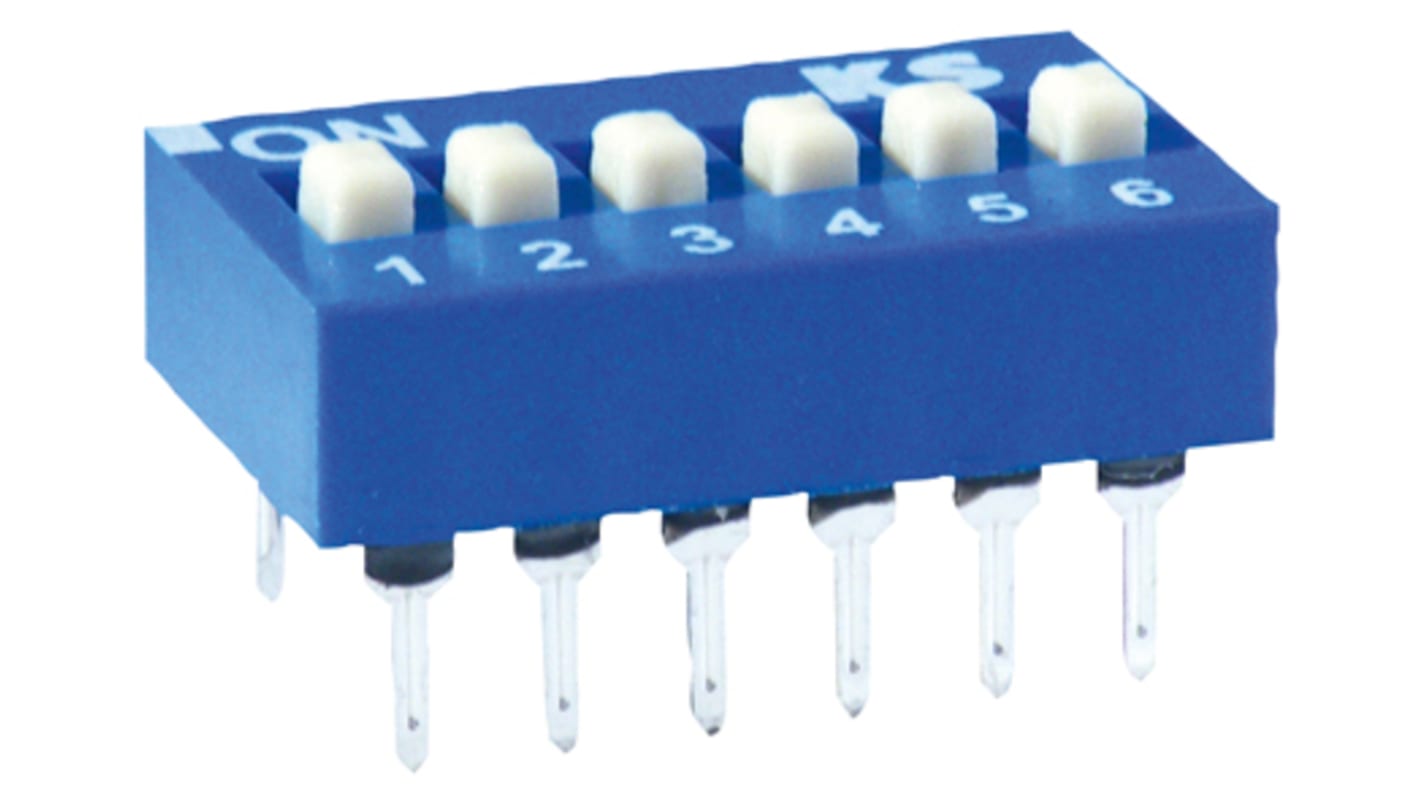

Knitter Switch DBS 61xx Series DIP Switches
The DBS 61xx series has been designed for PCB through-hole mounting with various contact configurations available. The raised actuators are mounted on top of the body and operated with a horizontal sliding motion.
With a wide operating temperature range and a high mechanical life cycle they can be used in a variety of applications.
With a wide operating temperature range and a high mechanical life cycle they can be used in a variety of applications.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Number of Positions | 4 |
Mounting Type | PCB |
Contact Material | Gold over Nickel Plated |
Contact Configuration | 4PST |
Package Style | DIP |
Actuator Type | Raised |
Contact Current Rating | 100 (Non-Switching) mA, 25 (Switching) mA |
Mechanical Life | 5000Operations |
Maximum Operating Temperature | +85°C |
Minimum Operating Temperature | -40°C |
Operating Temperature Range | -40 → +85°C |
Voltage Rating | 24 V dc, 50V dc |
Dielectric Strength | 500V dc |
