16 Way Surface Mount Rotary Switch, Rotary Coded Actuator

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

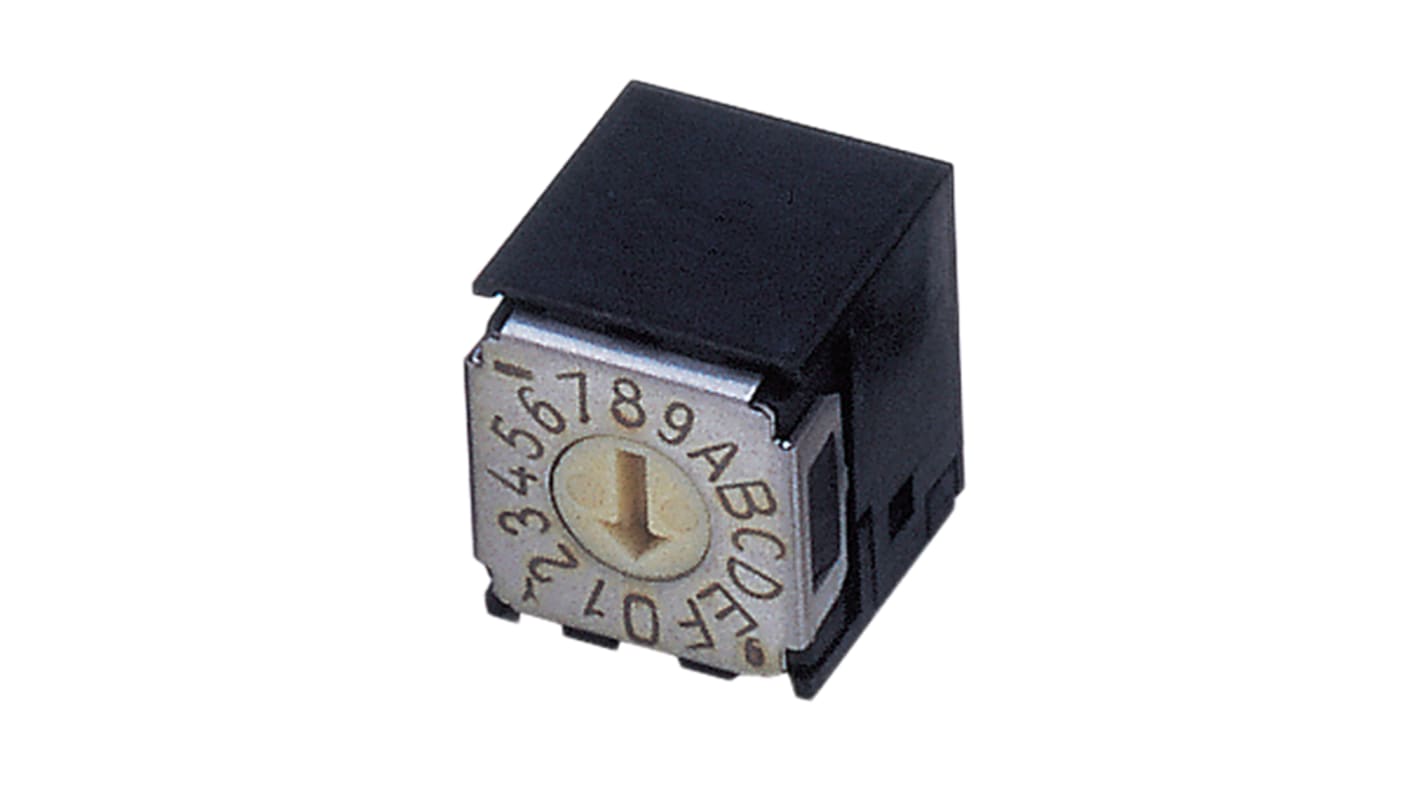

Copal SA-7000 Series Rotary Coded Switches (SMD)

The SA-700 series offers a wide variety of options to choose from. These include top or side setting, 10 or 16 positions and J-hook or gull wing mounting.

Surface mount type
Low profile of 3.omm
Easy to recognise
Lead-free soldering

Dual-In-Line Switches

Sub-miniature switches in a choice of configurations and actions. Note that these switches are not suitable for immersion cleaning unless stated otherwise.

Specifications
Attribute Value
Contact Current Rating 100 mA @ 5 V dc
Contact Material Copper Alloy
Number of Positions 16
Mounting Type Surface Mount
Actuator Type Rotary Coded
Maximum Operating Temperature +85°C
Minimum Operating Temperature -40°C
Operating Temperature Range -40 → +85°C
Dielectric Strength 250V ac
Voltage Rating 5V dc
390 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each (In a Bag of 10)
$ 5.033
(exc. GST)
$ 5.536
(inc. GST)
units
Per unit
Per Bag*
10 - 40
$5.033
$50.33
50 - 190
$4.617
$46.17
200 - 490
$4.402
$44.02
500 - 1990
$4.154
$41.54
2000 +
$4.01
$40.10
*price indicative
