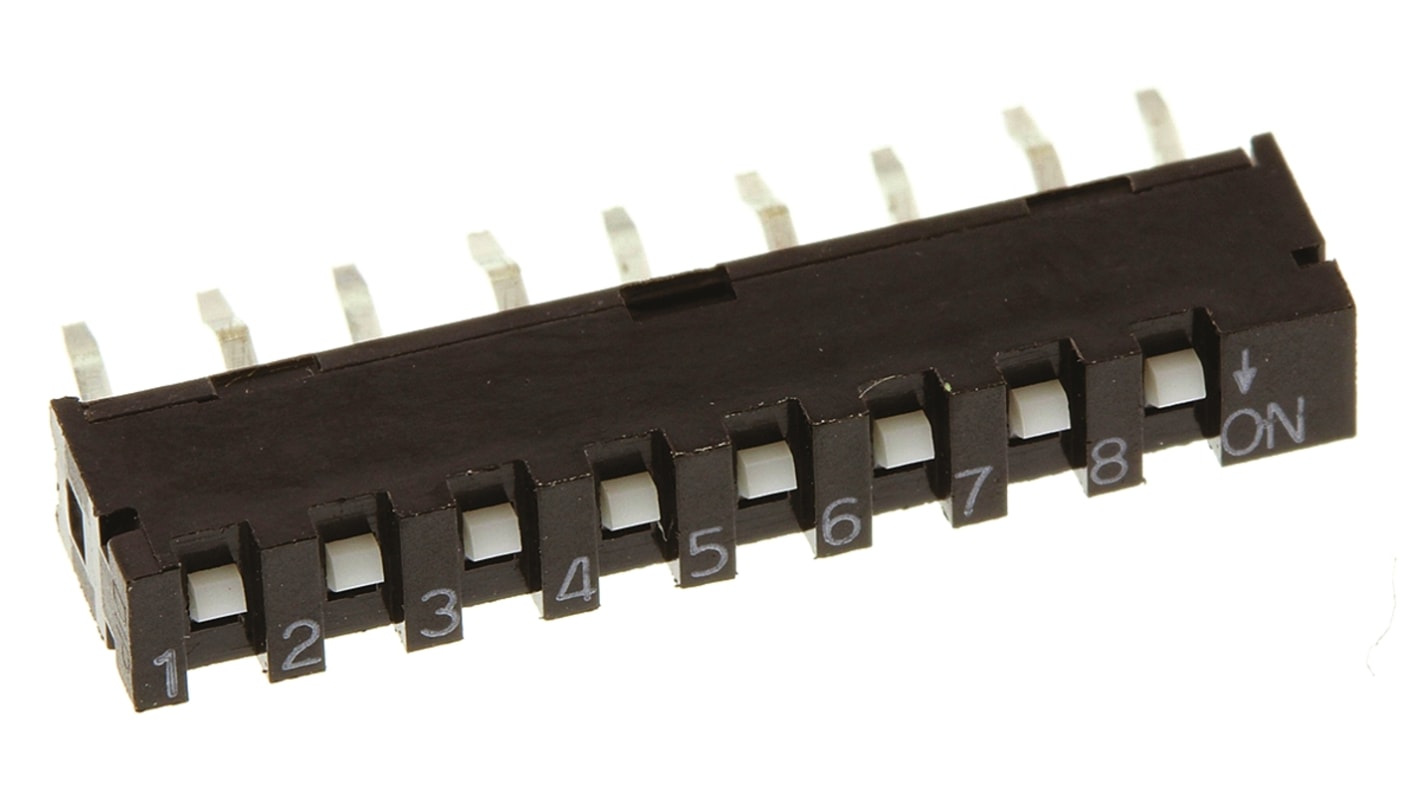

8 Way PCB SIP Switch SPST

  • RS Stock No. 877-2384
  • Mfr. Part No. SIP-08TV
  • Manufacturer APEM
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

APEM SIP Series,Straight,Single in Line

Operation force 800gf
Non switching rating 100mA 50Vdc
Switching rating 10mA,5Vdc
RoHS & Lead free solderable

Specifications
Attribute Value
Contact Configuration SPST
Contact Current Rating 10 (Switching) mA @ 5 V dc, 100 (Non-Switching) mA @ 50 Vdc
Number of Positions 8
Mounting Type PCB
Actuator Type Slide
Package Style SIP
Maximum Operating Temperature +80°C
Minimum Operating Temperature -30°C
Operating Temperature Range -30 → +80°C
Voltage Rating 5 V dc, 50 V dc
1200 In stock for delivery within 5 working day(s)
Price (ex. GST) Each (In a Tube of 20)
$ 1.736
(exc. GST)
$ 1.91
(inc. GST)
units
Per unit
Per Tube*
20 - 2780
$1.736
$34.72
2800 - 5580
$1.723
$34.46
5600 - 9980
$1.697
$33.94
10000 - 19980
$1.648
$32.96
20000 +
$1.606
$32.12
*price indicative
