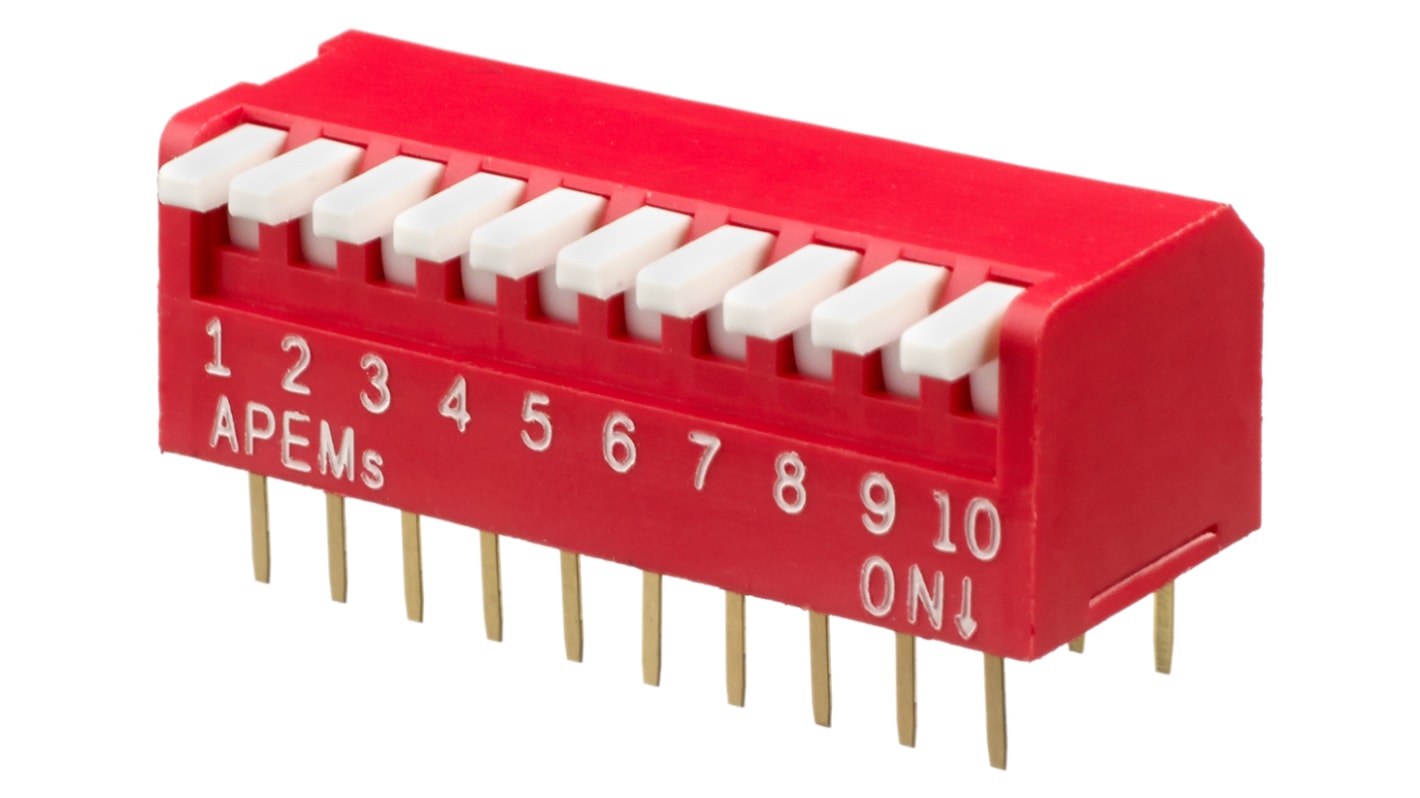

10 Way Through Hole Piano Dip Switch SPST, Piano Actuator

  • RS Stock No. 877-2356
  • Mfr. Part No. DPL10V
  • Manufacturer Apem
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

DP/DPL Series Piano DIP Switches

A range of PCB SPST DIP switches. DP series have short keys and DPL are the long key type

Upto 10 way
Operation force 400gf max
2mm Stroke
25mA 24Vdc, switching rating
100mA 50Vdc, non switching rating

Note

RoHS & lead free solderable

Specifications
Attribute Value
Contact Configuration SPST
Contact Current Rating 25 mA
Contact Material Phosphor Bronze
Number of Positions 10
Mounting Type Through Hole
Actuator Type Piano
Package Style DIP
Maximum Operating Temperature +70°C
Minimum Operating Temperature -20°C
Operating Temperature Range -20 → +70°C
Voltage Rating 24V dc
Dielectric Strength 500V dc
442 In stock for delivery within 5 working day(s)
Price (ex. GST) Each (In a Tube of 17)
$ 1.174
(exc. GST)
$ 1.291
(inc. GST)
units
Per unit
Per Tube*
17 - 1717
$1.174
$19.958
1734 - 5763
$1.156
$19.652
5780 - 10098
$1.139
$19.363
10115 - 14433
$1.112
$18.904
14450 +
$1.085
$18.445
*price indicative
