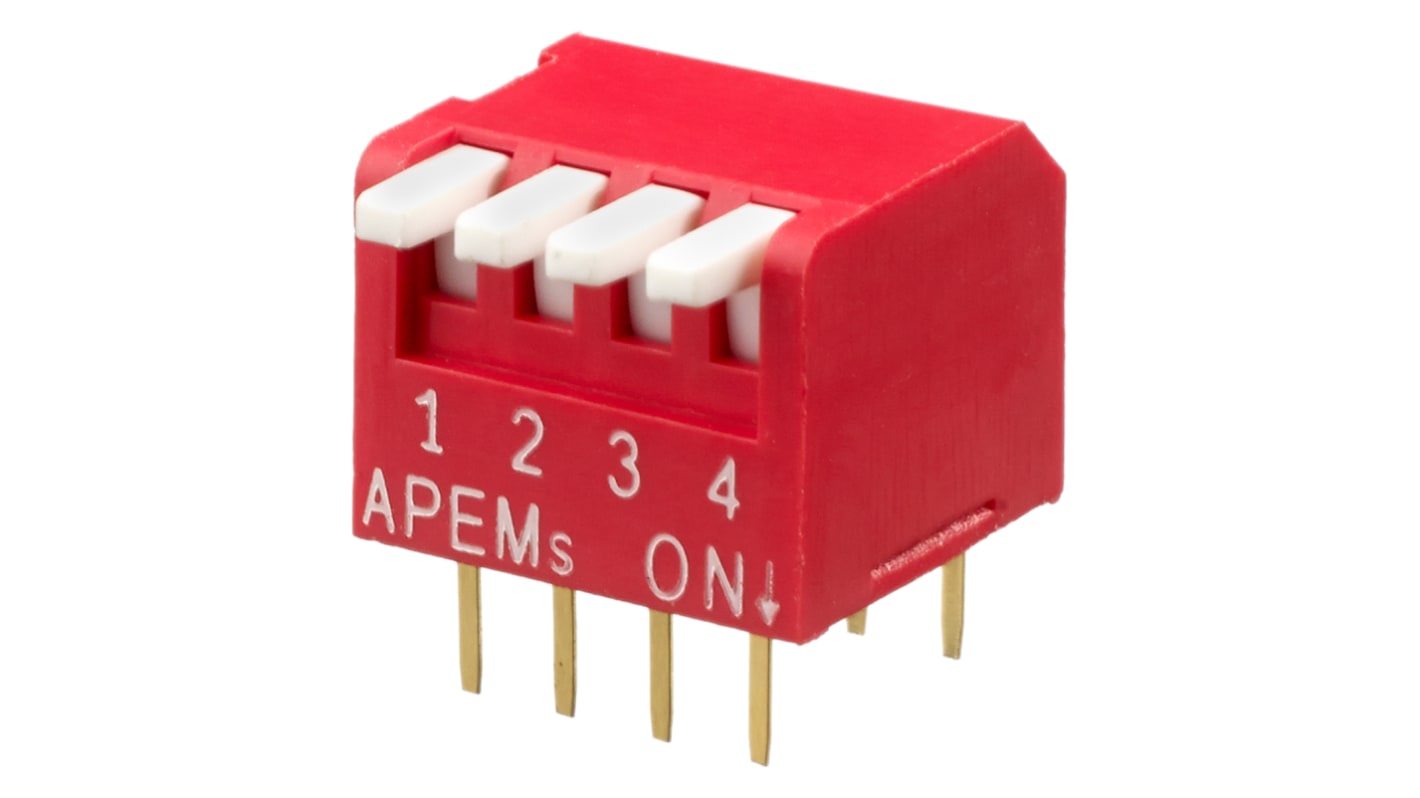

4 Way Through Hole Piano Dip Switch SPST, Piano Actuator

  • RS Stock No. 877-2343
  • Mfr. Part No. DPL04V
  • Manufacturer APEM
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

DP/DPL Series Piano DIP Switches

A range of PCB SPST DIP switches. DP series have short keys and DPL are the long key type

Upto 10 way
Operation force 400gf max
2mm Stroke
25mA 24Vdc, switching rating
100mA 50Vdc, non switching rating

Note

RoHS & lead free solderable

Specifications
Attribute Value
Contact Configuration SPST
Contact Current Rating 25 mA
Contact Material Phosphor Bronze
Number of Positions 4
Mounting Type Through Hole
Actuator Type Piano
Package Style DIP
Maximum Operating Temperature +70°C
Minimum Operating Temperature -20°C
Operating Temperature Range -20 → +70°C
Dielectric Strength 500V dc
Voltage Rating 24V dc
