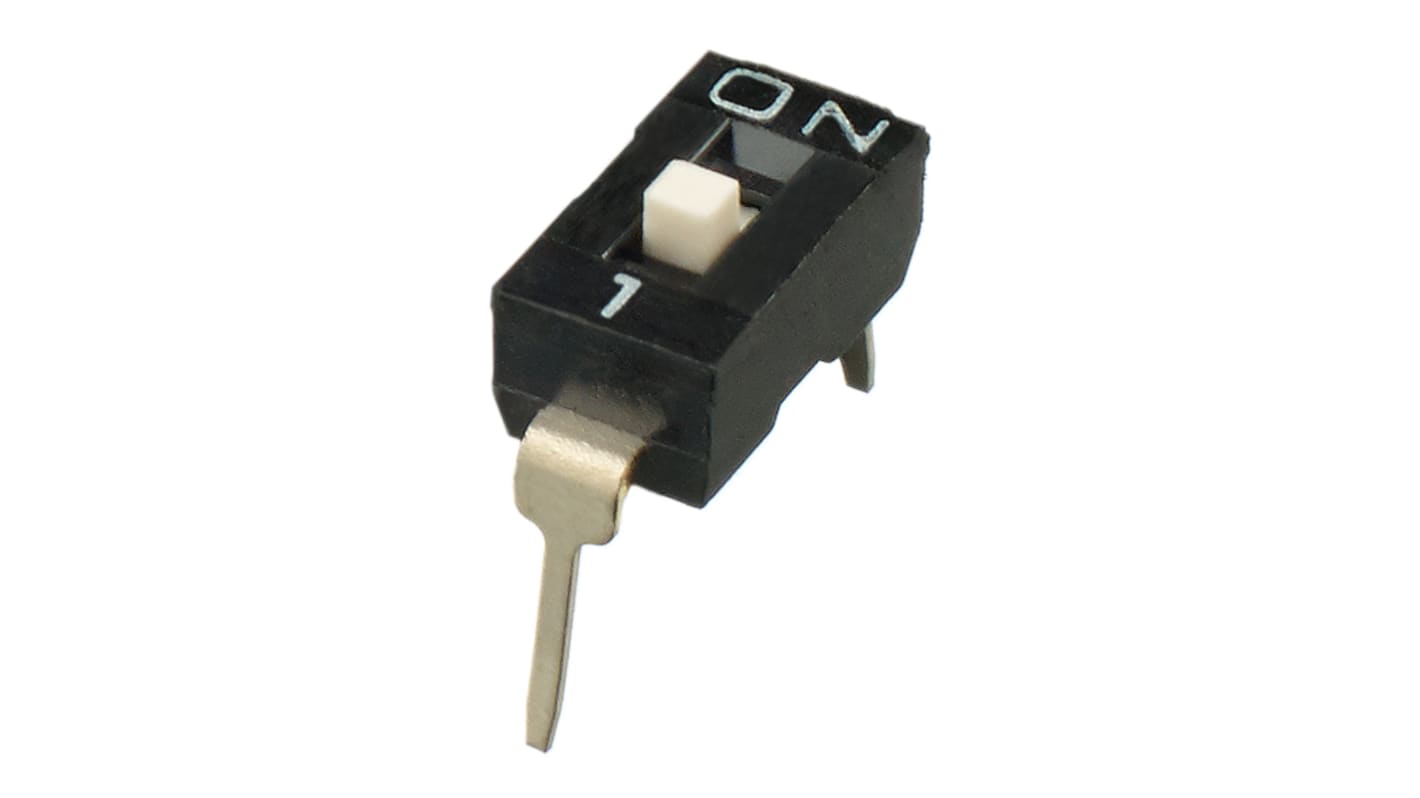

1 Way Through Hole DIP Switch SPST, Raised Actuator

  • RS Stock No. 877-2163
  • Mfr. Part No. IKD0100101
  • Manufacturer APEM
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Apem DIP Switch - IKD Series

The low profile IKD DIP switch is designed for reliable operation with positive detent action. Available 1 to 12 poles, surface mount or through hole mounting

Self cleaning wiping contacts
Gold plated terminals
SMT Gull wing or J bend
Process compatible IP reflow and wave solderable

Dual-In-Line Switches

Sub-miniature switches in a choice of configurations and actions. Note that these switches are not suitable for immersion cleaning unless stated otherwise.

Specifications
Attribute Value
Contact Configuration SPST
Contact Current Rating 25 (Switching) mA @ 24 V dc, 100 (Non-Switching) mA @ 50 Vdc
Contact Material Phosphor Bronze (Moving Contact)
Number of Positions 1
Mounting Type Through Hole
Actuator Type Raised
Package Style DIP
Maximum Operating Temperature +85°C
Minimum Operating Temperature -20°C
Operating Temperature Range -20 → +85°C
Voltage Rating 24 V dc, 50 V dc
Dielectric Strength 500V ac
1430 In stock for delivery within 5 working day(s)
Price (ex. GST) Each (In a Tube of 130)
$ 0.569
(exc. GST)
$ 0.626
(inc. GST)
units
Per unit
Per Tube*
130 - 84370
$0.569
$73.97
84500 - 168870
$0.559
$72.67
169000 - 253370
$0.549
$71.37
253500 - 337870
$0.538
$69.94
338000 +
$0.525
$68.25
*price indicative
