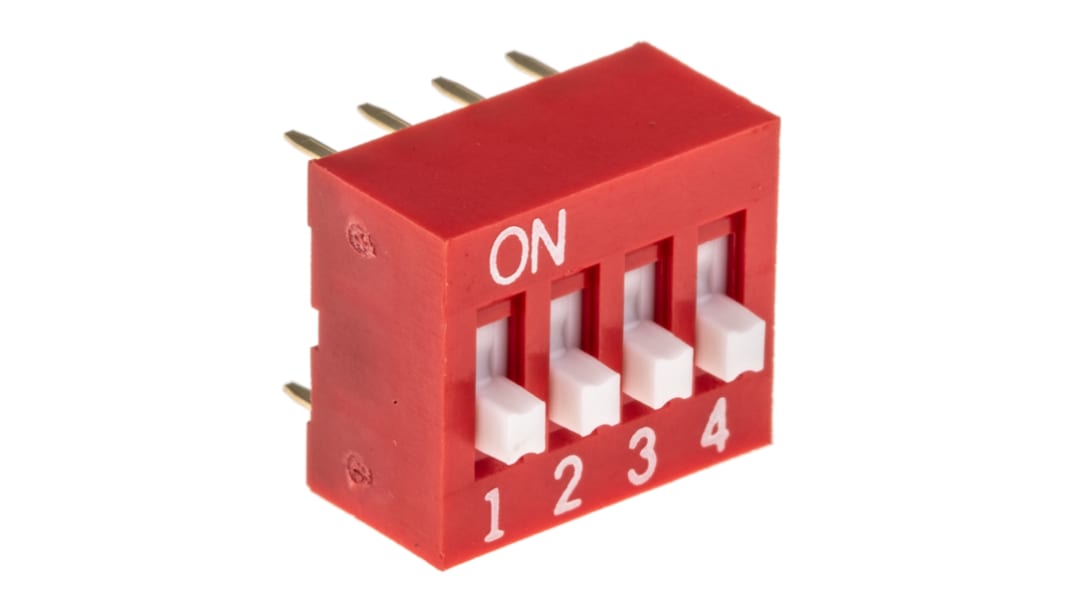

4 Way Through Hole DIP Switch SPST, Raised Actuator

  • RS Stock No. 877-2126
  • Mfr. Part No. NDS-04-V
  • Manufacturer APEM
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Apem DIP Switch – NDS Series

The NDS series are SPST through-hole switches with a raised actuator and they are available in an array of positions. Applications include telecom, computers, test equipment, security and instrumentation

Operation force 10N max
2mm Stroke
25mA 24Vdc, switching rating
100mA 50Vdc, non switching rating

Specifications
Attribute Value
Contact Configuration SPST
Contact Current Rating 25 mA
Contact Material Phosphor Bronze
Number of Positions 4
Mounting Type Through Hole
Actuator Type Raised
Package Style DIP
Maximum Operating Temperature +85°C
Minimum Operating Temperature -40°C
Operating Temperature Range -40 → +85°C
Voltage Rating 24V dc
Dielectric Strength 500V dc
120 : Next working day (AU stock)
17800 : 5 working days (Global stock)
Price (ex. GST) Each (In a Tube of 40)
$ 0.646
(exc. GST)
$ 0.711
(inc. GST)
units
Per unit
Per Tube*
40 - 6360
$0.646
$25.84
6400 - 9560
$0.635
$25.40
9600 - 31960
$0.622
$24.88
32000 - 38360
$0.598
$23.92
38400 +
$0.583
$23.32
*price indicative
