TE Connectivity 2 Way Surface Mount DIP Switch SPST, Rocker Actuator

RS Stock No.:: 718-2146
Mfr. Part No.:: 1571983-3
Brand:: TE Connectivity

TE Connectivity 2 Way Surface Mount DIP Switch SPST, Rocker Actuator

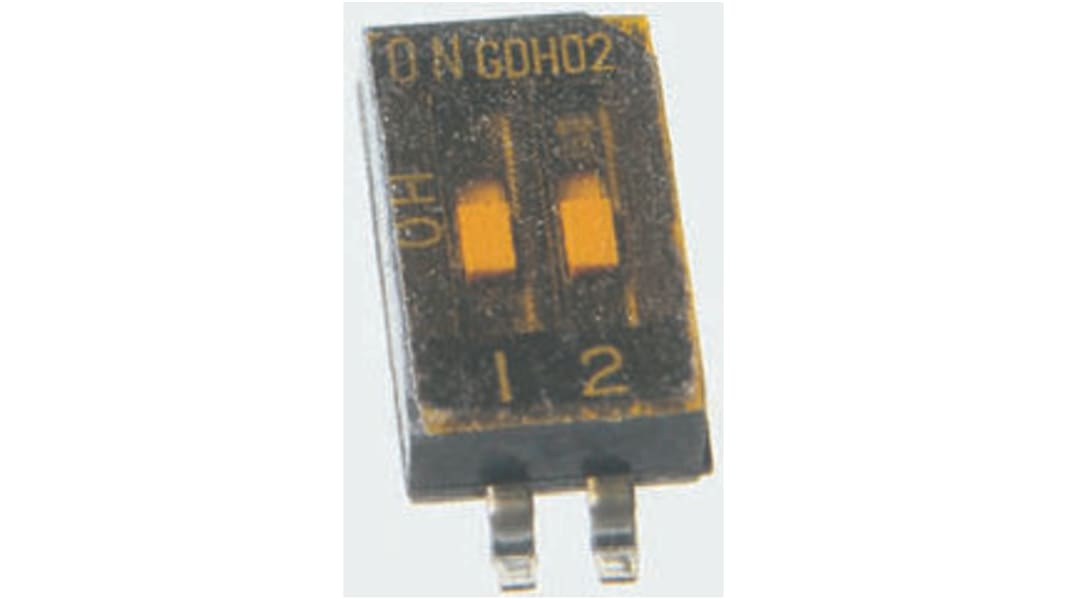

This image is representative of the product range

5 In Global stock for delivery within 5 working day(s)

25 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$4.31

(exc. GST)

$4.74

(inc. GST)

Units	Per unit
1 - 499	$4.31
500 - 999	$4.20
1000 +	$4.13

RS Stock No.:: 718-2146
Mfr. Part No.:: 1571983-3
Brand:: TE Connectivity

Technical data sheets

DIP switch,SMT,SPST,2 ps,recessed rocker

Legislation and Compliance

Product Details

Half Pitch Rocker Switches

Gold wiping contact system
Contact resistance: 100mΩ
Insulation resistance:100 MΩ @ 250Vdc
Low profile with tape seal
Mechanical life: 1000 Cycles

Note

Part numbers ending in STR04 are tape and reel

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Dual-In-Line Switches

Sub-miniature switches in a choice of configurations and actions. Note that these switches are not suitable for immersion cleaning unless stated otherwise.

Specifications

Attribute	Value
Number of Positions	2
Mounting Type	Surface Mount
Contact Material	Copper Alloy
Contact Configuration	SPST
Package Style	DIP
Actuator Type	Rocker
Contact Current Rating	25 mA@ 24 V dc
Maximum Operating Temperature	+85°C
Minimum Operating Temperature	-30°C
Operating Temperature Range	-30 → +85°C
