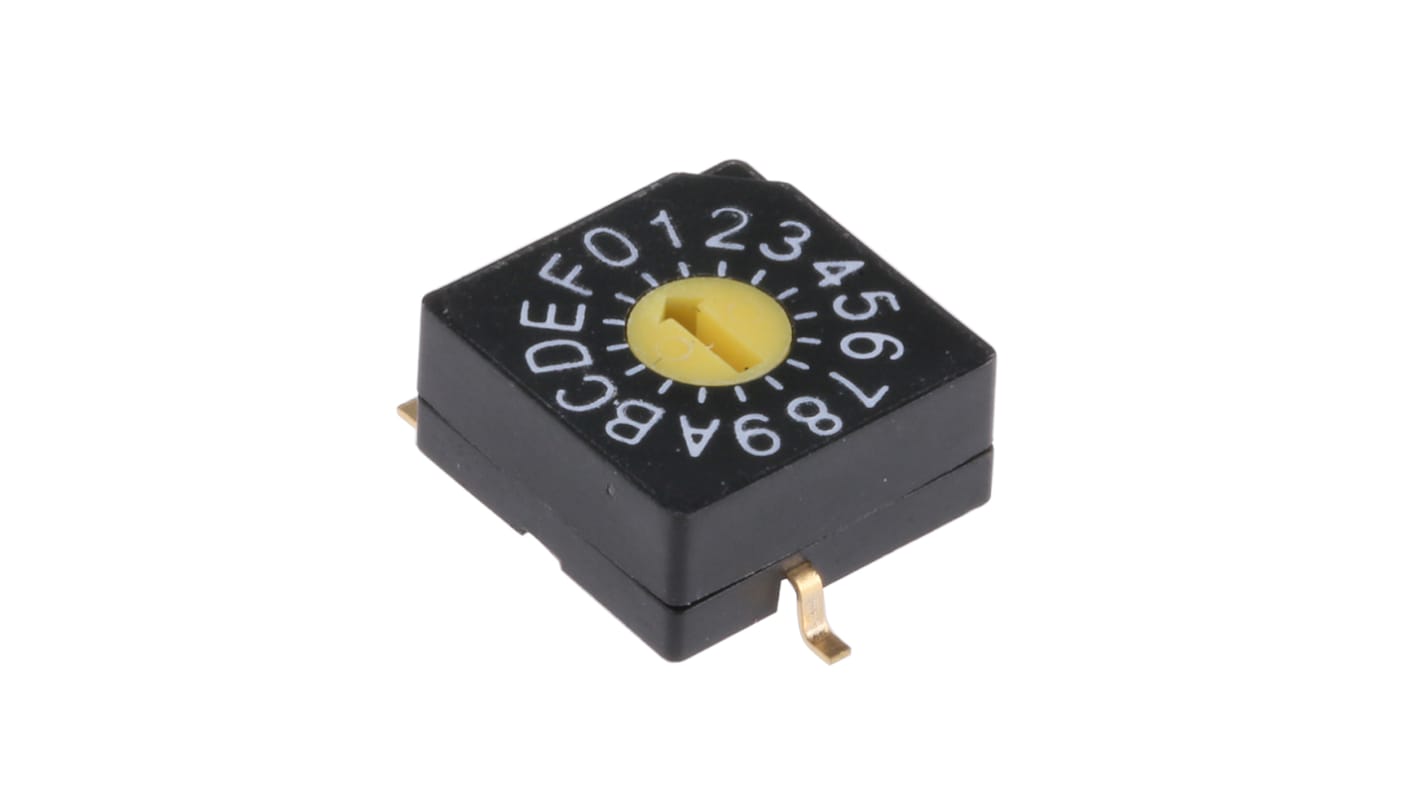

KNITTER-SWITCH 16 Way Surface Mount DIP Switch, Rotary Flush Actuator

RS Stock No.:: 702-3375
Mfr. Part No.:: SMR5016
Brand:: KNITTER-SWITCH

KNITTER-SWITCH 16 Way Surface Mount DIP Switch, Rotary Flush Actuator

Stock check temporarily unavailable - call for stock availability

Added

Price (ex. GST) Each

$5.19

(exc. GST)

$5.71

(inc. GST)

Units	Per unit
1 - 9	$5.19
10 - 49	$5.10
50 - 99	$4.97
100 - 249	$4.83
250 +	$4.71

RS Stock No.:: 702-3375
Mfr. Part No.:: SMR5016
Brand:: KNITTER-SWITCH

Technical data sheets

Subminiature Rotary Coded Switches Data Sheet

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

Subminiature Rotary Coded Switches (SMT) - SMR 5000 Series

Surface mounting
Tape sealed and washable
Contact resistance: < 100 mΩ
Insulation resistance: > 1000 MΩ at 250 V DC
Mechanical life: minimum 20 000 operations

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

PCB Mounting

Footprint/pin spacing: 2.54mm between pins and 5.08mm between rows

Specifications

Attribute	Value
Number of Positions	16
Mounting Type	Surface Mount
Contact Material	Gold Plated Phosphor Bronze
Package Style	DIP
Actuator Type	Rotary Flush
Contact Current Rating	30 mA@ 15 V dc
Mechanical Life	20000Operations
Maximum Operating Temperature	+75°C
Minimum Operating Temperature	-25°C
Operating Temperature Range	-25 → +75°C
Voltage Rating	15V dc
Dielectric Strength	250V ac
