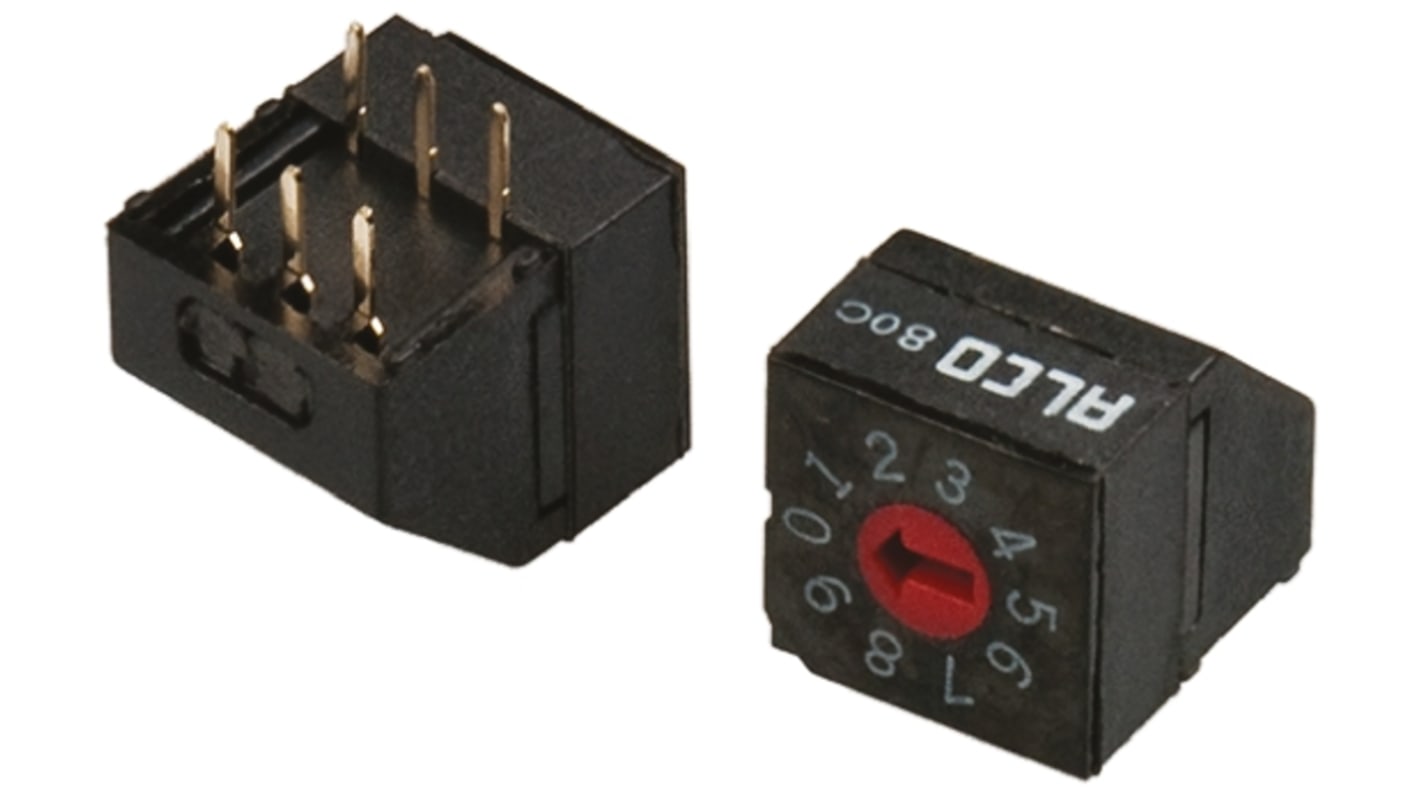

10 Way Through Hole DIP Switch 10P, Rotary Flush Actuator

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Miniature Rotary Encoded Switches

Contact rating: 0.4VA @ 20Vdc max
Contact resistance: 50mΩ max
Life expectancy: 10000 rotations
Temperature range: -30 to +85°C
5-second resistance to wave soldering at 285°C (mounted on 1.5mm card)
Resistant to ultrasound cleaning in a solvent solution, 10% contaminated by fluxing agent
Gold plated contacts

//media.rs-online.com/t_line/LF665225-13.gif

PCB Mounting

Footprint/pin spacing: 2.54mm between pins and 5.08mm between rows

Specifications
Attribute Value
Contact Configuration 10P
Contact Current Rating 400 mA @ 20 V
Contact Material Gold over Nickel Plated Copper Alloy
Number of Positions 10
Mounting Type Through Hole
Actuator Type Rotary Flush
Maximum Operating Temperature +85°C
Minimum Operating Temperature -30°C
Operating Temperature Range -30 → +85°C
Dielectric Strength 300V ac
791 In stock for delivery within 5 working day(s)
Price (ex. GST) Each
$ 6.68
(exc. GST)
$ 7.35
(inc. GST)
units
Per unit
1 - 9
$6.68
10 - 49
$6.32
50 - 99
$6.02
100 - 249
$5.73
250 +
$5.59
