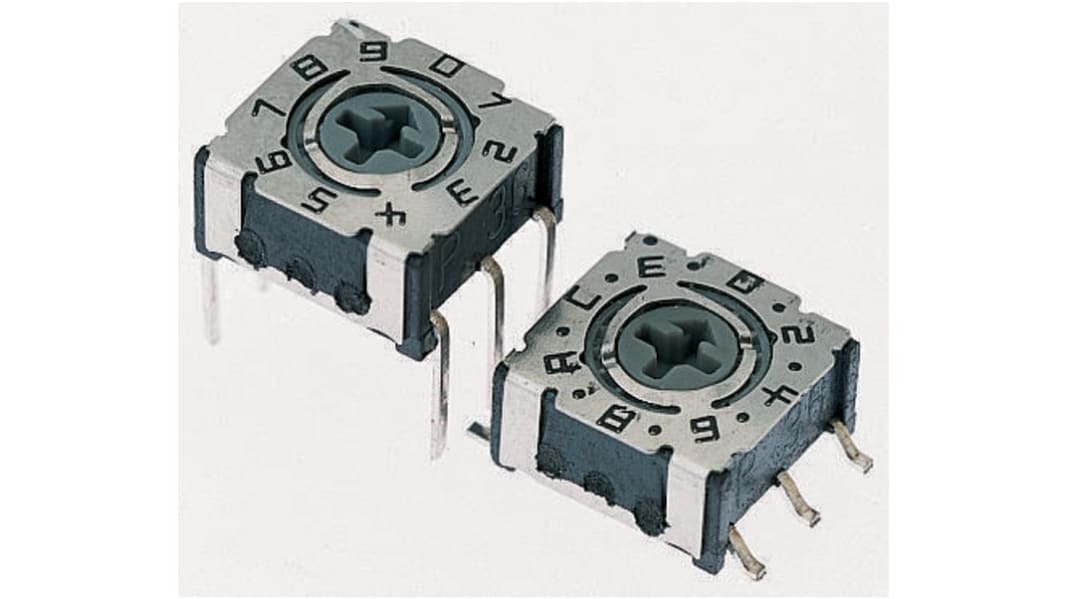

10 Way Through Hole DIP Switch 10P, Rotary Flush Actuator

  • RS Stock No. 379-3929
  • Mfr. Part No. P36101
  • Manufacturer Hartmann
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Rotary Encoded Low Profile In-Line Switches

P36THR1 versions have (L508) left angular 5.08mm terminals

Flux sealed & process washable
Contact rating: 150mA @ 24Vdc
Contact resistance: <80mΩ
Mechanical life: >104 operations
Operating temperature: -30 to +90°C
Positive detent
340°C max. for 2s max. (40 watt iron max.) or 260°C for 10s max
Gold plated contacts

//media.rs-online.com/t_line/L379393-01.gif

PCB Mounting

Footprint/pin spacing: 2.54mm between pins and 5.08mm between rows

Specifications
Attribute Value
Contact Configuration 10P
Contact Current Rating 100 mA@ 24 V dc
Contact Material Gold over Nickel Plated Stainless Steel
Number of Positions 10
Mounting Type Through Hole
Actuator Type Rotary Flush
Package Style DIP
Mechanical Life 10000Operations
Maximum Operating Temperature +90°C
Minimum Operating Temperature -30°C
Operating Temperature Range -30 → +90°C
