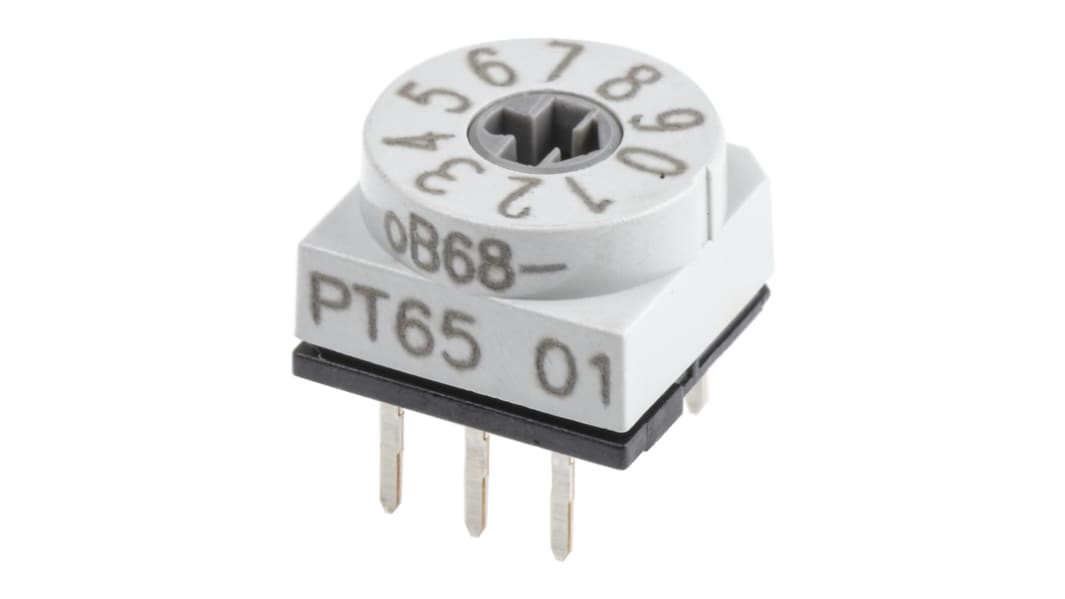

10 Way Through Hole DIP Switch, Rotary Flush Actuator

  • RS Stock No. 379-3806
  • Mfr. Part No. PT65701
  • Manufacturer Hartmann
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Cross-head Rotary Encoder

Flux sealed & process washable
Contact rating: 150mA @ 24Vdc
Contact resistance: <80mΩ
Life: >104 operations
Positive detent action
Gold plated contacts
Through hole and Surface mount versions

Note

Soldering temperature: 340°C max. for 2s max. (40 watt iron max.) or 260°C for 10s max.

//media.rs-online.com/t_line/L175960-01.gif
//media.rs-online.com/t_line/L379380-01.gif
//media.rs-online.com/t_line/L379381-01.gif

PCB Mounting

Footprint/pin spacing: 2.54mm between pins and 5.08mm between rows

Specifications
Attribute Value
Contact Current Rating 150 mA@ 24 V dc
Contact Material Gold over Nickel Plated Bronze
Number of Positions 10
Mounting Type Through Hole
Actuator Type Rotary Flush
Package Style DIP
Mechanical Life 10000Operations
Maximum Operating Temperature +70°C
Minimum Operating Temperature -20°C
Operating Temperature Range -20 → +70°C
Voltage Rating 24V dc
81 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 3.64
(exc. GST)
$ 4.00
(inc. GST)
units
Per unit
1 - 49
$3.64
50 - 99
$3.56
100 - 249
$3.47
250 - 499
$3.38
500 +
$3.29
