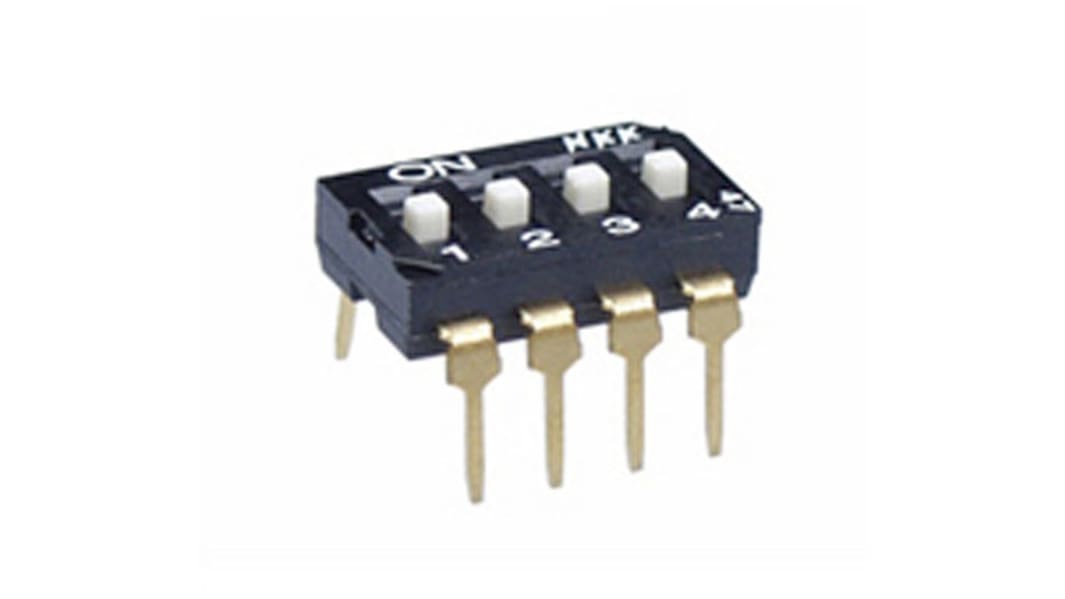

4 Way PCB, Through Hole Piano Dip Switch SPST

  • RS Stock No. 125-1849
  • Mfr. Part No. JS0104AP4-S
  • Manufacturer NKK Switches
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

NKK Ultra Miniature Slide and Piano DIP Switch

Features and Benefits

Two sliding contact mechanism
Gold plated contacts
Cover - Self extinguishing certified material
Base providing high arc and high insulation resistance
Slanted terminals
End to end stackable
Terminal spacing conforms to standard. 2.54mm PCB grid

Standards

UL94V-0 cover and base

Specifications
Attribute Value
Contact Configuration SPST
Contact Current Rating 25 (Switching) mA, 100 (Non-Switching) mA
Contact Material Beryllium Copper
Number of Positions 4
Mounting Type PCB, Through Hole
Actuator Type Slide
Package Style DIP
Maximum Operating Temperature +70°C
Minimum Operating Temperature -25°C
Operating Temperature Range -25 → +70°C
Voltage Rating 24 V dc, 50 V dc
Dielectric Strength 500V ac
10 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each (In a Pack of 5)
$ 3.024
(exc. GST)
$ 3.326
(inc. GST)
units
Per unit
Per Pack*
5 - 20
$3.024
$15.12
25 - 95
$2.92
$14.60
100 - 495
$2.75
$13.75
500 +
$2.66
$13.30
*price indicative
