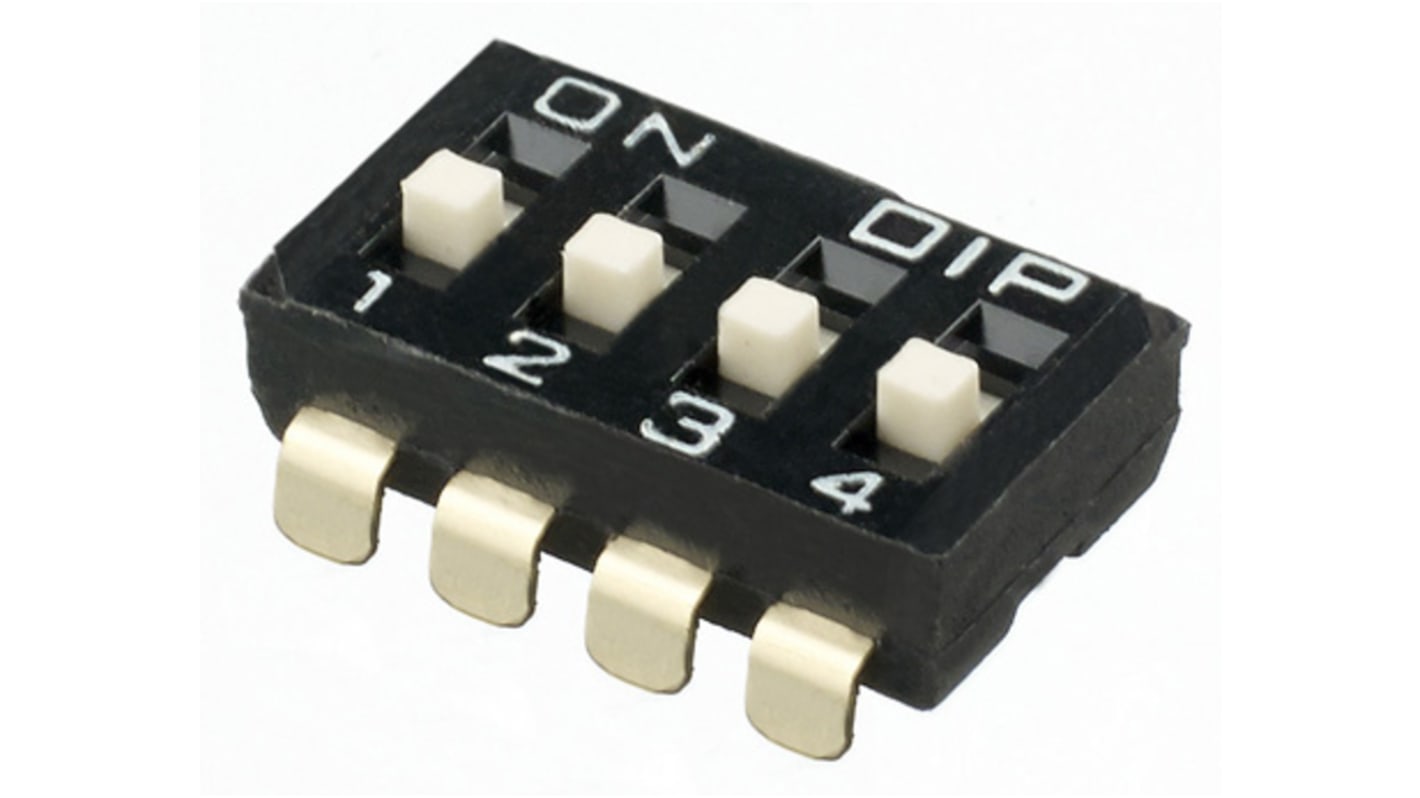

APEM 4 Way Surface Mount DIP Switch 4PST, Raised Actuator
- RS Stock No.:
- 122-2999
- Mfr. Part No.:
- IKD0404101
- Brand:
- APEM
On back order for despatch 28/10/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (On a Reel of 700)
$2.668
(exc. GST)
$2.935
(inc. GST)
| Units | Per unit | Per Reel* |
| 700 - 700 | $2.668 | $1,867.60 |
| 1400 - 1400 | $2.63 | $1,841.00 |
| 2100 - 2100 | $2.578 | $1,804.60 |
| 2800 - 2800 | $2.526 | $1,768.20 |
| 3500 + | $2.476 | $1,733.20 |
| *price indicative | ||
- RS Stock No.:
- 122-2999
- Mfr. Part No.:
- IKD0404101
- Brand:
- APEM
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Apem IKD Series DIP Switch, Raised Actuator
Apem IKD series of dual inline switches are offered in both surface mount & through board low profile options. The series offers both raised and recessed actuators to ensure compatibility with your application. The series also comes equipped with self-cleaning wiping contacts to minimise the need for maintainance. The IKD series are flexible and can be used in a range of environments, such as IR & vapor phase reflow soldering installations.
Features and Benefits
Raised & recessed actuation available.
Gold plated terminals.
Designed to withstand IR & vapor phase reflow soldering.
Self cleaning contacts.
Both even and odd pole numbers available.
Specifications
Attribute | Value |
|---|---|
| Number of Positions | 4 |
| Mounting Type | Surface Mount |
| Contact Material | Phosphor Bronze |
| Contact Configuration | 4PST |
| Package Style | DIP |
| Actuator Type | Raised |
| Contact Current Rating | 100 (Non-Switching) mA @ 50 V dc, 25 (Switching) mA @ 24 V dc |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -20°C |
| Operating Temperature Range | -20 → +85°C |
| Voltage Rating | 24 V dc, 50V dc |
| Dielectric Strength | 500V ac |
