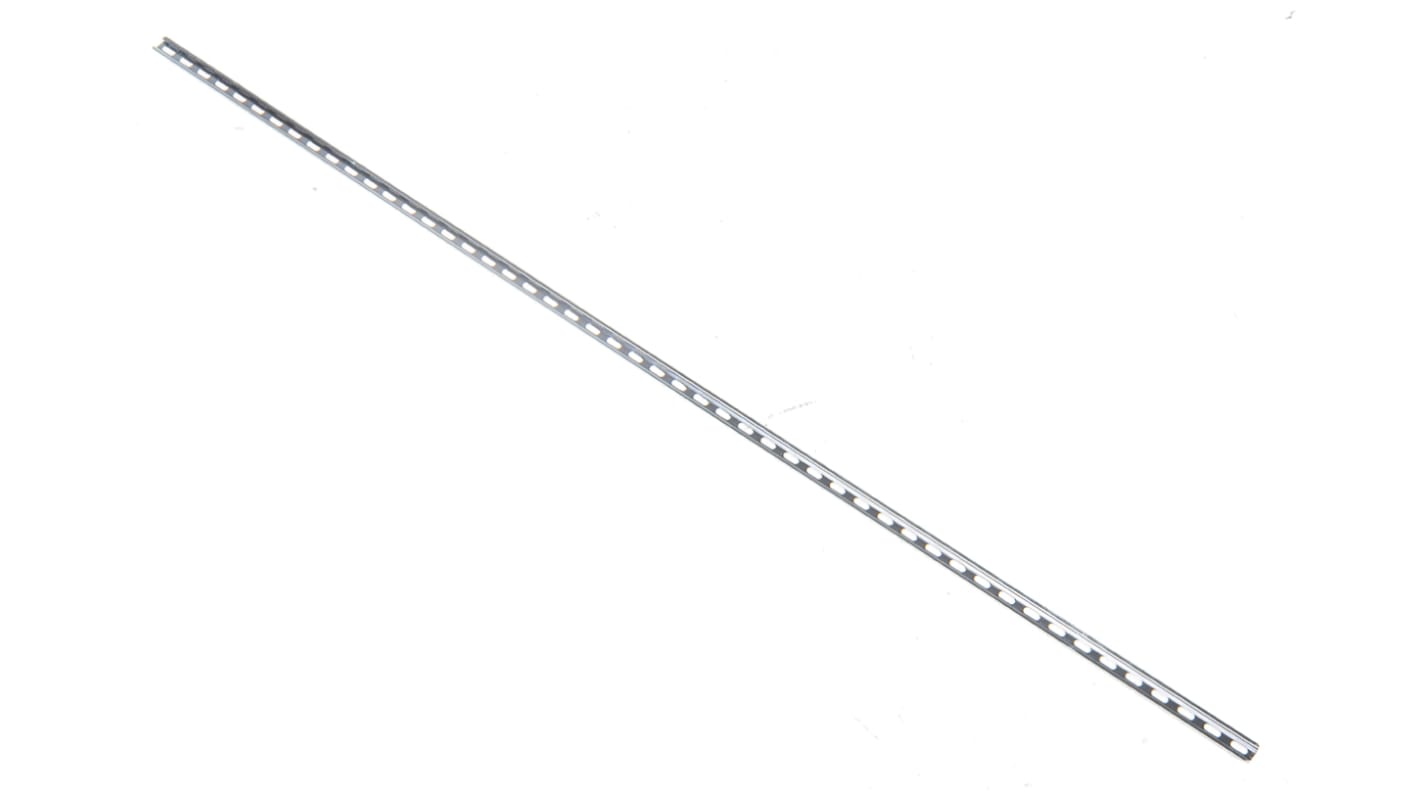

RS PRO Din Rail Mini Top Hat, Slotted, 1m x 15mm x 5.5mm

  • RS Stock No. 467-349
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IT
Product Details

Miniature Top Hat DIN Rail TS 15 F

A range of professional quality 15mm DIN Rail, available in standard or slotted rail and supplied in various lengths.

What is DIN Rail?

DIN Rail is a metal rail used to mount electrical, pneumatic and hydraulic components in control cabinets, enclosures racks and panels. DIN Rail is manufactured to conform to a specific set of standards outlined by the Deutsch Institute von Normen (DIN). Due to the uniform profile, it ensures components can be sourced from several different manufacturers and suppliers, safe in the knowledge all products can be mounted on the same rail.

Why should you use RS PRO Miniature Top Hat DIN Rail?

Using RS PRO DIN rail enables you to mount your electrical components safely and securely. It provides a central location where wiring can be connected and maintained quickly and efficiently.

• Saves space – DIN rail terminals and smaller DIN mounted components can be packed into smaller spaces.
• Saves time - DIN mounted components easily slide or snap onto the rail. Relays, timers, circuit breakers and similar products can also be mounted into compatible bases for rapid connection.
• Saves money – DIN rail provides a cost-effective solution as it allows for a higher density of component mounting, which reduces wiring cost and enclosure space.

Features and Benefits

• Industry standard symmetrical rail – 15 mm x 5.5 mm (Width x Depth)
• Zinc-plated and clear passivated steel material
• Slotted for easy installation
• Conforms to EN50045 and DIN 46277-3 standards

Applications

TS-15 miniature Top Hat DIN rail is used in a wide variety of industrial applications. It’s not as popular as standard height rail, but can be found in many panels, and enclosures in industrial applications. Miniature Top Hat rail is ideal where smaller type of components are needed. Some of the most common are

• DIN rail terminal blocks
• Power supplies
• Plug in relays
• Timer modules
• Panel meters
• I/O devices
• Robotics
• Automation and control devices

Standards

DIN 46277

//media.rs-online.com/t_line/L604797-03.gif
Specifications
Attribute Value
Compatibility Mini Top Hat
Length 1m
Width 15mm
Height 5.5mm
DIN Rail Type Slotted
Material Steel
55 : Next working day (AU stock)
1330 : 5 working days (Global stock)
Price (ex. GST) Each (In a Pack of 5)
$ 6.73
(exc. GST)
$ 7.40
(inc. GST)
units
Per unit
Per Pack*
5 - 5
$6.73
$33.65
10 - 20
$4.426
$22.13
25 +
$4.304
$21.52
*price indicative
