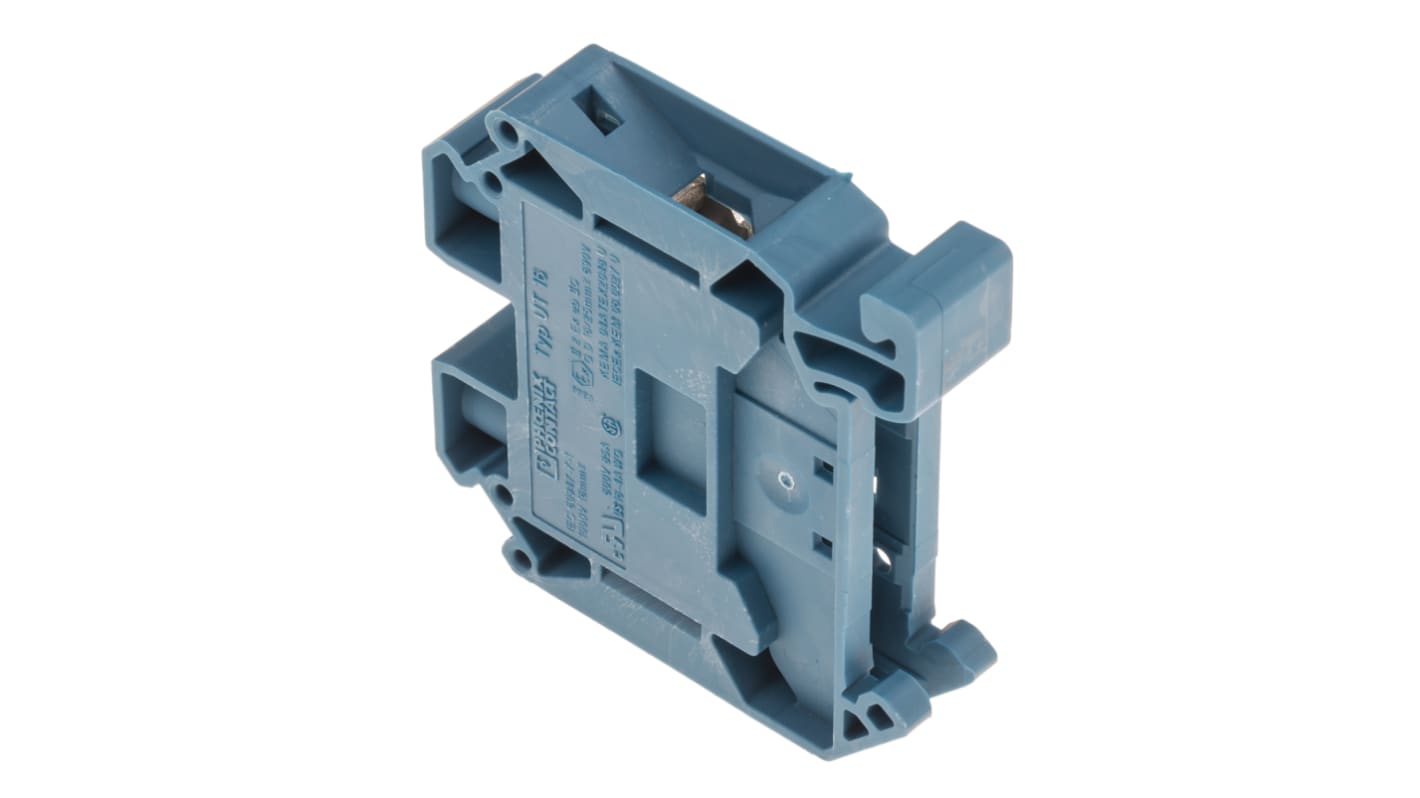

Phoenix Contact UT 16 BU Series Blue Feed Through Terminal Block, 1.5 → 25mm², Single-Level, Screw Termination,
- RS Stock No.:
- 624-6959
- Mfr. Part No.:
- 3044209
- Brand:
- Phoenix Contact
- RS Stock No.:
- 624-6959
- Mfr. Part No.:
- 3044209
- Brand:
- Phoenix Contact
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TR
Product Details
UT Terminals
All metal parts are of high strength copper alloys
Simple multi-conductor connection
Maintenance-free "Reakdyn principle"
All accessories are compatible with the CLIPLINE range
Simple multi-conductor connection
Maintenance-free "Reakdyn principle"
All accessories are compatible with the CLIPLINE range
Note
Cable cross-sectional area quoted refers to cable with rigid conductors
Certificate No.
KEMA 04ATEX2048 U
Group and Category
II 2 G D EX e II
Phoenix Contact CLIPLINE UT Range
Specifications
Attribute | Value |
---|---|
Colour | Blue |
Number of Levels | Single |
Series | UT 16 BU |
American Wire Gauge | 16 → 4AWG |
Termination Method | Screw |
Cable CSA | 1.5 → 25mm² |
Voltage Rating | 1 kV |
Current Rating | 76A |
Hazardous Area Certification | ATEX |
Model Number | UT 16 BU |
