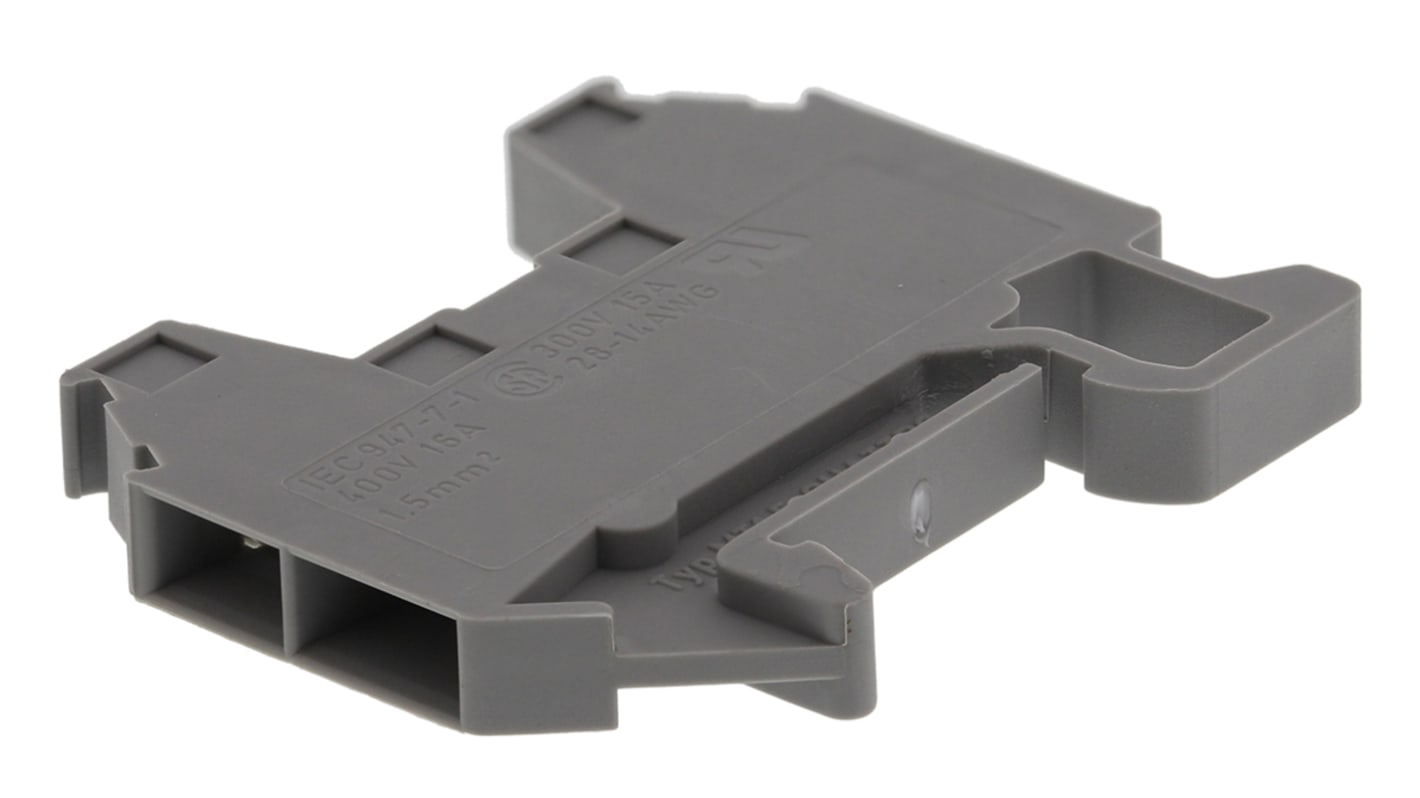

Phoenix Contact, MT Series , 400 V Standard Din Rail Terminal, Screw Down Termination

Technical data sheets
Legislation and Compliance
Non Compliant
COO (Country of Origin): DE
Product Details

2-In 2-Out Terminal

Phoenix Contact range of feedthrough DIN rail terminals with two cable inputs and two outputs.

For high density installations in a confined environment

Note

The cable csa detailed applies to both solid and stranded wire construction.

Specifications
Attribute Value
Series MT 1.5-QUATTRO
Wire Size 26 → 16 AWG
Cable CSA 0.14 → 1.5mm²
Colour Grey
Current Rating 16A
Number of Levels Double
Termination Method Screw Down
Voltage Rating 400 V
570 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each (In a Pack of 5)
$ 3.086
(exc. GST)
$ 3.395
(inc. GST)
units
Per unit
Per Pack*
5 +
$3.086
$15.43
*price indicative
