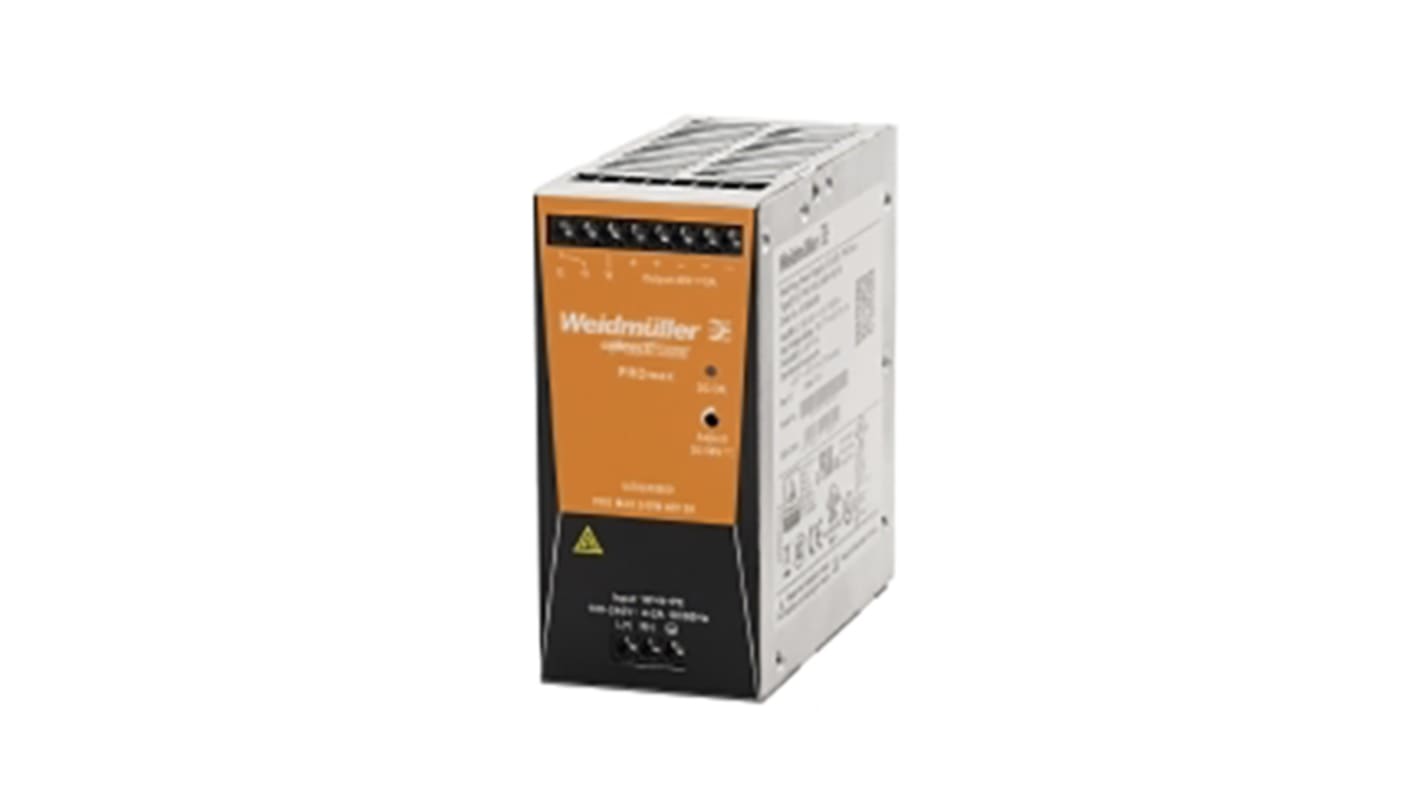

Weidmüller PRO MAX Switched Mode DIN Rail Power Supply, 85 → 277 V ac / 80 → 370V dc ac, dc Input, 48V dc

RS Stock No.:: 923-6582
Mfr. Part No.:: 1478240000
Brand:: Weidmüller

Weidmüller PRO MAX Switched Mode DIN Rail Power Supply, 85 → 277 V ac / 80 → 370V dc ac, dc Input, 48V dc

1 In AU stock for next working day delivery

4 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$768.44

(exc. GST)

$845.28

(inc. GST)

Units	Per unit
1 +	$768.44

RS Stock No.:: 923-6582
Mfr. Part No.:: 1478240000
Brand:: Weidmüller

Technical data sheets

PRO MAX

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

PROmax Series

Professional range of Weidmuller power supply units from the PROmax series. Delivering high performance, flexibility and system suitability is the reason these power supplies are a diverse solution for demanding automation. A key feature of the power supplies is the high boost capability and full power in a wide temperature range. The power supplies are designed for especially demanding requirements and also suitable for confined spaces.

Reliable
Efficient
Robust

Switch Mode - Weidmuller

Specifications

Attribute	Value
Output Voltage	48V dc
Output Current	5A
AC or DC Input Voltage	ac, dc
AC or DC Output Voltage	dc
Input Voltage	85 → 277 V ac / 80 → 370V dc
Power Rating	240W
Electrical Phase	1
Number of Outputs	1
Height	130mm
Width	32mm
Depth	125mm
Series	PRO MAX
Standards Met	61000-4-4, 61000-4-5, 61000-4-6, CE Certified, cULus Listed, cULus Recognized, EAC, EN 50178/VDE 0160, EN 55022, EN 60204, EN 60950, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8, IEC 1709, IEC 60068-2-27, IEC 60068-2-6, IEC 61204, IEC 61558-2-16, TUV, VDE 0100-410/DIN57100-410, VDE 0106-101
Maximum Temperature	+70°C
Minimum Temperature	-25°C
Ripple And Noise	<50mV
MTBF	>500000h
Special Features	Durable, High Performance
Mounting Type	DIN Rail Mount
