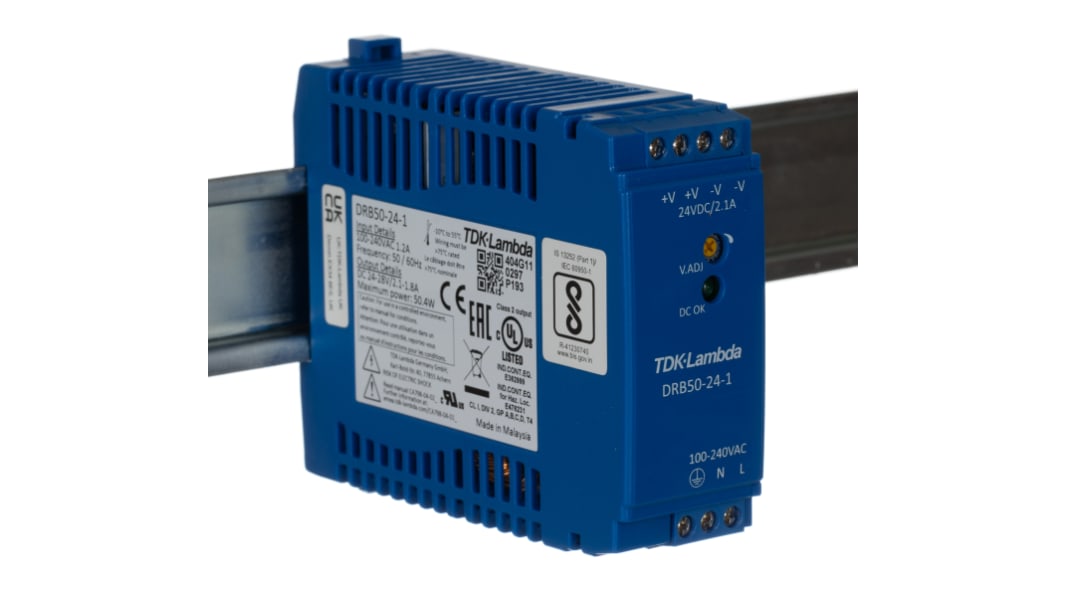

TDK-Lambda DRB Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 2.1A Output, 50W

RS Stock No.:: 815-3133
Mfr. Part No.:: DRB-50-24-1
Brand:: TDK-Lambda

TDK-Lambda DRB Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 2.1A Output, 50W

137 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$86.64

(exc. GST)

$95.30

(inc. GST)

Units	Per unit
1 - 4	$86.64
5 +	$84.83

RS Stock No.:: 815-3133
Mfr. Part No.:: DRB-50-24-1
Brand:: TDK-Lambda

Technical data sheets

DRB Series Data Sheet

Legislation and Compliance

COO (Country of Origin):: MY

Product Details

TDK-Lambda DIN Rail Power Supply

The TDK-Lambda DRB series switch-mode DIN-rail power supply have 2.1A output current at 24VDC output voltage. Its most outstanding features are compact size and energy efficiency. This power supply has a universal single phase input voltage rating ranging between 85VAC and 264VAC with adjustable output voltage. Its high immunity makes it suitable for almost every situation. The adjustable output voltage ranges between 24VDC and 28VDC.

Features and Benefits

Easy system integration
High efficiency up to 90%
LED indicator
Operating temperature ranges between -20°C and 70°C
Power rating is 50.4W
Ripple factor and noise is 40mV

Applications

Broadcasting
Factory automation
general-purpose industrial applications
Process control
Renewable energy
Test and measurement

Certifications

CISPR22 class B
CSA
EN60950
UL approved

Specifications

Attribute	Value
Type	Switched Mode
Output Voltage	24V dc
Output Current	2.1A
AC or DC Input Voltage	ac
AC or DC Output Voltage	dc
Input Voltage	85 → 264V ac
Power Rating	50W
Electrical Phase	1
Number of Outputs	1
Height	75mm
Width	75mm
Depth	90mm
Series	DRB
Ripple And Noise	40mV
Minimum Temperature	-20°C
Maximum Temperature	+70°C
Load Regulation	480mV
Mounting Type	DIN Rail Mount
