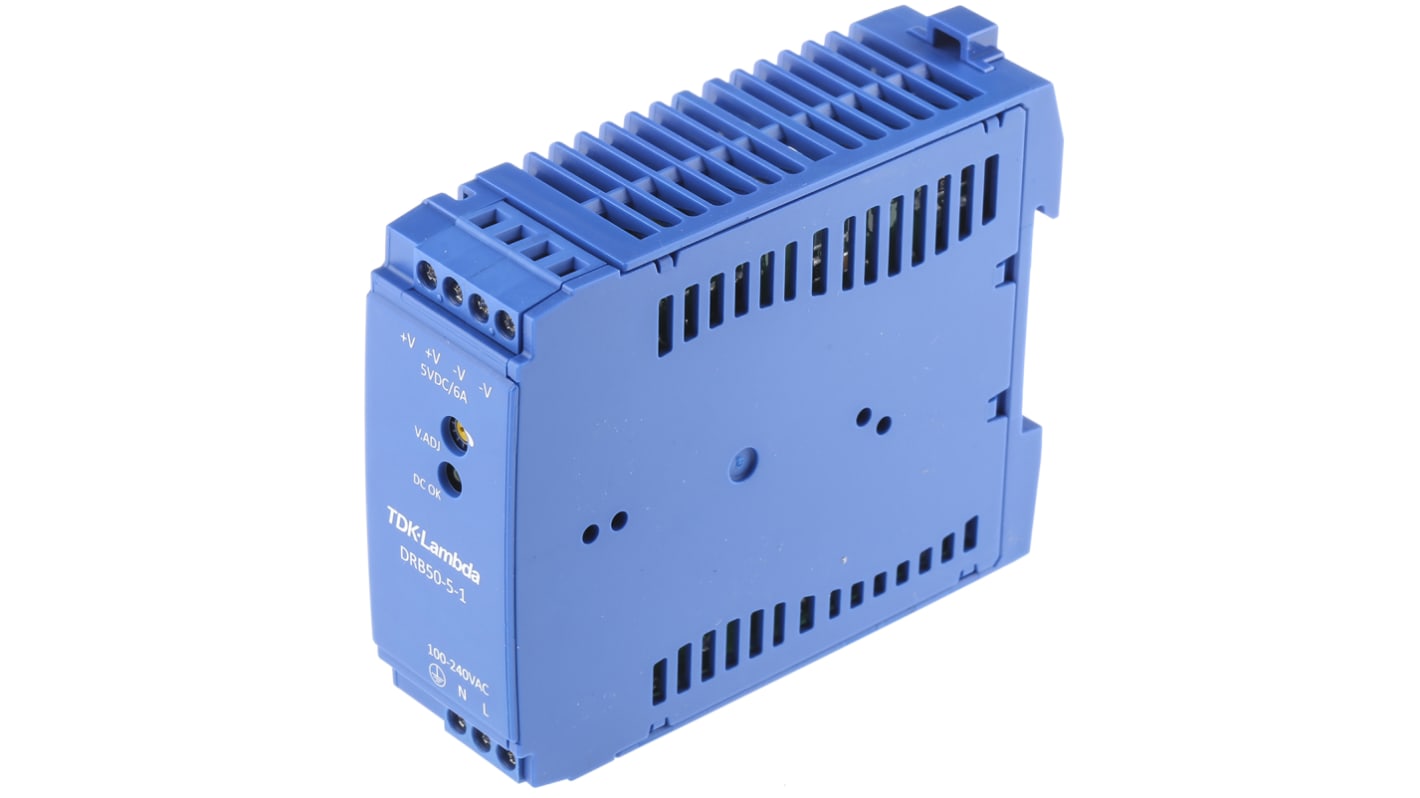

TDK-Lambda DIN Rail Power Supply, 5V dc Output Voltage, 6A output current

  • RS Stock No. 815-3121
  • Mfr. Part No. DRB-50-5-1
  • Manufacturer TDK-Lambda
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MY
Product Details

DRB Series DIN Rail Power Supplies

The DRB series of DIN Rail power supplies offers basic functionality for power applications up to 480 W.
With a simple and economic design, the DRB series combines low cost and compact dimensions with efficiencies of up to 92%.

Features and Benefits

• High efficiency up to 92% • Compact and energy efficient
• Easy system integration
• Long lifetime expectation
• Single phase input

Product Application Information

• General purpose industrial • Test and measurement
• Renewable
• Factory automation / Process control
• Broadcast

Specifications
Attribute Value
Output Voltage 5 V dc
Output Current 6 A
Power Rating 30W
Number of Outputs 1
Type Switch Mode
Width 75mm
Depth 95mm
Series DRB
Load Regulation 480mV
Ripple And Noise 40mV
Maximum Temperature +70°C
Minimum Temperature -20°C
427 In stock for delivery within 5 working day(s)
Price (ex. GST) Each
$ 68.01
(exc. GST)
$ 74.81
(inc. GST)
units
Per unit
1 - 4
$68.01
5 +
$65.96
