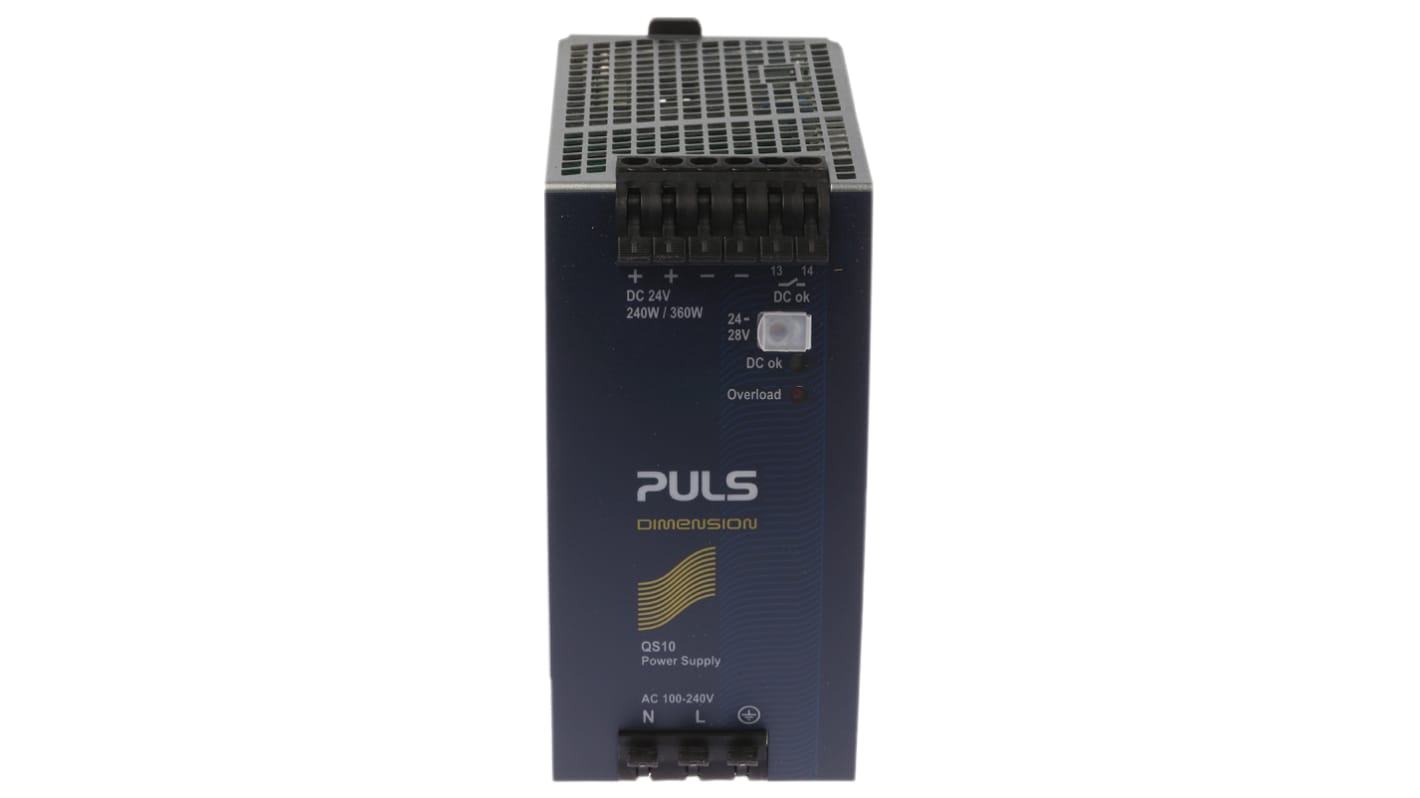

PULS DIN Rail Panel Mount Power Supply, 24V dc Output Voltage, 10A output current

  • RS Stock No. 514-5574
  • Mfr. Part No. QS10.241
  • Manufacturer PULS
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Dimension Q Series

The Q-Series DIN rail power supplies from PULS are small in size yet offer high efficiency thanks to novel design details and synchronous rectification. With short-term peak power capability of 150% and built-in large sized output capacitors, these features help start motors, charge capacitors and absorb reverse energy and often allow a unit of a lower wattage class to be used. High immunity to transients and power surges as well as low electromagnetic emission make these PSU,s usable in nearly every environment possible. The integrated output power manager, a wide range input voltage design and virtually no input inrush current make installation and usage simple. The Q-Series power supplies diagnostics are easy due to the dry DC-ok contact, a green DC-ok LED and red overload LED. Unique quick-connect spring-clamp terminals allow a safe and fast installation and a large international approval package for a variety of applications makes these PSU's suitable for nearly every situation.

Single-phase or three-phase units from 80 to 960W
Active power factor correction
Minimal inrush current
50% power reserves for typ. 4s controlled by an intelligent power manager
Quick-connect spring-clamp terminals
DC-ok LED and overload LED
DC-ok relay contact
DC Input from 88-375V for single phase
Active filtering of input transients
Short term operation down to 60Vac and up to 300Vac
Parallel and serial use

Standards

IEC, UL, EN, SELV

Specifications
Attribute Value
Input Voltage 85 → 276 V ac, 88 → 187 V dc
Output Voltage 24 V dc
Output Current 10 A
Power Rating 240W
Electrical Phase 1
Type Switch Mode
Width 60mm
Minimum Temperature -25°C
MTBF 1005000h
Maximum Temperature +70°C
Series DIMENSION Q
Ripple And Noise 50mV Pk-Pk
Mounting Type DIN Rail
Load Regulation 100mV
Depth 117mm
