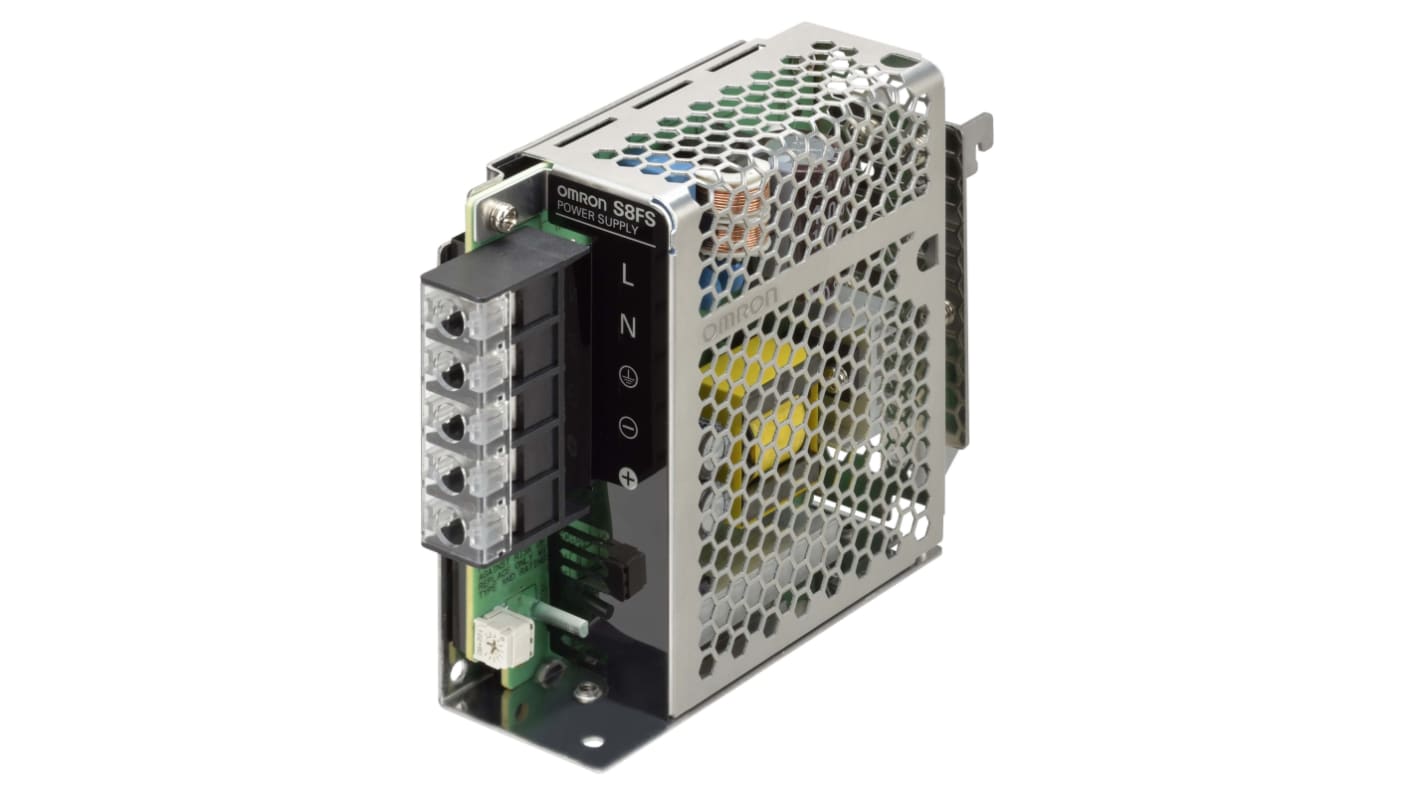

Omron S8FS-G Switched Mode DIN Rail Power Supply, 100 → 240V ac ac Input, 24V dc dc Output, 2.2A Output, 50W

RS Stock No.:: 166-6776
Mfr. Part No.:: S8FS-G05024CD
Brand:: Omron

Omron S8FS-G Switched Mode DIN Rail Power Supply, 100 → 240V ac ac Input, 24V dc dc Output, 2.2A Output, 50W

23 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$170.81

(exc. GST)

$187.89

(inc. GST)

Units	Per unit
1 +	$170.81

RS Stock No.:: 166-6776
Mfr. Part No.:: S8FS-G05024CD
Brand:: Omron

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

S8FS-G DIN Rail Switch Mode Power Supply

The S8FS-G series of Switch mode DIN Rail power supplies provide you with excellent standard performance and reliability. They do not require transformers for control circuits plus have in built IEC 61558-2-16 compliant transformers so no need for a transformer with compound windings. The S8FS0G power supplies are excellent with machine tools and semi-conductor equipment plus reduce costs and space. The power supplies include a wealth of features including operating within harsh vibration environments, high temperatures, unstable input voltage and altitudes up to 3000 m.

Part Number S8FS-G05024CD

The S8FS Switch mode, mounted Din Rail mounted power supply is a covered type, screw terminal power supply. S8FS-G05024CD has a power rating of 50 W and an output voltage of 24 V dc plus a rated input voltage of 100 V ac to 240 V ac. This model is natural air cooling.

Features and Benefits.

• Covered type power supply

• Screw terminal

• Built-in transformer

• Design stops screws from falling out of the terminal block

• Front cover

• Resistant to harsh environments

• DIN Rail Mounted

• Green output indicators

• Natural air cooling

• Power rating 50 W

• Output voltage 24 V dc

• Input voltage 100 V ac to 240 V ac

• Rated output current 2.2 A

• Harmonic current emissions

• Efficiency 86% min.

• Overload and over voltage protection

• Space saving

• Weight 300g

• 10 Year life expectancy

Safety and Storage.

Vibration resistance 10 Hz to 55 Hz. 0.375 mm single amplitude in each 3 directions for 2 hours.

Shock resistance 150 m/s**2 in each 6 directions 3 times.

Standards

EN 61000-3-2
UL 508 (Listing, excluding models with connector option)
UL 60950-1, UL 62368-1 (Recognition, OVCII 3,000 m, Pol2)
CSA C22.2 No.107.1 (excluding models with connector option)
CSA C22.2 No.60950-1, No.62368-1 (excluding models with connector option)
EN 50178 (OVCIII 2,000 m, OVCII 2,000 m and 3,000 m, Pol2)
EN/IEC 60950-1, EN/IEC 62368-1 (OVCII 3,000 m, Pol2)
Conforms to EN/IEC 61558-2-16
Conforms to PELV (EN/IEC 60204-1)
SEMI conforms to F47-0706 (200 VAC input)

Specifications

Attribute	Value
Type	Switched Mode
Output Voltage	24V dc
Output Current	2.2A
AC or DC Input Voltage	ac
AC or DC Output Voltage	dc
Input Voltage	100 → 240V ac
Power Rating	50W
Electrical Phase	1
Number of Outputs	1
Height	37mm
Width	137mm
Depth	105mm
Series	S8FS-G
Standards Met	CE, CSA C22.2 No. 60950-1, CSA C22.2 No.107.1, cULus Recognised, EN 50178, EN 55011 Class B, EN 60950-1, EN 61000-3-2, EN 61204-3, EN 61204-3 Class B, EN/IEC 61558-2-16, TUV, UL, UL 508, UL 60950-1
Ripple And Noise	60mV Pk-Pk
Load Regulation	1%
Minimum Temperature	-20°C
MTBF	135000h
Output Voltage Adjustment Range	-10 → +15%
Maximum Temperature	+70°C
Efficiency	89%
Mounting Type	DIN Rail Mount
