Italtronic DIN Rail Enclosure Enclosure Type Modulbox XTS Series , 213 x 90 x 55mm, ABS, Polycarbonate DIN Rail

RS Stock No.:: 860-7618
Mfr. Part No.:: 25.1206000.BL
Brand:: Italtronic

Italtronic DIN Rail Enclosure Enclosure Type Modulbox XTS Series , 213 x 90 x 55mm, ABS, Polycarbonate DIN Rail

106 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$36.29

(exc. GST)

$39.92

(inc. GST)

Units	Per unit
1 +	$36.29

RS Stock No.:: 860-7618
Mfr. Part No.:: 25.1206000.BL
Brand:: Italtronic

Technical data sheets

MODULBOX XTS 12MXTS B Datasheet

Legislation and Compliance

COO (Country of Origin):: IT

Product Details

Modulbox XTS DIN Rail Mount Enclosures

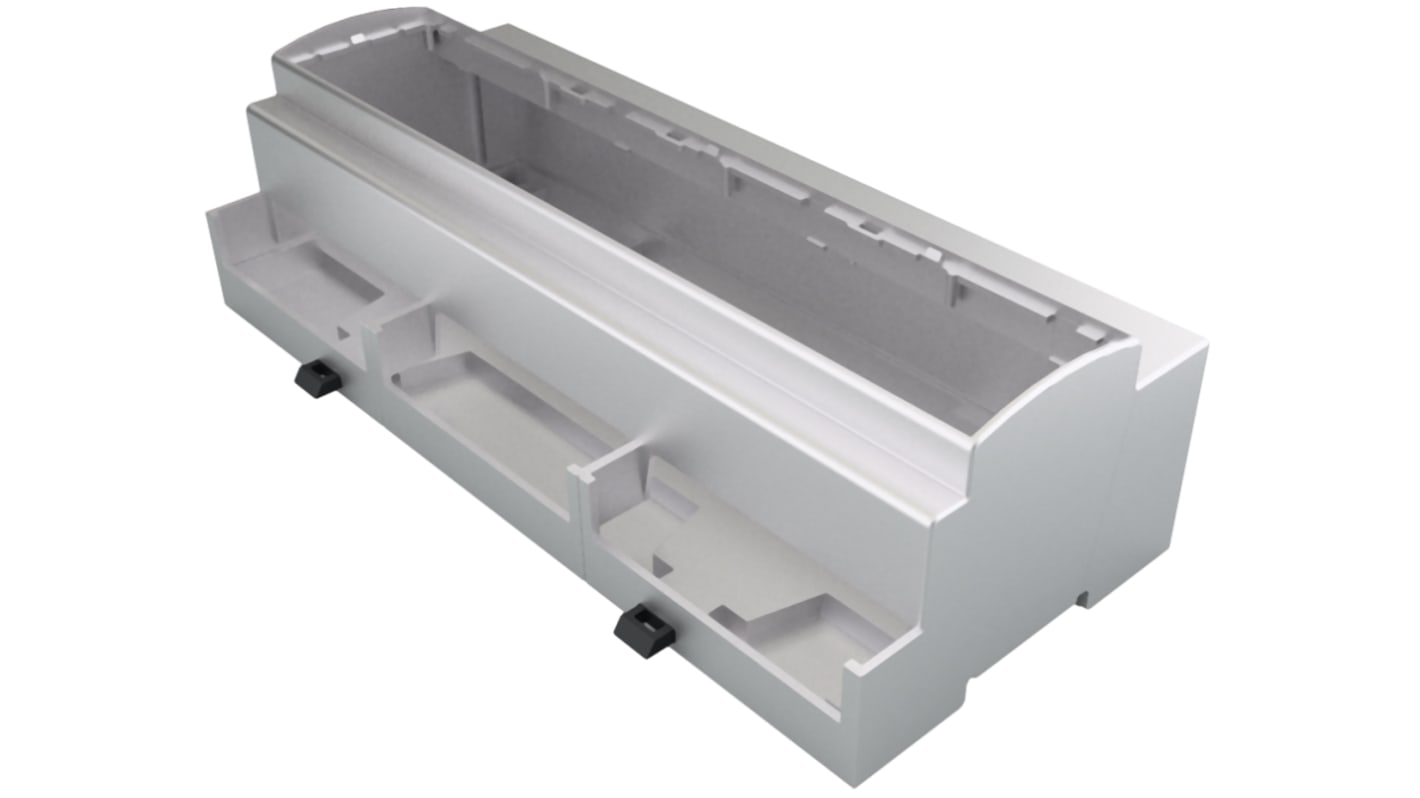

The Modulbox XTS version B is a DIN Rail mountable enclosure. It is designed according to DIN 43880 to meet the needs of various applications including heating & lighting control and energy metering. These DIN Rail mounting enclosures are available as 3, 4, 6, 9 and 12 module versions, in a standard height of 53 mm. The Modulbox XTS B boasts a high shoulder on one side of the enclosure allowing for extra volume within the enclosure for larger components. The two-step feature on the opposite side leaves room for inputs/outputs such as PCB-mounted terminal blocks.

Features and Benefits

Two-step design and high shoulder on one side
DIN Rail (EN 60715) mountable
UL94V-0 self-extinguishing PPO and PC Material
Diverse range of front panels & terminal covers
Grey RAL 7035

Modulbox XTS B Version

860-7609 - 3 module
860-7602 - 4 module
860-7606 - 6 module
860-7615 - 9 module
860-7618 - 12 module

Grey Panel with Frame

860-7612 - 3 module
860-7621 - 4 module
860-7624 - 6 module
860-7628 - 9 module
860-7637 - 12 module

Transparent Panel with Frame

860-7630 - 3 module
860-7634 - 4 module
860-7643 - 6 module
860-7646 - 9 module
860-7640 - 12 module

Terminal Covers

918-8893 - 3 module blank
918-8897 - 3 module pre-drilled 5.08 mm
918-8907 - 4 module blank
918-8900 - 4 module pre-drilled 5.08 mm

Applications

The Modulbox XTS version B meets the needs of various applications including heating & lighting control and energy metering.

Supplied with

Base, cover and DIN Rail hook.

Specifications

Attribute	Value
Enclosure Type	DIN Rail Enclosure
Body Material	ABS, Polycarbonate
DIN Rail Type	Top Hat
Length	213mm
Dimensions	213 x 90 x 55mm
Width	90mm
Height	55mm
Colour	Grey
Series	Modulbox XTS
