Italtronic Solid, Vented Enclosure Type Railbox Series , 101 x 45 x 79mm, ABS, Polycarbonate DIN Rail Enclosure
- RS Stock No.:
- 860-7595
- Mfr. Part No.:
- 10.450KM03
- Brand:
- Italtronic
172 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$30.71
(exc. GST)
$33.78
(inc. GST)
| Units | Per unit |
| 1 + | $30.71 |
- RS Stock No.:
- 860-7595
- Mfr. Part No.:
- 10.450KM03
- Brand:
- Italtronic
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details

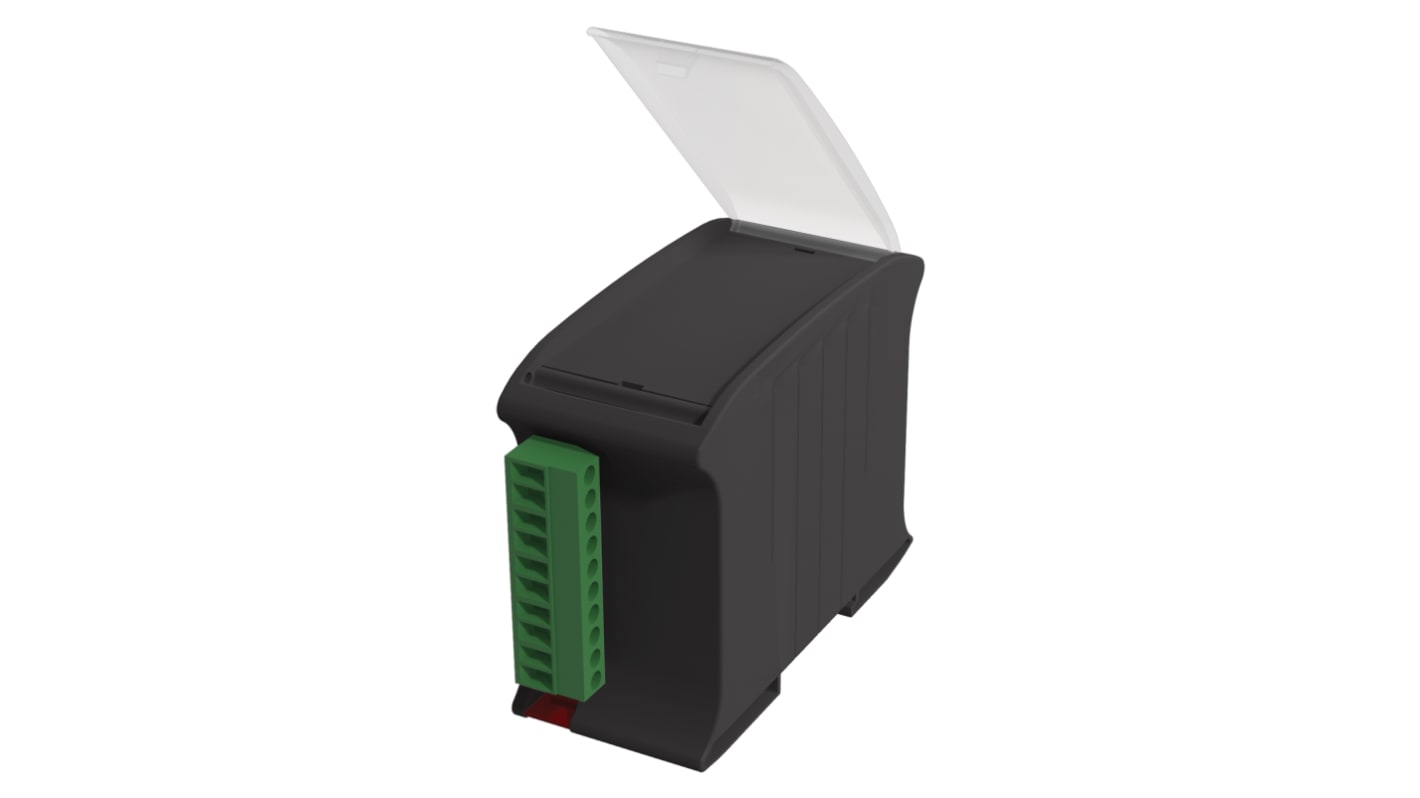

Railbox Compact DIN Rail Mount Enclosures
The Railbox Compact is a unique and stylish DIN rail mountable enclosure suitable for electronic applications. It is a lower profile version of the standard Railbox enclosure with a height of 79mm. There are 4 widths available: 17.5mm, 22.5mm, 35mm and 45mm. The Railbox Compact allows the PCB to be mounted in the base without the need for screws. Breakable hole covers in the Railbox Compact avoid machining costs and save time, making it ideal for prototyping. The terminals to be used in the Railbox Compact are the plug-in PH. These compact DIN rail enclosures are able to accept 20 poles, pitch 5.00/5.08 (10 poles per side).
DIN rail (EN 60715) mountable
UL94V-0 self-extinguishing PPO and PC Material
Breakable hole covers
Dark grey
UL94V-0 self-extinguishing PPO and PC Material
Breakable hole covers
Dark grey
Supplied with
base, cover, DIN rail hook, spring, hinged transparent cover, internal panel and 2 breakable hole covers.
Specifications
Attribute | Value |
|---|---|
| Enclosure Type | Solid, Vented |
| Body Material | ABS, Polycarbonate |
| DIN Rail Type | Top Hat |
| Length | 101mm |
| Dimensions | 101 x 45 x 79mm |
| Width | 45mm |
| Height | 79mm |
| Maximum Terminals | 17 |
| Colour | Black |
| Series | Railbox |
