Phoenix Contact UEGM Series , 79 x 25 x 85.5mm, Polyamide DIN Rail Enclosure

Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

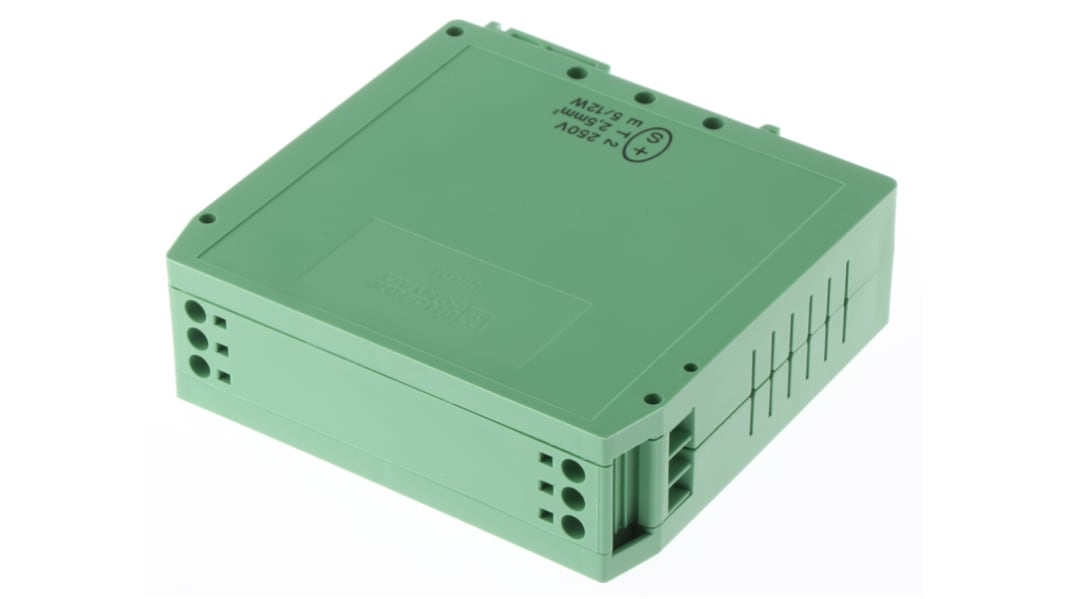

UEGM Electrical Housing

The Phoenix Contact range of UEGM electronic housings, or commonly referred to as enclosures are high-quality polyamide PCB housings. These housings give you the ability the mount a PCB onto your DIN rail set-up while still having the total functionality of your PCB, thanks to the DIN rail footing design located on the back of the electronic housing. Assembly of these housings are nice and easy thanks to the overlapping housing parts and not to mention, fully equipped with 3 screw or 6 tab connections per side.

The housing comes in a green polyamide material to match the aesthetic of phoenixs green.

Features and benefits:

Clicks onto EN rails
Fully equipped with 3 screw or 6 flat pin connectors on each side
For one printed circuit board

Dimensions:

  • Length: 79 mm

  • Installed height: 85.5 mm

  • Width: 25 mm

  • Pitch: 5 mm

  • Depth: 79 mm

Need a PCB?

If you're struggling to find a PCB that will go into the plastic enclosure, Phoenix have a pre-made PCB. The PCB is UL recognized and will allow for a perfect install. See stock no. below:

Specifications
Attribute Value
Dimensions 79 x 25 x 85.5mm
Body Material Polyamide
Enclosure Type Electronic Housing
Length 79mm
Width 25mm
Height 85.5mm
Maximum Terminals 6
Colour Green
Series UEGM
Minimum Operating Temperature -40°C
Maximum Operating Temperature +105°C
27 In stock for delivery within 7 working day(s) (Global Stock)
Price (ex. GST) Each
$ 19.52
(exc. GST)
$ 21.47
(inc. GST)
units
Per unit
1 +
$19.52
