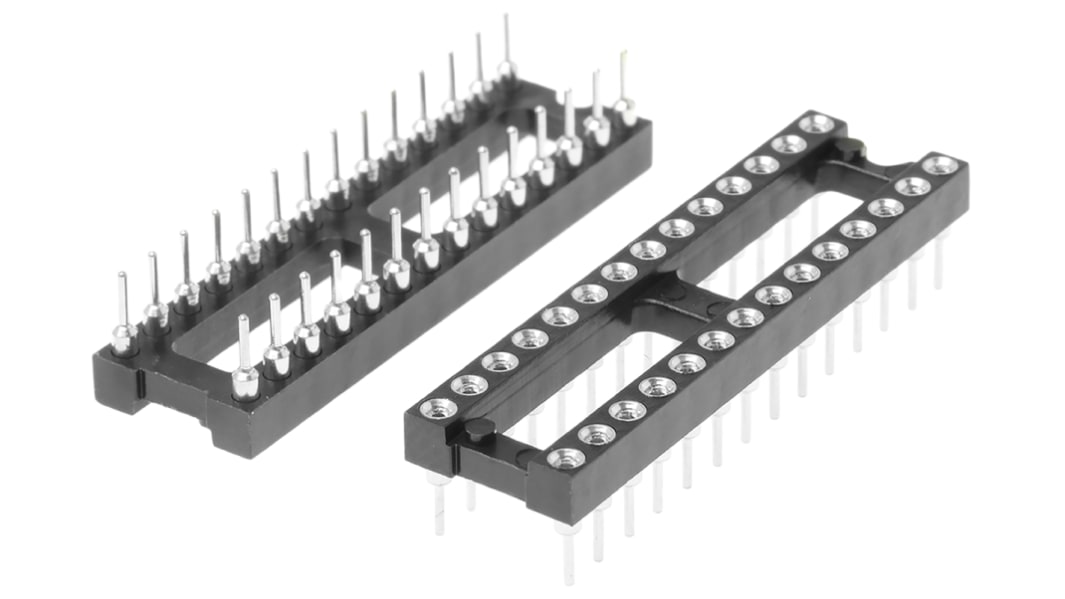

E-TEC 2.54mm Pitch Vertical 28 Way, Through Hole Turned Pin Open Frame IC Dip Socket

  • RS Stock No. 600-7877
  • Mfr. Part No. POS-328-S001-95
  • Manufacturer E-TEC
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Precision Gold Contacts

Precision DIP sockets with gold plated 'tulip' grip contacts & tin plated pins
Prevents capilliary action with solder & flux on PCB's
Open frame construction maximises heat dissipation
Temperature Range: -65°C to +125°C
Contacts: Beryllium copper
Pins: Brass
100 Cycles (Contact Life)
Insulation Resistance: 5 x 109 Ω (at 500Vdc) (Std and hi-Temp); >104 MΩ (at 500Vdc) (FR4 Epoxy)

//media.rs-online.com/t_line/LF160493-10.gif
//media.rs-online.com/t_line/LF160493-11.gif
Specifications
Attribute Value
Number of Contacts 28
Mounting Type Through Hole
Pin Type Turned
Pitch 2.54mm
Row Width 7.62mm
Frame Type Open Frame
Termination Method Solder
Contact Plating Gold, Tin
Orientation Vertical
Length 35.5mm
Width 4.45mm
Contact Material Beryllium Copper
Housing Material PBT
Stock check temporarily unavailable - call for stock availability
Price (ex. GST) Each (In a Tube of 14)
$ 2.602
(exc. GST)
$ 2.862
(inc. GST)
units
Per unit
Per Tube*
14 - 336
$2.602
$36.428
350 - 1036
$2.556
$35.784
1050 - 2786
$2.462
$34.468
2800 - 5586
$2.412
$33.768
5600 +
$2.37
$33.18
*price indicative
