- RS Stock No.:
- 197-4069
- Mfr. Part No.:
- W30528/3TTRC
- Brand:
- Winslow
- RS Stock No.:
- 197-4069
- Mfr. Part No.:
- W30528/3TTRC
- Brand:
- Winslow
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

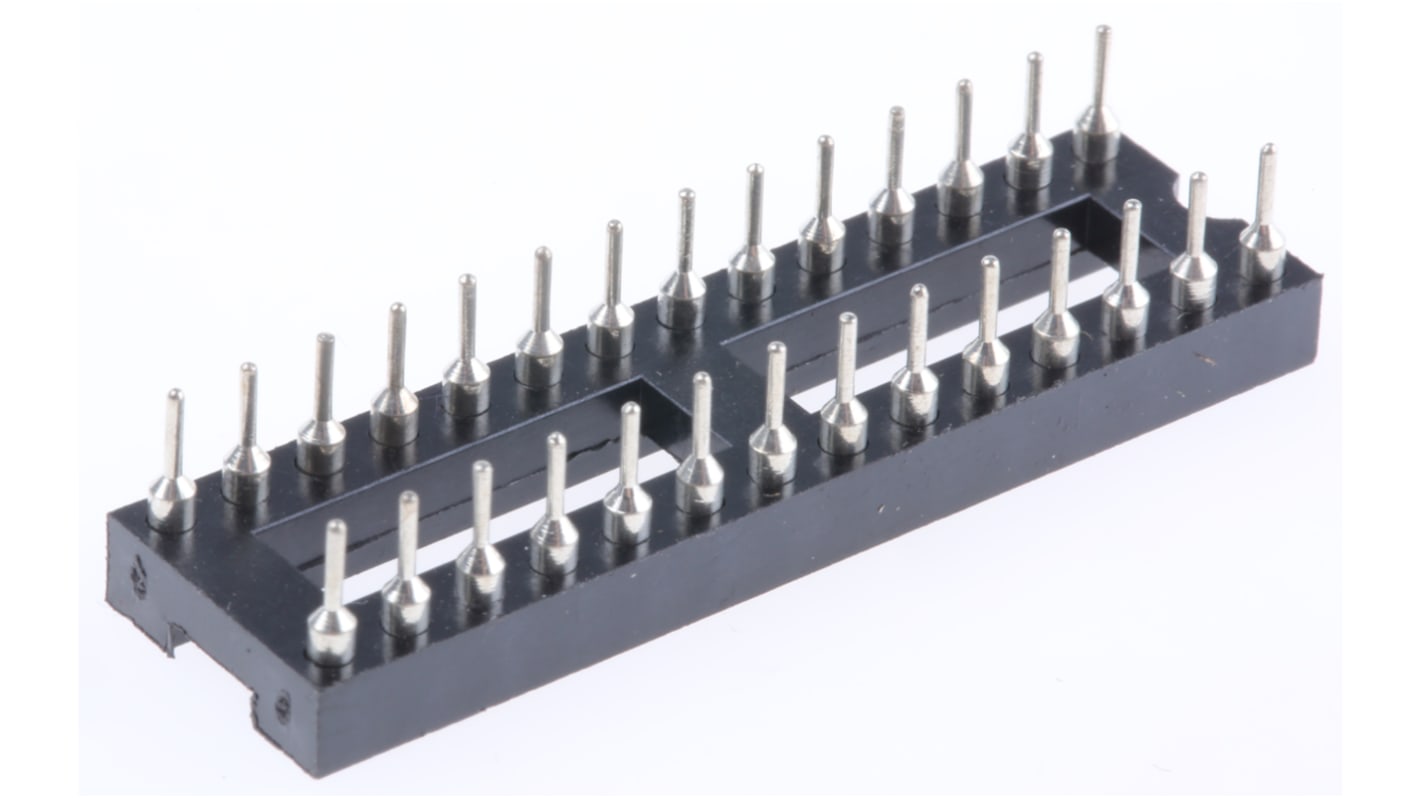

Low Profile, Turned Pin
Low profile high-quality machined contact d.i.l. sockets comprising a four-finger (3 to 5 microns) tin over nickel-plated beryllium-copper inner contact, with a tin-plated brass outer shell.
Temperature Range: -55°C to +150 °C
Temperature Range: -55°C to +150 °C
Specifications
Attribute | Value |
---|---|
Number of Contacts | 28 |
Mounting Type | Through Hole |
Pin Type | Turned |
Pitch | 2.54mm |
Row Width | 7.62mm |
Frame Type | Open Frame |
Termination Method | Solder |
Contact Plating | Tin |
Current Rating | 5A |
Orientation | Vertical |
Length | 35.48mm |
Width | 4.6mm |
Depth | 10.14mm |
Dimensions | 35.48 x 4.6 x 10.14mm |
Contact Material | Beryllium Copper |
Housing Material | PBT |
Minimum Operating Temperature | -65°C |
Maximum Operating Temperature | +150°C |
