- RS Stock No.:
- 197-2681
- Mfr. Part No.:
- W30520TTRC
- Brand:
- Winslow
40 In AU stock for next working day delivery
60 In Global stock for delivery within 5 working day(s)
1320 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Tube of 20)
Was $22.42
You pay
$0.953
(exc. GST)
$1.048
(inc. GST)
Units | Per unit | Per Tube* |
20 - 980 | $0.953 | $19.06 |
1000 - 4980 | $0.927 | $18.54 |
5000 + | $0.889 | $17.78 |
*price indicative |
- RS Stock No.:
- 197-2681
- Mfr. Part No.:
- W30520TTRC
- Brand:
- Winslow
Technical data sheets
Legislation and Compliance
Product Details

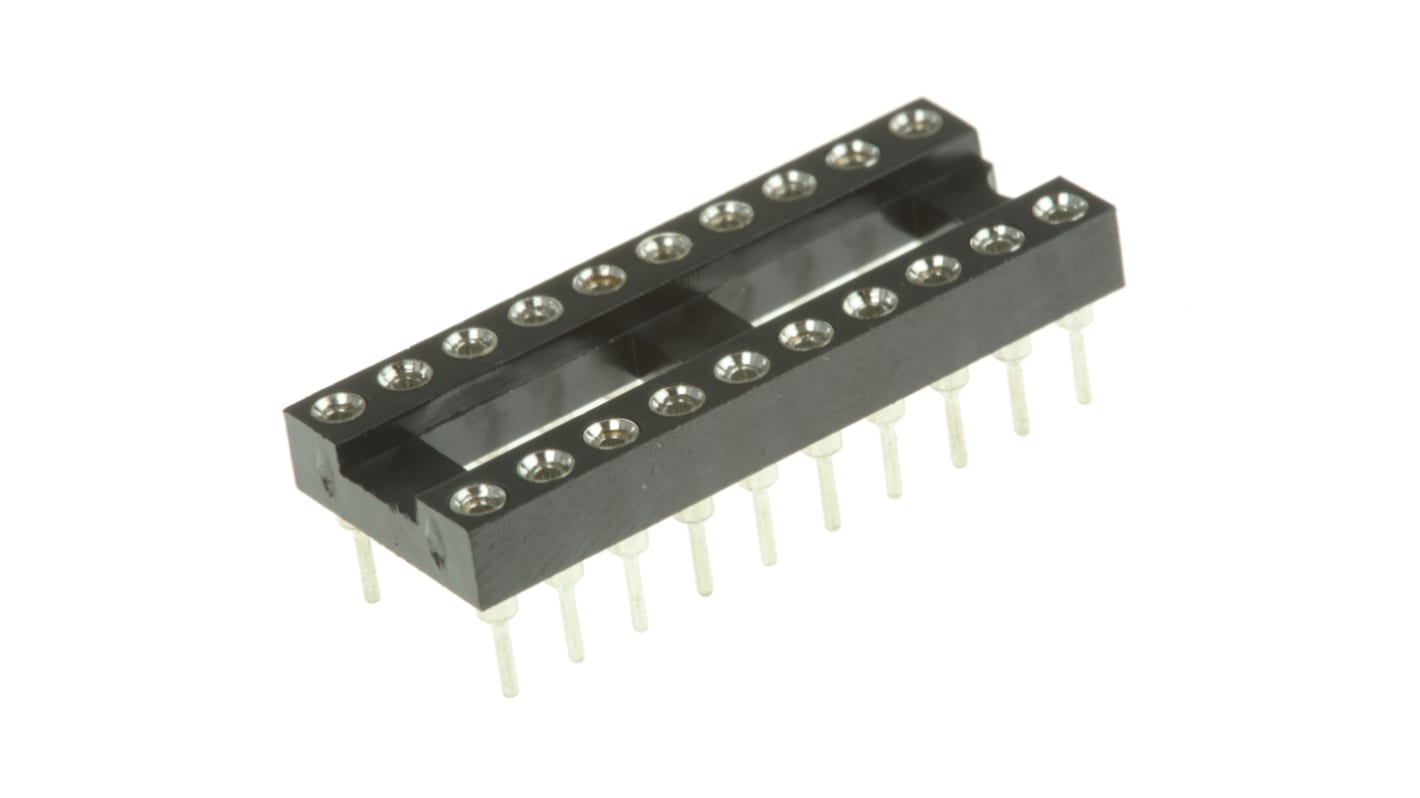

Low Profile, Turned Pin
Low profile high-quality machined contact d.i.l. sockets comprising a four-finger (3 to 5 microns) tin over nickel-plated beryllium-copper inner contact, with a tin-plated brass outer shell.
Temperature Range: -55°C to +150 °C
Temperature Range: -55°C to +150 °C
Specifications
Attribute | Value |
---|---|
Number of Contacts | 20 |
Mounting Type | Through Hole |
Pin Type | Turned |
Pitch | 2.54mm |
Row Width | 7.62mm |
Frame Type | Open Frame |
Termination Method | Solder |
Contact Plating | Tin |
Current Rating | 5A |
Orientation | Vertical |
Length | 25.32mm |
Width | 4.6mm |
Depth | 10.14mm |
Dimensions | 25.32 x 4.6 x 10.14mm |
Minimum Operating Temperature | -65°C |
Housing Material | PBT |
Contact Material | Beryllium Copper |
Maximum Operating Temperature | +150°C |
