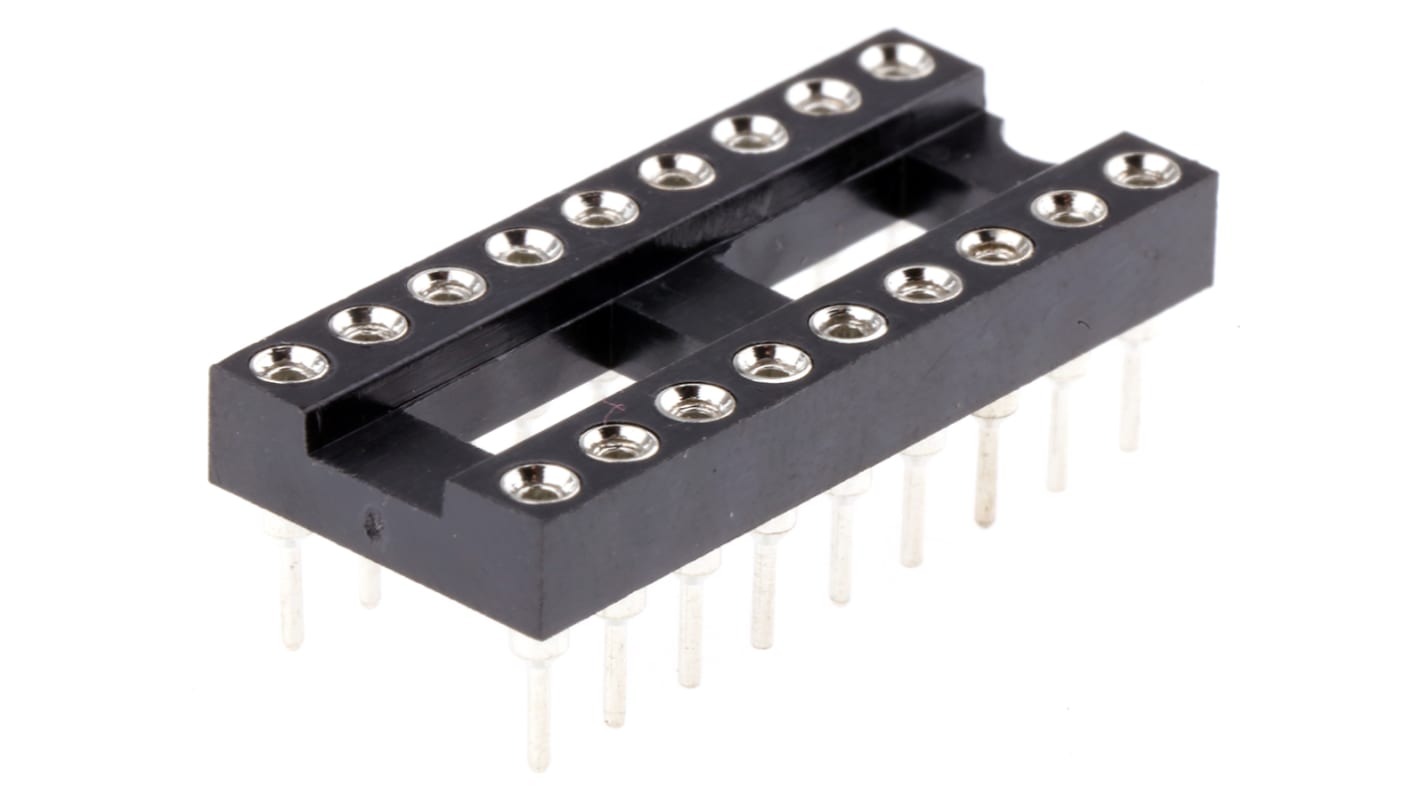

Winslow 2.54mm Pitch Vertical 18 Way, Through Hole Turned Pin Open Frame IC Dip Socket, 5A

  • RS Stock No. 197-2675
  • Mfr. Part No. W30518TTRC
  • Manufacturer Winslow
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Low Profile, Turned Pin

Low profile high-quality machined contact d.i.l. sockets comprising a four-finger (3 to 5 microns) tin over nickel-plated beryllium-copper inner contact, with a tin-plated brass outer shell.
Temperature Range: -55°C to +150 °C

Specifications
Attribute Value
Number of Contacts 18
Mounting Type Through Hole
Pin Type Turned
Pitch 2.54mm
Row Width 7.62mm
Frame Type Open Frame
Termination Method Solder
Contact Plating Tin
Current Rating 5A
Orientation Vertical
Length 22.78mm
Width 4.6mm
Depth 10.14mm
Dimensions 22.78 x 4.6 x 10.14mm
Maximum Operating Temperature +150°C
Contact Material Beryllium Copper
Minimum Operating Temperature -65°C
Housing Material PBT
3 : Next working day (AU stock)
46 : 5 working days (Global stock)
Price (ex. GST) 1 Tube of 22
$ 17.96
(exc. GST)
$ 19.76
(inc. GST)
Tube(s)
Per Tube
Per unit*
1 - 24
$17.96
$0.816
25 - 74
$17.07
$0.776
75 - 199
$16.12
$0.733
200 - 399
$15.11
$0.687
400 +
$14.74
$0.67
*price indicative
