Product Details

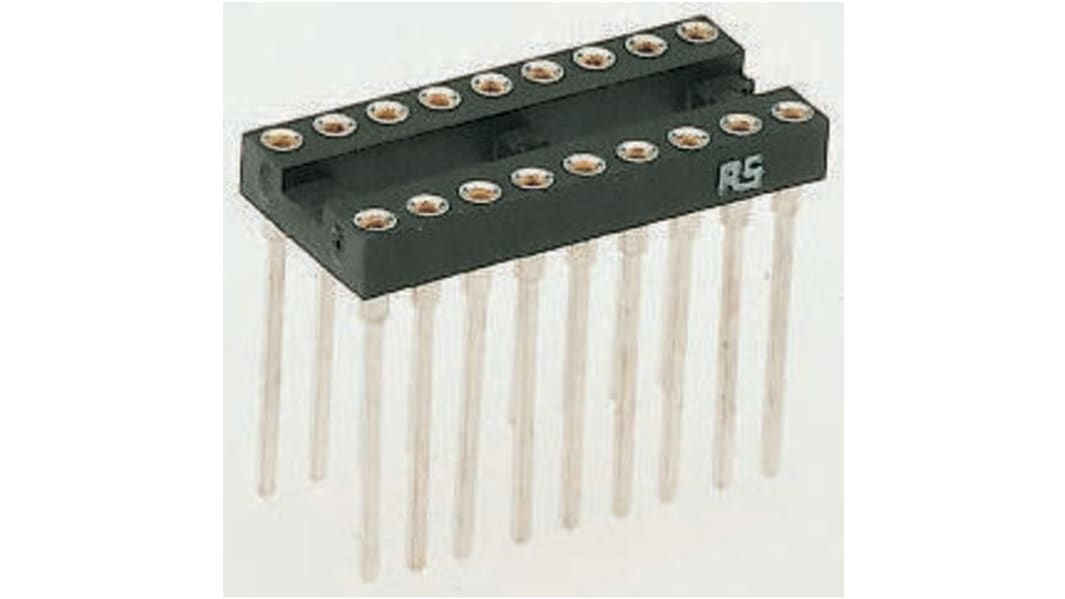

Winslow Adaptics W30600 Series Wire Wrap DIL IC Sockets
W30600 Series Level 3 wire wrap DIL IC sockets with an open frame housing. These DIL IC sockets have screw machined (turned) half hard brass outer pins with a beryllium copper contact. The contact is gold plated and the outer pins have a pure bright tin plating. The pins of these wire wrap DIL IC sockets feature a straight knurled barrel which prevents the pin rotating during the wrapping process. The frame is made from PBT with a UL 94 V-0 rating.
Features and Benefits
Screw machined contacts
Knurled barrel to prevent pin rotation
Knurled barrel to prevent pin rotation
Specifications
Attribute | Value |
---|---|
Number of Contacts | 20 |
Mounting Type | Through Hole |
Pin Type | Turned |
Pitch | 2.54mm |
Row Width | 7.62mm |
Frame Type | Open Frame |
Termination Method | Wire Wrap |
Contact Plating | Gold, Tin |
Current Rating | 5A |
Orientation | Vertical |
Length | 25.32mm |
Width | 10.14mm |
Depth | 3mm |
Dimensions | 25.32 x 10.14 x 3mm |
Housing Material | Glass Fibre Reinforced PBT |
Minimum Operating Temperature | -65°C |
Maximum Operating Temperature | +150°C |
Contact Material | Beryllium Copper |
