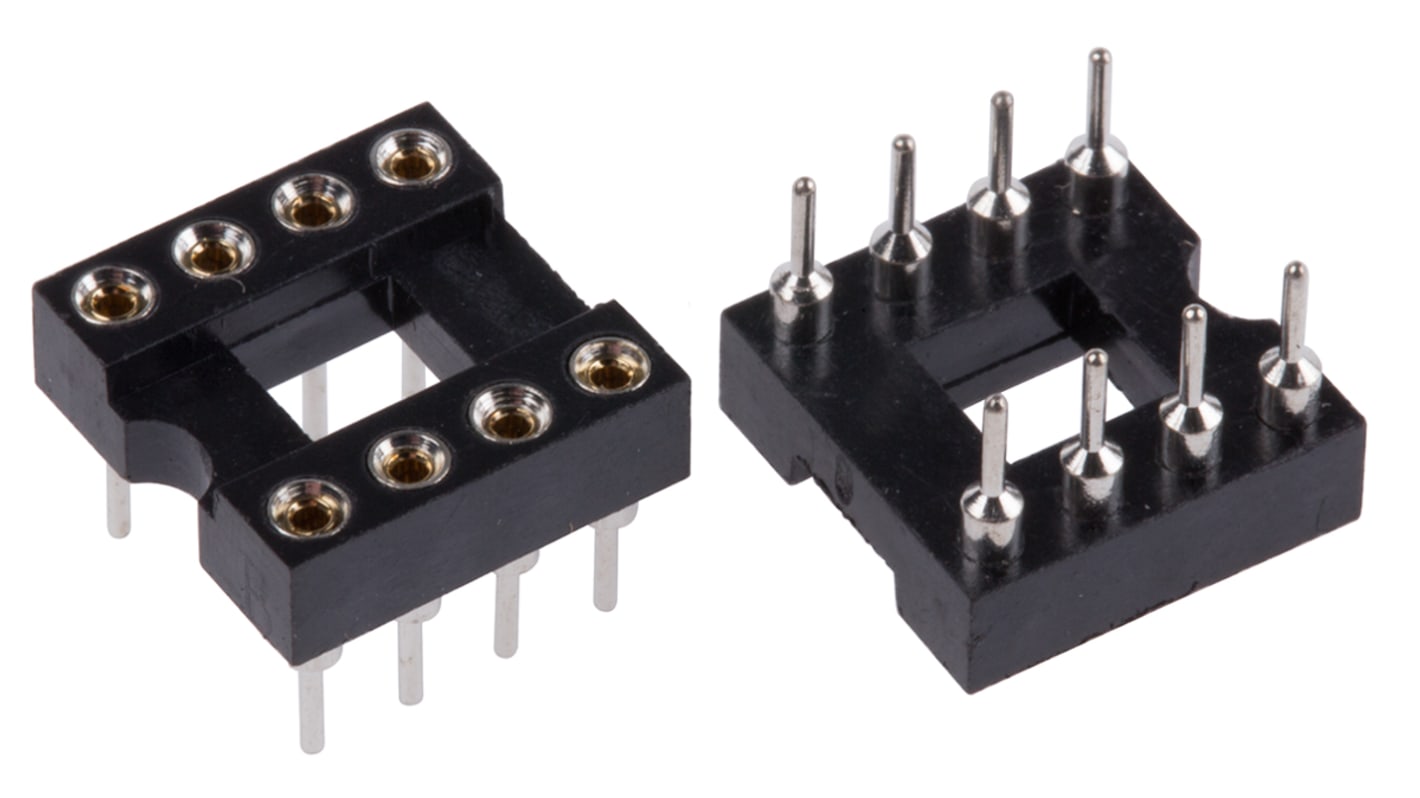

Winslow 2.54mm Pitch Vertical 8 Way, Through Hole Turned Pin Open Frame IC Dip Socket, 5A

  • RS Stock No. 813-115
  • Mfr. Part No. W30508TRC
  • Manufacturer Winslow
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Turned Pin, DIP Sockets

Winslow brings you a series of high quality machined DIP sockets. They are an open frame type of socket and are made from a PBT housing for reliability. The contacts are gold over nickel-plated (0.3μm) with beryllium-copper inner contact with a tin-plated brass outer shell. They are rated up to 1000 insertions.


These IC DIP sockets are brilliant use for non-permanent development work, they will allow you to debug your system before any permanent soldering takes place.

Low profile high-quality machined contact DIP sockets comprising a four-finger (0.3μm)gold over nickel-plated beryllium-copper inner contact with a tin-plated brass outer shell.
Temperature Range: -55°C to +125°C
Insertions: 1000

Need more DIP sockets?

813-109 6 way turned, 0.3in pitch
813-115 8 way turned, 0.3in pitch
813-121 14 way turned, 0.3in pitch
813-137 16 way turned, 0.3in pitch
813-143 18 way turned, 0.3in pitch
813-159 20 way turned, 0.3in pitch
813-165 22 way turned, 0.4in pitch
801-780
24 way turned, 0.3in pitch
813-171 24 way turned, 0.4in pitch
801-803 32 way turned, 0.6in pitch
813-200 64 way turned, 0.9in pitch

Specifications
Attribute Value
Number of Contacts 8
Mounting Type Through Hole
Pin Type Turned
Pitch 2.54mm
Row Width 7.62mm
Frame Type Open Frame
Termination Method Solder
Contact Plating Gold, Tin
Current Rating 5A
Orientation Vertical
Length 10.08mm
Width 4.6mm
Depth 10.14mm
Dimensions 10.08 x 4.6 x 10.14mm
Housing Material PBT
Maximum Operating Temperature +150°C
Contact Material Beryllium Copper
Minimum Operating Temperature -65°C
