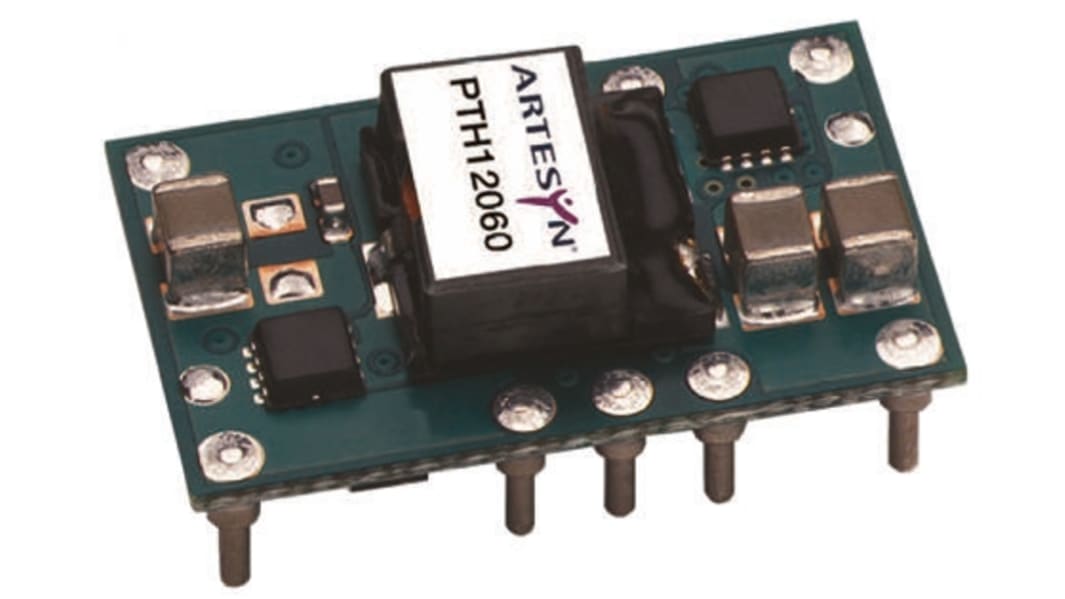

Texas Instruments PTH12060WAH, DC-DC Power Supply Module 10-Pin, DIP Module

RS Stock No.:: 162-5860
Mfr. Part No.:: PTH12060WAH
Brand:: Texas Instruments

Texas Instruments PTH12060WAH, DC-DC Power Supply Module 10-Pin, DIP Module

This image is representative of the product range

Available for back order.

Added

Price (ex. GST) Each (In a Tube of 36)

$25.33

(exc. GST)

$27.86

(inc. GST)

Units	Per unit	Per Tube*
36 +	$25.33	$911.88
*price indicative

RS Stock No.:: 162-5860
Mfr. Part No.:: PTH12060WAH
Brand:: Texas Instruments

Technical data sheets

ESD Control Selection Guide V1

Legislation and Compliance

Product Details

Non-Isolated Step-Down (Buck) Power Modules, PTH Series, Texas Instruments

Texas Instruments DC-to-DC Converter Non-Isolated Step-Down Power Modules with adjustable output voltage.

Non-Isolated Power Modules, Texas Instruments

Non-Isolated Power Modules are supporting designs which require superior EMI protection and thermal performance, high output current, high output voltage and more. The family of SIMPLE SWITCHER® power modules provides an all-in-one power solution to meet extreme operating conditions or simply a standard feature set, in a small, easy-to-use package.

Integrated shielded inductor
Precision enable, soft-start, and tracking for sequencing
Best-in-class thermal performance
Pin-to-pin compatible modules for different load currents
Easy-to-use packaging
Passes EN55022 (CISPR22) Class B Radiated and Conducted EMI Standard

Specifications

Attribute	Value
Number of Outputs	1
Mounting Type	Through Hole
Package Type	DIP Module
Pin Count	10
Dimensions	25.27 x 15.75 x 8.75mm
Height	8.75mm
Length	25.27mm
Maximum Operating Temperature	+85 °C
Width	15.75mm
Minimum Operating Temperature	-40 °C
