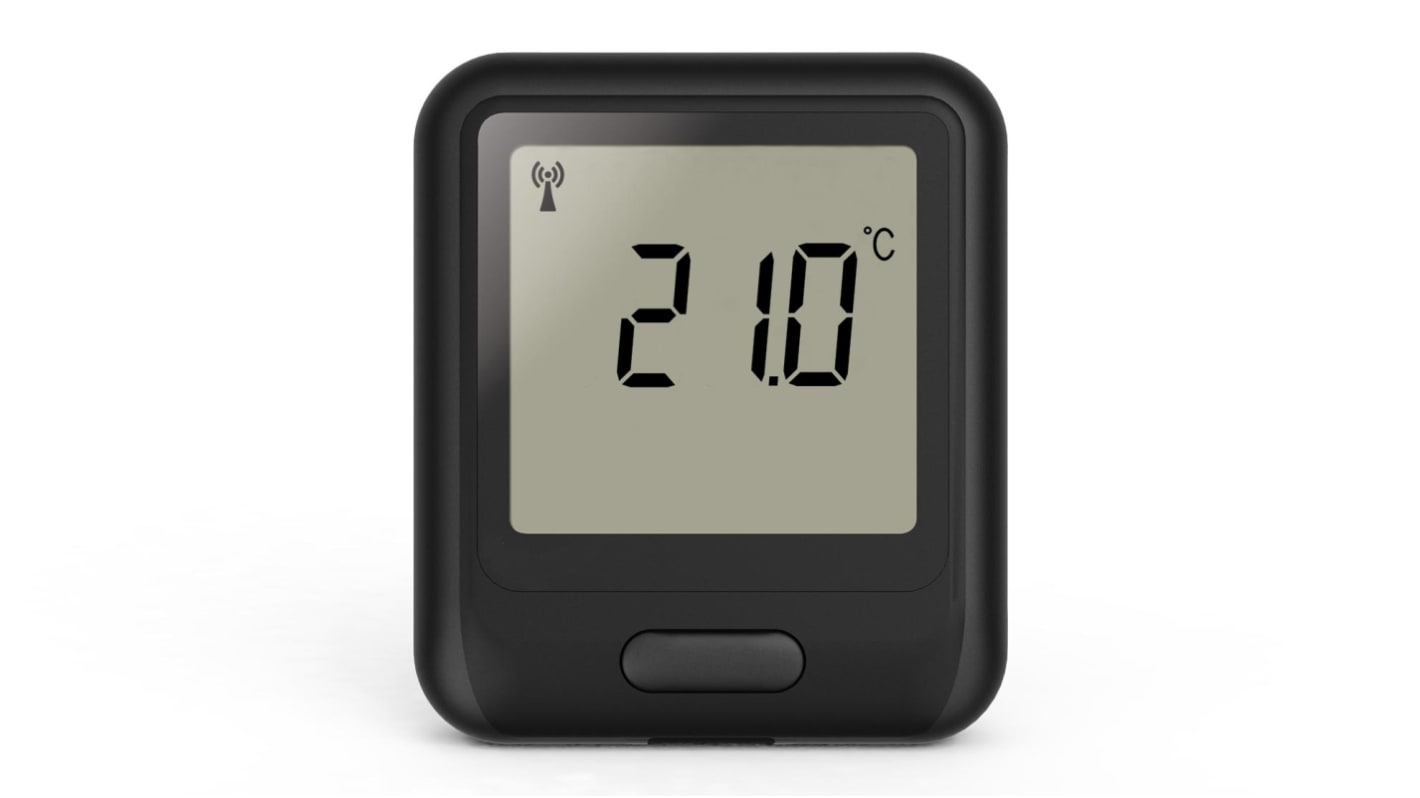

Corintech EL-WiFi-T Temperature Data Logger, Maximum Voltage Measurement 5.5V dc, USB / WiFi, Battery Powered

  • RS Stock No. 775-1077
  • Mfr. Part No. WIFI-T
  • Manufacturer Corintech
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Corintech FilesThruTheAir WiFi-T Data Logger

The FilesThruTheAirTM WiFi-T data logger measures the temperature of the environment in which it’s situated. Live data is streamed wirelessly over any WiFi network and stored for viewing on a PC or the FilesThruTheAirTM Cloud. The WiFi-T is suitable for various industries including; medical, food and drink, logistics, manufacturing, storage, museums and heritage, site management, horticulture and agriculture, IT, education and many more.
FilesThruTheAirTM WiFi sensors have a customisable sensor name, °C/°F options, sample rate (10 seconds to 12 hours) and high / low alarms. They are easily set-up and configured using free software. Once set-up is completed, you can remotely change settings, as well as view and graph data using either the PC software or the FilesThruTheAirTM Cloud.
The LCD includes several features including Max and Min readings, and an indicator for low battery, WiFi connection and signal strength. The WiFi-T runs from a rechargeable lithium polymer battery or alternatively can be permanently powered using a USB wall adapter.
FilesThruTheAir CloudTM
The FilesThruTheAirTM Cloud makes data universally accessible from any internet enabled device. It showcases impressive new features ideal for remote monitoring including; email alerts, online data storage, multiple user options for differing levels of employee responsibility, and multiple site options for organisations with devices in different locations. Other features include data analysis in graphical and tabular form, exporting and printing, event logs and a device audit trail.

Built in temperature sensor with WiFi capability and integrated display
Temperature selection in °C or °F
Operating range from -20 to +60 °C (-4 to +140 °F)
Configurable high and low alarms with indicator
Wireless connectivity to PC via WiFi
Max & Min readings
View and analyse multiple sensors using the PC application, including immediate graphing of historic data
802.11b compliant
Protection rating IP55
Rechargeable internal lithium polymer battery
Fully featured LCD segment display
Low battery indicator
WiFi connection indicator
USB port used for recharging

Note

A FilesThruTheAirTM Cloud account is easy to create and once set-up can be expanded as your requirements grow.

Supplied with

Wall bracket, Micro USB lead

Specifications
Attribute Value
Measurement Parameters Temperature
Sensor Type Internal Thermistor
Number of Input Channels 1
Interface Type USB / WiFi
Maximum Voltage Measurement 5.5V dc
Maximum Temperature Measurement +60 °C
Power Source Battery
Best Temperature Measurement Accuracy ± 0.5
IP Rating IP55
Minimum Operating Temperature -20°C
Maximum Operating Temperature +60°C
Display Type LCD
Alarm Yes
Includes Temperature Sensor, Wall Bracket
Dimensions 82 x 70 x 23mm
Battery Life Up to 6 Months
Number of Readings Per Channel 250000
Battery Type Lithium Polymer
Temperature Measurement Resolution 0.1°C
4 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 160.51
(exc. GST)
$ 176.56
(inc. GST)
units
Per unit
1 +
$160.51
