Chauvin Arnoux L452 Current, Voltage Data Logger, Maximum Voltage Measurement 10V dc

Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): FR
Product Details

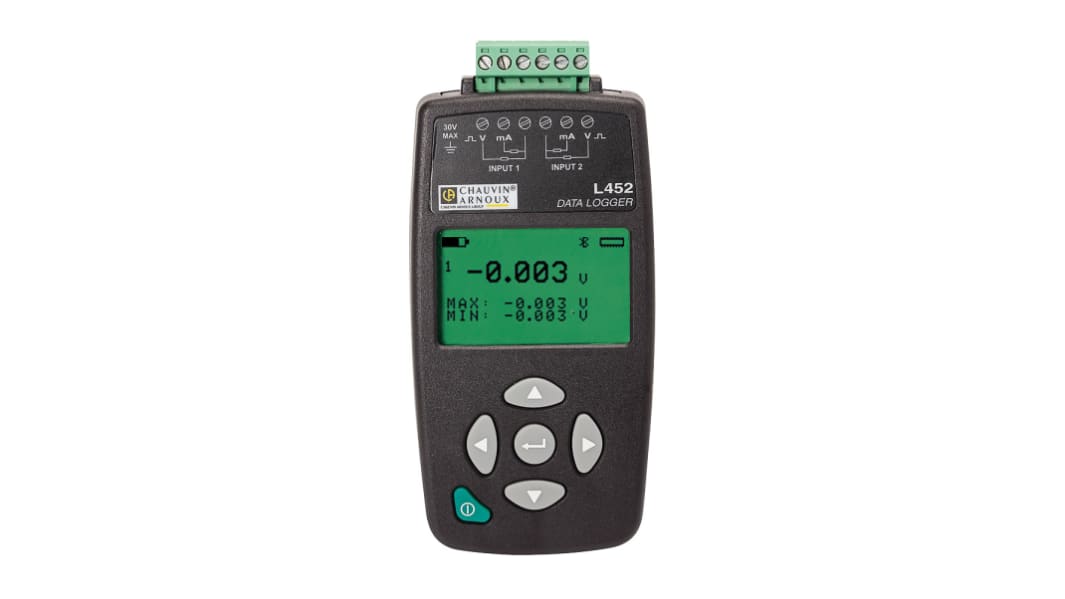

L452 2-Channel Data Logger

L452 2-channel data logger is ideal for your industrial process applications, such as measurement, dosing or environmental monitoring. The L452 is equipped with 2 inputs. It allows you to connect various types of sensors to the input to record varied data, 4 mA → 20 mA modules and 0 V → 10 V modules. These modules can also be used to record various data such as:- temperature, humidity and air speed.

For each of the channels, a real-time measurement is displayed on the LCD screen. The L452 communicates via a USB input and the Bluetooth function for configuration and data transfer onto a PC. Simple, ergonomic design makes it easy to use. Alarms can be set on the various measurements. In counter-mode, it displays the measurement results in the unit selected (Wh, m & s). It operates on rechargeable batteries or the mains supply.

Current and voltage logger (4 mA → 20 mA & 0 V → 10 V)
Event counter
Dry contact closure
Logical level detection
IP42 (IP20 terminal)
LCD Display

Supplied with

L452 Logger, μUSB Power Supply Cable, CD-ROM Containing the Datalogger Transfer Software

Chauvin Arnoux

Specifications
Attribute Value
Measurement Parameters Current, Voltage
Number of Input Channels 2
Maximum Voltage Measurement 10V dc
Power Source Battery
IP Rating IP20, IP42
Minimum Operating Temperature 0°C
Maximum Operating Temperature +50°C
Maximum Current Measurement 20mA dc
Display Type LCD
Best Voltage Measurement Accuracy 0.5 %
Alarm Yes
Battery Type Rechargeable Ni-MH
Battery Life Up to 270 days
Includes CD-ROM Containing the Datalogger Transfer Software, L452 Logger, μUSB Power Supply Cable
Best Current Measurement Accuracy 0.25 %
Dimensions 125 x 65.5 x 32.4mm
Current Measurement Resolution 0.01 mA
10 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 794.90
(exc. GST)
$ 874.39
(inc. GST)
units
Per unit
1 +
$794.90
