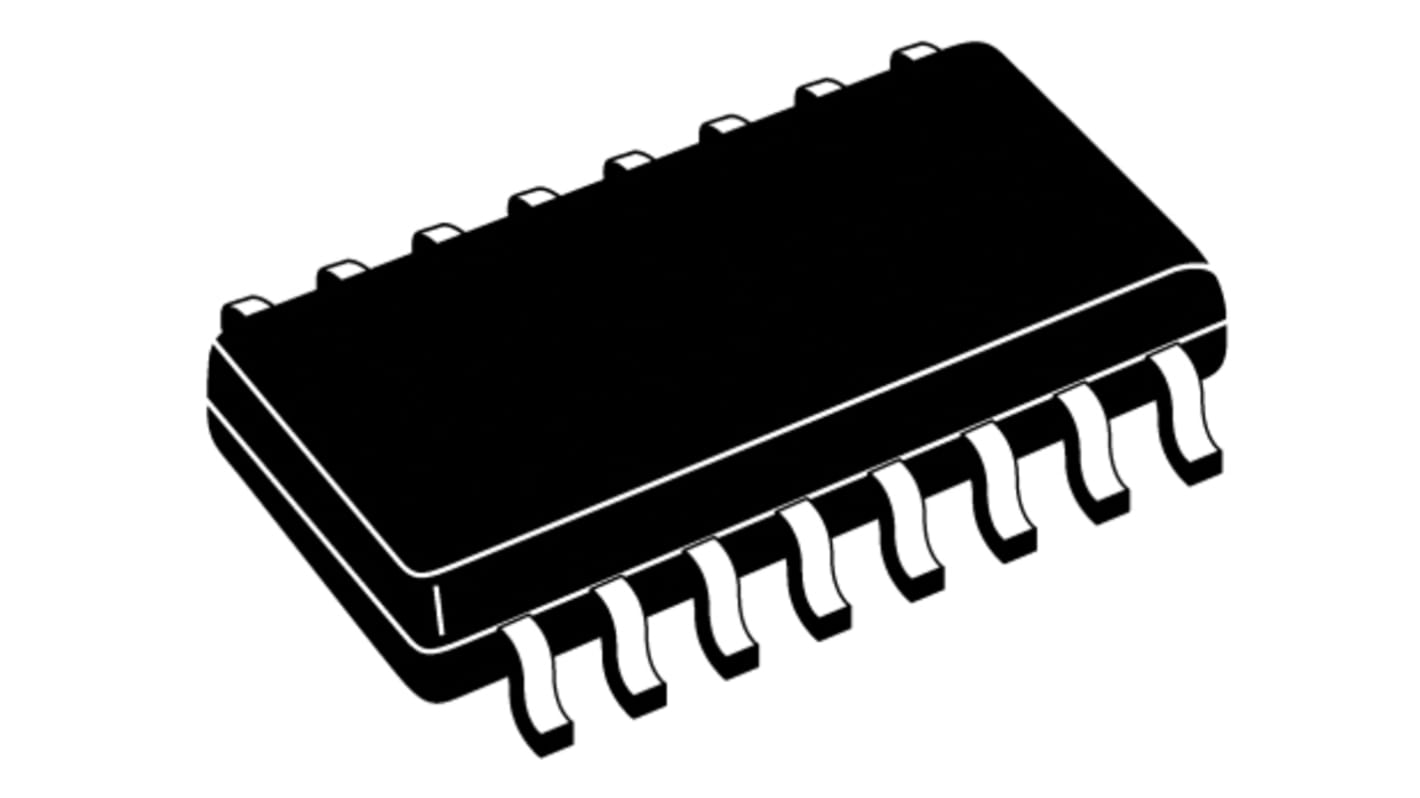

STMicroelectronics ULN2003D1013TR, 7-element NPN Darlington Pair, 500 mA 50 V HFE:1000, 16-Pin SOIC

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Darlington Transistor Arrays, STMicroelectronics

Darlington transistor power drivers are high-voltage, high-current switch arrays containing multiple open-collector Darlington pairs and integral suppression diodes for inductive loads. The high current rating of each output is 500 mA or higher. The inputs are pinned opposite the outputs in the IC package to simplify the application board layout. The interface is standard logic level for TTL or CMOS.

Darlington Transistor Drivers

Specifications
Attribute Value
Transistor Type NPN
Maximum Continuous Collector Current 500 mA
Maximum Collector Emitter Voltage 50 V
Package Type SOIC
Mounting Type Surface Mount
Pin Count 16
Transistor Configuration Common Emitter
Number of Elements per Chip 7
Minimum DC Current Gain 1000
Maximum Collector Emitter Saturation Voltage 1.6 V
Dimensions 10 x 4 x 1.65mm
Width 4mm
Maximum Operating Temperature +85 °C
Minimum Operating Temperature -20 °C
Length 10mm
Height 1.65mm
17500 In stock for delivery within 5 working day(s)
Price (ex. GST) Each (On a Reel of 2500)
$ 0.185
(exc. GST)
$ 0.203
(inc. GST)
units
Per unit
Per Reel*
2500 - 2500
$0.185
$462.50
5000 - 10000
$0.183
$457.50
12500 +
$0.176
$440.00
*price indicative
