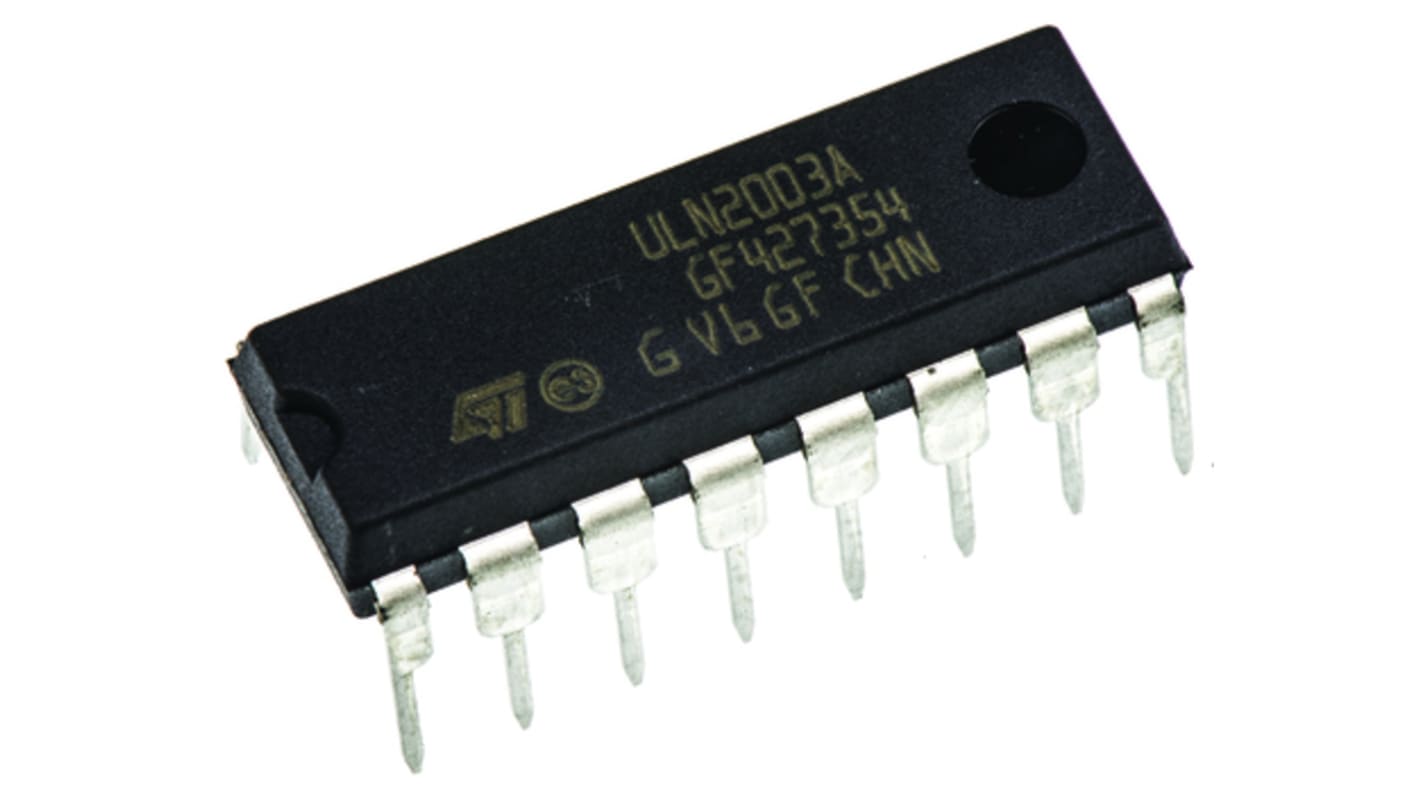

STMicroelectronics ULQ2003A, 7-element NPN Darlington Pair, 500 mA 50 V HFE:1000 @ 350 mA @ 2 V, 16-Pin PDIP

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Darlington Transistor Arrays, STMicroelectronics

Darlington transistor power drivers are high-voltage, high-current switch arrays containing multiple open-collector Darlington pairs and integral suppression diodes for inductive loads. The high current rating of each output is 500 mA or higher. The inputs are pinned opposite the outputs in the IC package to simplify the application board layout. The interface is standard logic level for TTL or CMOS.

Darlington Transistor Drivers

Specifications
Attribute Value
Transistor Type NPN
Maximum Continuous Collector Current 500 mA
Maximum Collector Emitter Voltage 50 V
Maximum Emitter Base Voltage 30 V
Package Type PDIP
Mounting Type Through Hole
Pin Count 16
Transistor Configuration Common Emitter
Number of Elements per Chip 7
Minimum DC Current Gain 1000 @ 350 mA @ 2 V
Maximum Collector Base Voltage 30 V
Maximum Collector Emitter Saturation Voltage 1.6 V
Dimensions 20 x 7.1 x 4.59mm
Length 20mm
Height 4.59mm
Maximum Operating Temperature +105 °C
Minimum Operating Temperature -40 °C
Base Current 25mA
Width 7.1mm
525 In stock for delivery within 5 working day(s)
Price (ex. GST) Each (In a Tube of 25)
$ 0.518
(exc. GST)
$ 0.57
(inc. GST)
units
Per unit
Per Tube*
25 +
$0.518
$12.95
*price indicative
