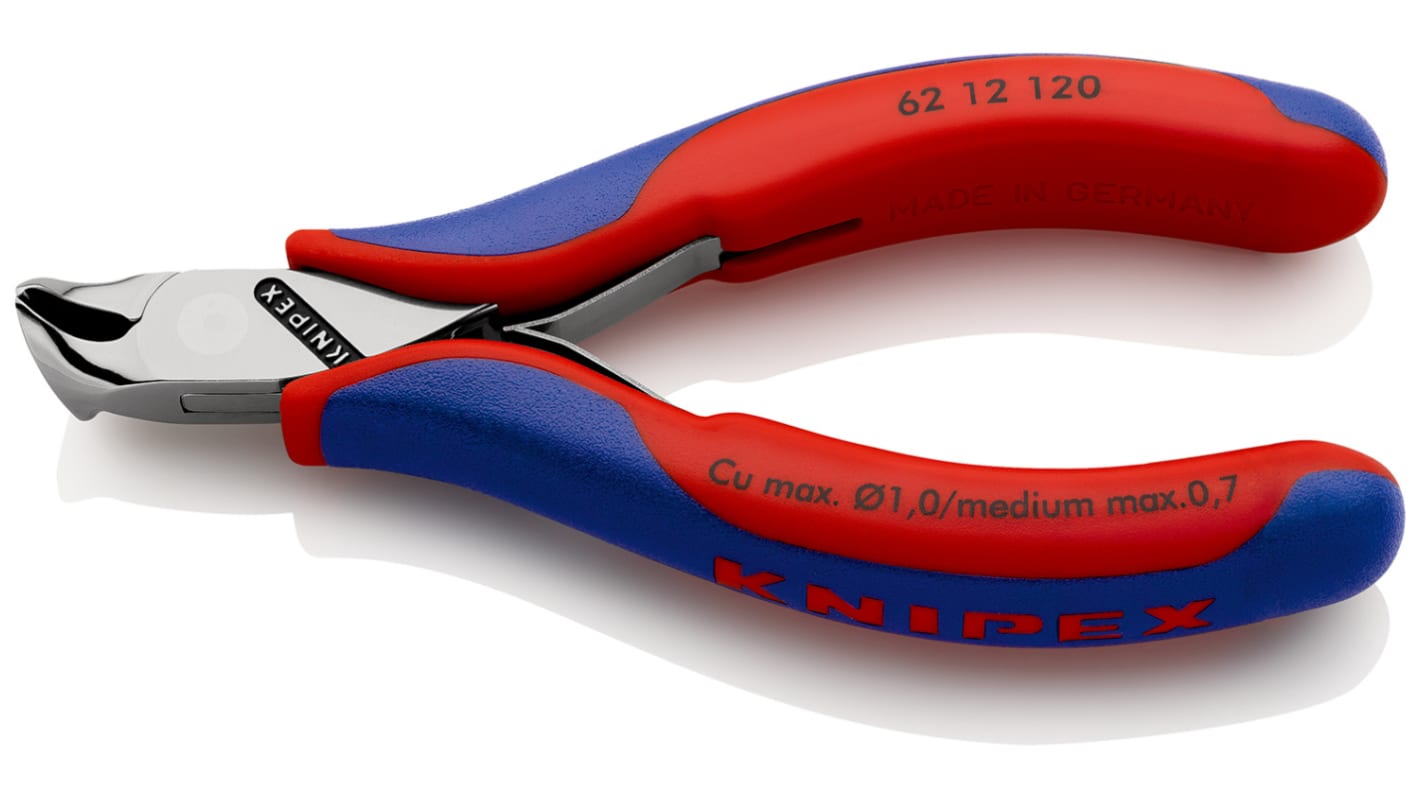

Knipex 120 mm Cutters, Tool Steel

  • RS Stock No. 601-0665
  • Mfr. Part No. 62 12 120
  • Manufacturer Knipex
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

Electronic end cutter

Tools with precision box joint and captive, low-friction double spring
Special tool steel, oil-hardened and tempered
Mirror polished with excellent corrosion protection
Cutting edge hardness 56 HRC
Dual component handles for fatigue-free, sensitive work

Manufacturer no. Head shape Length
(mm)
Copper wire
(mm)
Fig.
62 12 120 Oblique, without cutting edges 120 0.3 to 1.0 3
64 02 115 With cutting edges 115 <2.0 1
64 12 115 Small cutting edges 115 <2.0 1
64 22 115 Mini, with small cutting edges 115 0.8 2
64 32 120 Oblique 15°, with small cutting edges 120 1.5 3
64 42 115 Oblique 27°, with small cutting edges 115 1.5 3
64 52 115 Oblique 65°, without cutting edges 115 1.3 3
64 62 120 Oblique 65°, with small cutting edges 120 0.6 4

Standards

  DIN ISO 9654

Specifications
Attribute Value
Type Flush
Overall Length 120 mm
Jaw Length 10mm
Material Tool Steel
Maximum Cutting Capacity 1mm
Cutting Capacity Soft Wire 0.3 → 1mm
Cutting Capacity Medium Hard Wire 0.7mm
4 : Next working day (AU stock)
16 : 5 working days (Global stock)
Price (ex. GST) Each
$ 69.08
(exc. GST)
$ 75.99
(inc. GST)
units
Per unit
1 +
$69.08
