Knipex VDE/1000V Insulated 200 mm Flush Cutters

  • RS Stock No. 222-2606
  • Mfr. Part No. 95 16 200
  • Manufacturer Knipex
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

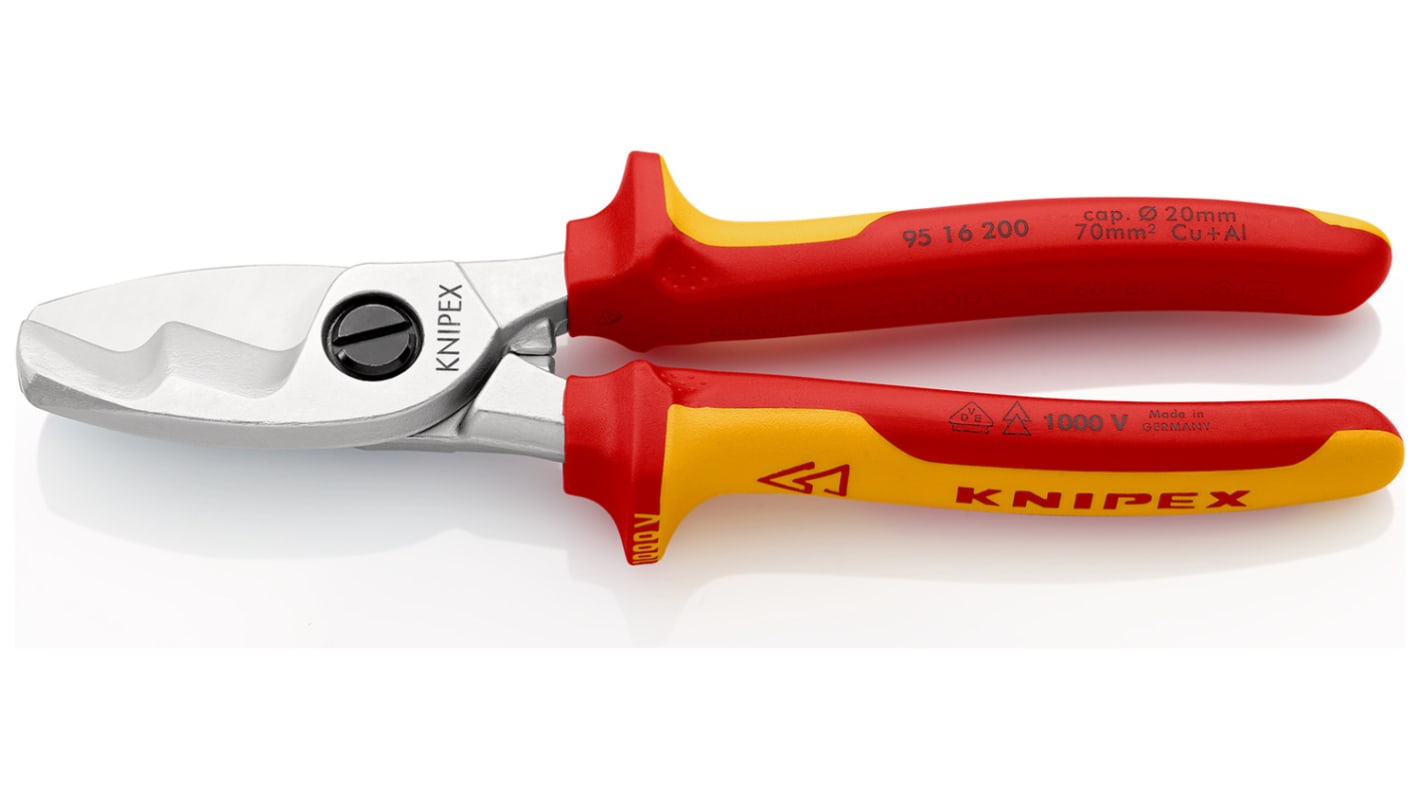

VDE Twin Edge Cable Shears

1000V VDE-tested twin-edge cutters for copper and aluminium cables, single and multiple conductors. Separate initial and final cut positions on blades allows two-stage cutting of cables up to 20mm in diameter.

Precision ground, hardened dual-cut blades
Clean and smooth cutting action without crushing or deformation
Easy cutting with one-hand operation, with guard
Adjustable screw joint, self-locking
Forged special tool steel construction, oil-hardened and tempered
Head chrome plated, handles insulated with two-colour dual-component sleeves
Reduced hand-force due to new blade geometry and good leverage ratio
Cutting capacity 20 mm dia. / 70 mm²

Note

Not suitable for steel wire and hard drawn copper conductors.

Approvals

VDE

Note

Not suitable for steel wire and hard drawn copper conductors

Standards

VDE

Specifications
Attribute Value
Type Flush Cutters
Overall Length 200 mm
VDE/1000V Approved Yes
Maximum Cutting Capacity 20.0mm
4 : Next working day (AU stock)
78 : 5 working days (Global stock)
Price (ex. GST) Each
$ 148.06
(exc. GST)
$ 162.87
(inc. GST)
units
Per unit
1 +
$148.06
