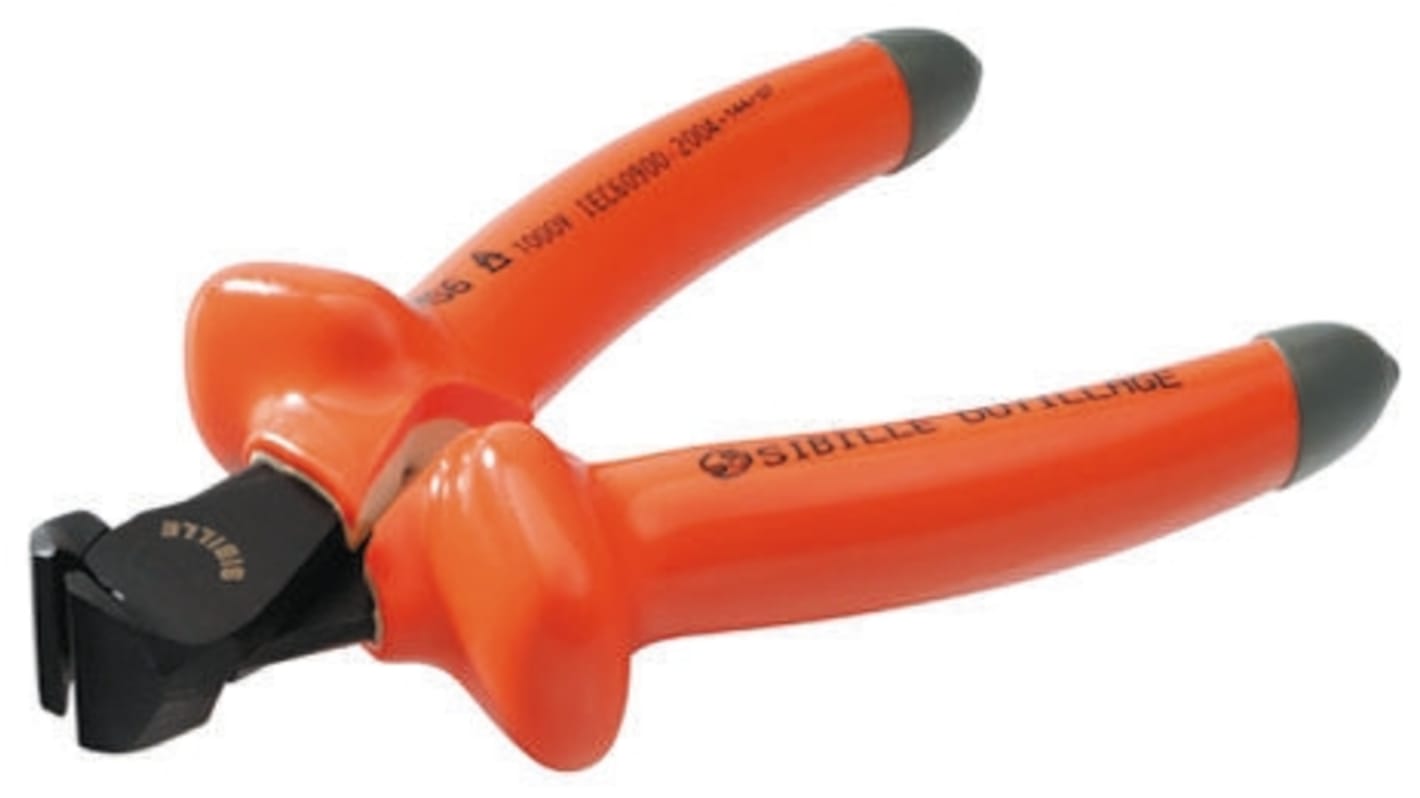

Penta 170 mm End Nippers
- RS Stock No.:
- 539-643
- Mfr. Part No.:
- MS6RS-170
- Brand:
- Penta
On back order for despatch 31/05/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each
$91.45
(exc. GST)
$100.59
(inc. GST)
| Units | Per unit |
| 1 + | $91.45 |
- RS Stock No.:
- 539-643
- Mfr. Part No.:
- MS6RS-170
- Brand:
- Penta
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- FR
Product Details
Insulated Cutters
Insulated, tested and marked in accordance with the requirements of the UK Electricity Supply Industry. The insulation Excellent mechanical and electrical properties (over temperature range -20°C to +70°C) and are tested to a minimum of 10000 V, 50 Hz for 3 mins at various stages of manufacture. To ensure visual safety should the insulation become damaged, the final coat is ’orange’ and preceding coats are ’white’.
Impact resistant, fire retardant and resistant to most acids
Guaranteed up to 1000V
Guaranteed up to 1000V
Diagonal Cutters: Suitable for hard and soft wire
Cable Cutters: Rockwell hardness and safety lock. Cutting Capacity 55mm²
End cutter: Suitable for piano wire (Cutting Capacity 2mm)
Cable Cutters: Rockwell hardness and safety lock. Cutting Capacity 55mm²
End cutter: Suitable for piano wire (Cutting Capacity 2mm)
White Unbreakable PVC (Primary Coating); Dipped Orange PVC (Final Coating); Nylon Insulation (Reinforced Ends)
Standards
IEC900, EN 60900, ESI 26/3
Standards
IEC900, EN 60900, ESI 26/3
Specifications
Attribute | Value |
|---|---|
| Overall Length | 170 mm |
