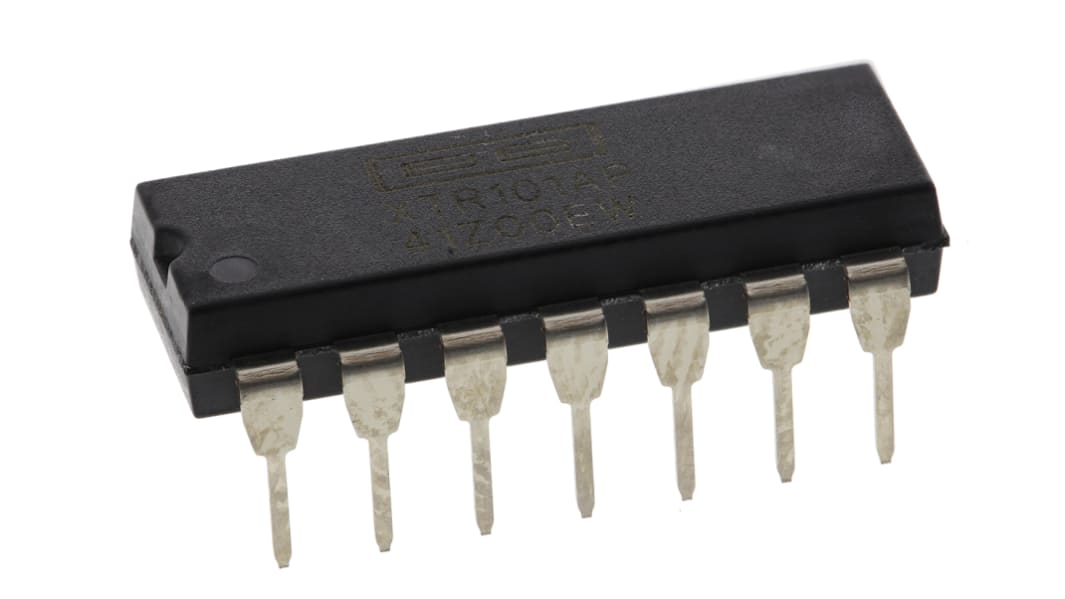

XTR101AP Texas Instruments, 4 20 mA Current Loop Transmitter 14-Pin PDIP

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

4mA-to-20mA Current-Loop, Texas Instruments

4mA-to-20mA Current-Loop Communication

Current loop systems are used in electrically noisy industrial environments for sending analogue sensor data over long distances of 300m or more.

Specifications
Attribute Value
Quiescent Current 2mA
Output Current 4 20 mA
Mounting Type Through Hole
Package Type PDIP
Pin Count 14
Dimensions 19.3 x 6.35 x 4.57mm
Height 4.57mm
Length 19.3mm
Width 6.35mm
Maximum Operating Supply Voltage 40 V
Maximum Operating Temperature +85 °C
Minimum Operating Temperature -40 °C
On back order for despatch 27/07/2020, delivery within 5 working days from despatch date.
Price (ex. GST) Each
$ 32.25
(exc. GST)
$ 35.47
(inc. GST)
units
Per unit
1 - 9
$32.25
10 - 49
$32.20
50 - 99
$31.18
100 - 249
$29.91
250 +
$29.51
