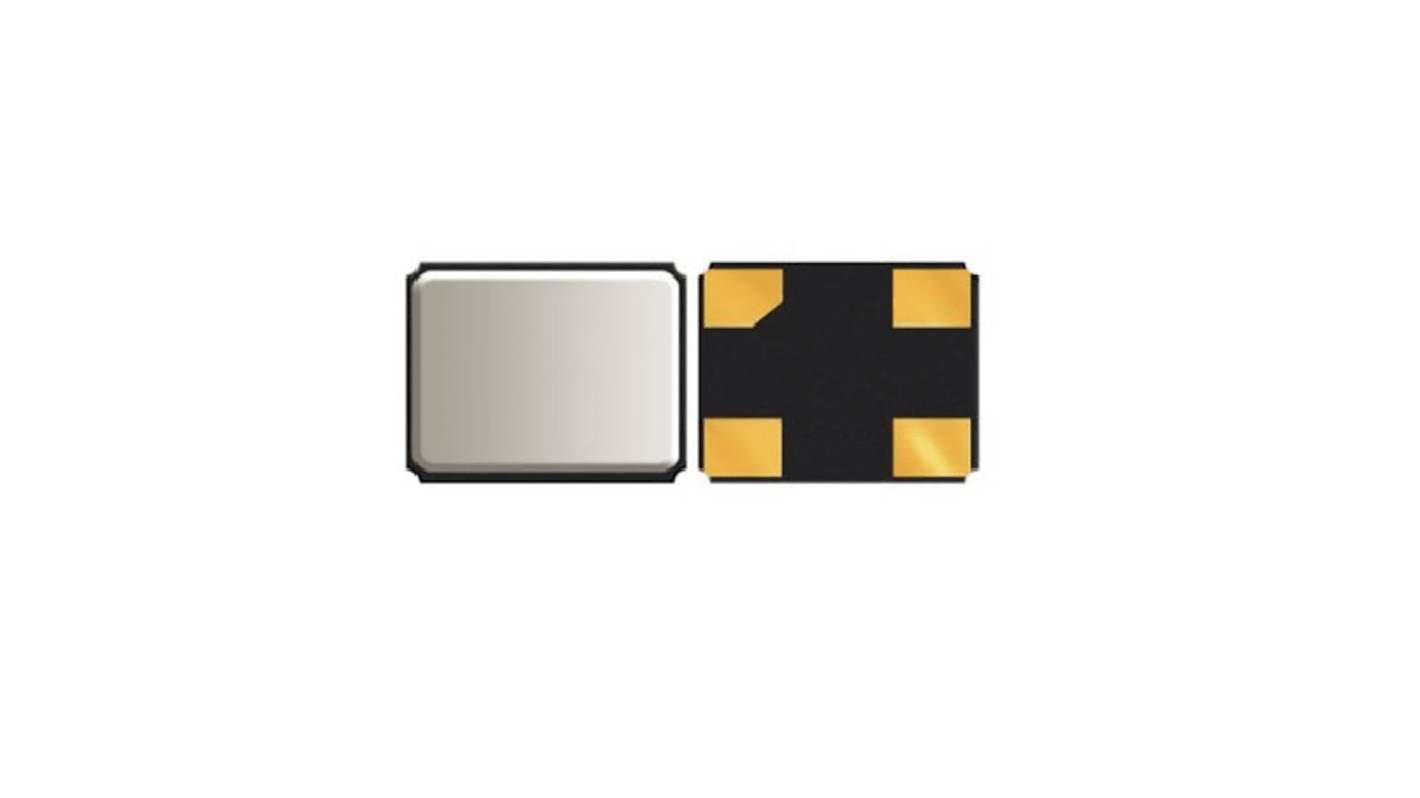

Abracon 16MHz Crystal ±10ppm ABM11W 4-Pin 2.0 x 1.6 x 0.5mm
- RS Stock No.:
- 240-3433
- Mfr. Part No.:
- ABM11W-16.0000MHZ-8-D1X-T3
- Brand:
- Abracon
6000 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (On a Reel of 3000)
$0.659
(exc. GST)
$0.725
(inc. GST)
| Units | Per unit | Per Reel* |
| 3000 - 12000 | $0.659 | $1,977.00 |
| 15000 + | $0.593 | $1,779.00 |
| *price indicative | ||
- RS Stock No.:
- 240-3433
- Mfr. Part No.:
- ABM11W-16.0000MHZ-8-D1X-T3
- Brand:
- Abracon
Technical data sheets
Legislation and Compliance
Product Details
The Abracon ABM11W series is low profile quartz crystal are ideally suited for height constrained designs and can be used in applications like Bluetooth/Bluetooth low energy, wireless modules, ultra low power MCU etc.
Optimized for energy saving wearables and IoT applications
Plated at exceptionally low plating capacitance, as low as 4pF, with optimized ESR
0.5 mm max height ideally suited for height constrained designs
Seam sealed for long term reliability
Plated at exceptionally low plating capacitance, as low as 4pF, with optimized ESR
0.5 mm max height ideally suited for height constrained designs
Seam sealed for long term reliability
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Standard Frequency | 16MHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 8pF |
| Package Type | ABM11W |
| Pin Count | 4 |
| Dimensions | 2.0 x 1.6 x 0.5mm |
| Frequency Tolerance | ±10ppm |
