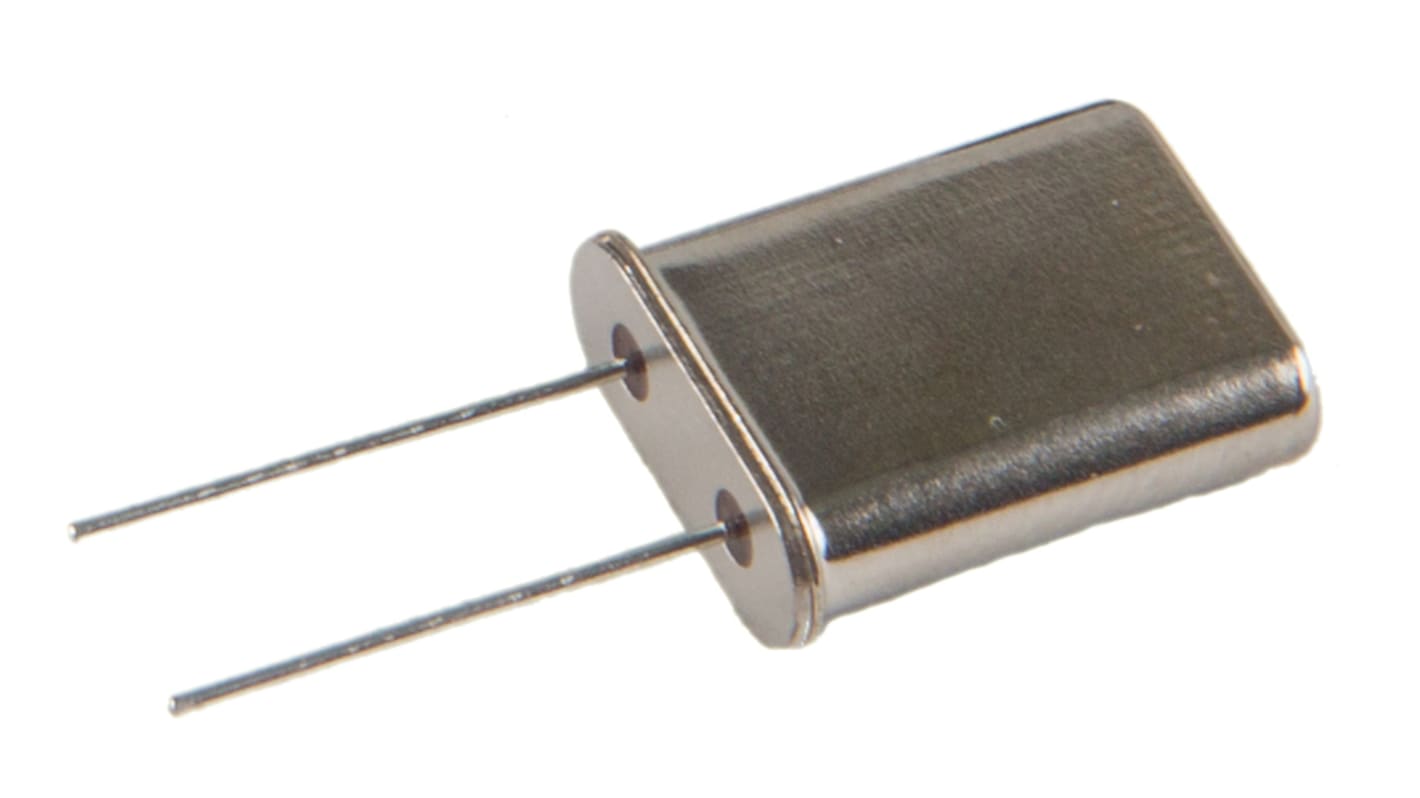

RS PRO 16MHz Crystal ±50ppm 2-Pin 11.05 x 4.65 x 13.49mm
- RS Stock No.:
- 144-1028
- Brand:
- RS PRO
540 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Pack of 20)
$0.473
(exc. GST)
$0.52
(inc. GST)
| Units | Per unit | Per Pack* |
| 20 - 80 | $0.473 | $9.46 |
| 100 - 180 | $0.454 | $9.08 |
| 200 - 280 | $0.435 | $8.70 |
| 300 + | $0.426 | $8.52 |
| *price indicative | ||
- RS Stock No.:
- 144-1028
- Brand:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
RS Pro AA Microprocessor Crystals, 13.5mm x 4.6mm
From RS Pro, these through hole microprocessor crystal units offer a wide frequency range within an industry standard package.
Product Applications:
These microprocessor crystal units are suitable for clock and timing applications and act as an excellent clock signal generator for CPUs. They are also suitable for communication and networking applications.
Specifications
Attribute | Value |
|---|---|
| Standard Frequency | 16MHz |
| Mounting Type | Through Hole |
| Load Capacitance | 18pF |
| Pin Count | 2 |
| Length | 11.05mm |
| Width | 4.65mm |
| Height | 13.49mm |
| Dimensions | 11.05 x 4.65 x 13.49mm |
| Frequency Tolerance | ±50ppm |
| Frequency Stability | ±100ppm |
| Series Resistance | 25Ω |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | 70°C |
