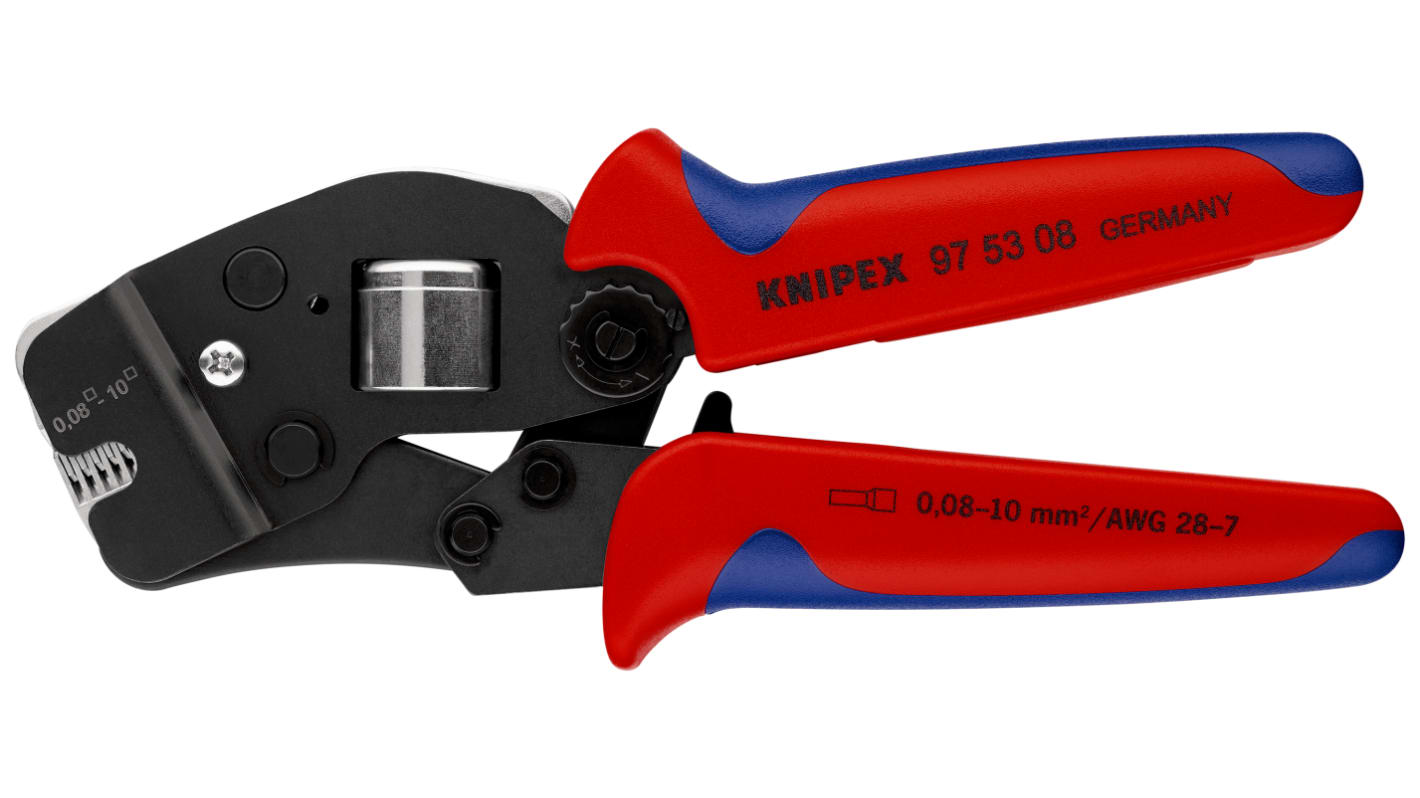

Knipex Crimping Tool, 190 mm Overall
- RS Stock No.:
- 336-8163
- Mfr. Part No.:
- 97 53 08
- Brand:
- Knipex
4 In Global stock for delivery within 10 working day(s)
14 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$403.57
(exc. GST)
$443.93
(inc. GST)
| Units | Per unit |
| 1 - 4 | $403.57 |
| 5 + | $363.22 |
- RS Stock No.:
- 336-8163
- Mfr. Part No.:
- 97 53 08
- Brand:
- Knipex
Technical data sheets
Legislation and Compliance
Non Compliant
- COO (Country of Origin):
- DE
Product Details
Automatic crimping pliers for wire end ferrules from 0.08 to 10mm² with front access
● Compression from 0.08 - 10.0 mm² in one profile
● Wire ferrules up to 2.5 mm² can also be loaded parallel from the side
● Suitable in particular for all twin wire ferrules up to 2 x 4 mm² or 2 x AWG 12
● For crimping wire ferrules according to DIN 46228 parts 1 + 4
● Self-adjusting adaptation to the desired wire ferrule size: no wrong crimps caused by using the wrong die
● Frontal insertion of the wire ferrules into the pliers
● Repetitive, high crimping quality due to integral lock (self-releasing mechanism)
● Tools have been set precisely (calibrated) in the factory
● Optimum transmission of force thanks to toggle lever for fatigue reduced operation
● Handy shape and low weight provide high operation comfort
● Capacities mm² / AWG : 0.08 to 10 mm². AWG 28 to 7
● Material : special grade chrome vanadium electrical steel, oil quenched
● Wire ferrules up to 2.5 mm² can also be loaded parallel from the side
● Suitable in particular for all twin wire ferrules up to 2 x 4 mm² or 2 x AWG 12
● For crimping wire ferrules according to DIN 46228 parts 1 + 4
● Self-adjusting adaptation to the desired wire ferrule size: no wrong crimps caused by using the wrong die
● Frontal insertion of the wire ferrules into the pliers
● Repetitive, high crimping quality due to integral lock (self-releasing mechanism)
● Tools have been set precisely (calibrated) in the factory
● Optimum transmission of force thanks to toggle lever for fatigue reduced operation
● Handy shape and low weight provide high operation comfort
● Capacities mm² / AWG : 0.08 to 10 mm². AWG 28 to 7
● Material : special grade chrome vanadium electrical steel, oil quenched
Specifications
Attribute | Value |
|---|---|
| Overall Length | 190 mm |
